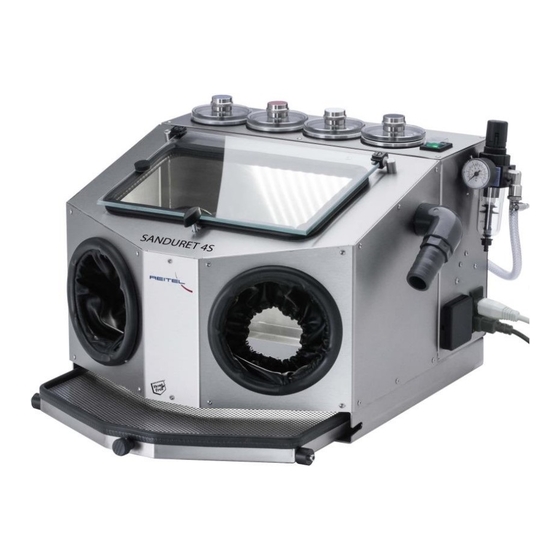

- Page 1 Operating Instructions SANDURET 2 / 3 / 4 Fig. with optional drawer REITEL Feinwerktechnik GmbH Senfdamm 20 | 49152 Bad Essen Phone: +49(0)5472-9432-0 | Fax: +49(0)5472-9432-40 www.reitel.com | info@reitel.com...
- Page 2 Dear Customer! The Microfine jet blasters SANDURET offer optimum surface quality for blasting different materials with all commercial abrasives from 25 to 250 microns. The device can be used for cleaning, buffing and polishing as well as for removing oxide layers from different surfaces. The special blasting principle and the heated chambers offer a constant flow of the abrasive that result in a smooth surface being created.
-
Page 3: Table Of Contents
INDEX TECHNICAL DESCRIPTION ..................4 ....................... 4 ASIC QUIPMENT ....................4 PECIAL CCESSORIES ....................5 EVICE ESCRIPTION ......................8 ECHNICAL ..............9 HAMBER AND OZZLE ONFIGURATION SAFETY NOTES ......................10 ...................10 ENERAL AFETY OTES ................11 PECIFIC AFETY NSTRUCTIONS INSTALLATION ......................12 ......................12 NSTALLATION ....................12 ILLING THE... -
Page 4: Technical Description
Technical Description Basic Equipment • Microfine jet blaster SANDURET 2 / 3 / 4 chambers (depending on order) • Set of carbide nozzles (depending on number of chambers, see chart on page 5) • Funnel for filling in abrasive media •... -
Page 5: Device Description
Device Description Power switch Glass pane with protective foil Sealing Suction adaptor Fuse (with spare fuse) Socket for power supply Socket for foot switch Socket for extraction unit Compressed air connection SANDURET-drawer (option) Interior light (LED) Screw for opening the glass pane Leather gauntlets Screw plug for tank Seal of the tank... - Page 6 device view (fig.: SANDURET 3S) Fig.: closed tank Fig.: open tank backside of the device lateral view...
- Page 7 rubber plug fuse funnel foot pedal abrasive chamber...
-
Page 8: Technical Data
Technical Data SANDURET Line voltage 230 V/50–60 Hz Current consumption 100 W 120 W 140 W Height/width/depth 320+160/480/440 mm Weight 17 kg 18 kg 19 kg Air consumption approx. 80 l/min. Pressure 0,5–6 bar Noise level 65 dB (A) Housing stainless steel Order-No.: 14601000... -
Page 9: Chamber And Nozzle Configuration
Chamber and Nozzle Configuration The Microfine jet blasters offer optimum surface quality for blasting corundum, aluminium oxide, glass polishing beads and combined abrasives from 25 to 250 microns. 1. chamber 2. chamber 3. chamber 4. chamber blue white black Device with 25–125 my non-existing 125–250 my... -
Page 10: Safety Notes
Safety Notes General Safety Notes • All equipment undergoes final inspection and testing before leaving our factory. However, if equipment is damaged during shipping or through any other circumstances, it must not be used in service. Please check the device regularly for damages. Damaged parts should be replaced immediately. -
Page 11: Specific Safety Instructions
Specific Safety Instructions Attention: The recommended abrasive grain sizes for the tanks have to be strictly adhered to. Never use grain sizes finer than 25 my, leading to ventilation unit blockage. The abrasive chambers may only be opened if the device isn’t under pressure. The tank lids must be positioned evenly and tightened with the tank cap screw (14) prior to starting work. -
Page 12: Installation
Installation The equipment delivered is ready for immediate use. The sealed plug can be connected directly to the mains supply 230 V/16 A. For installation please refer to chapter 2. Installation Now connect the device to the power supply by means of the plug or mains cable. Establish compressed air connection (9) (3,5–6 bar). -
Page 13: Operation
Operation Chronological run of operation Turn on the main power switch (1). The jet pressure is continuously adjustable with the pressure regulator (20) up to a max. of 6 bar (uniformly for all chambers). Choose chamber by the selector switch (28) inside the main chamber (colour identification). -
Page 14: Troubleshooting
Troubleshooting a. Abrasive might be dirty → Change Jet becomes irregular. abrasive, maybe take nozzle off and blow it through. b. Wrong nozzle → Please refer to nozzle configuration in chapter 1.3 (important for chamber 1). c. Not enough material in the chamber → re-fill abrasive. -
Page 15: Maintenance
(20) and if necessary open valve (21) to drain off water. • Regularly clean the housing with a damp cloth or with REITEL stainless steel care spray. Note Clean and protect your device at regular intervals with the REITEL stainless steel care spray (order -no.: 90405000) to remove lime, plaster and dust as well as other... -
Page 16: Warranty
Warranty We, REITEL Feinwerktechnik GmbH, offer a 1 year’s warranty beginning from the proven date of purchase. This warranty covers all defects traceable to materials, design or workmanship. The following warranty regulations are applicable: Within the warranty period Reitel Feinwerktechnik GmbH or an authorized distributor agrees at its sole option, to perform repair or replace this product at no charge covering all defects traceable to materials, design or workmanship. - Page 17 REITEL Feinwerktechnik GmH; − The warranty does not cover the cost of removal and replacement of parts and accessories, unless supplied as original equipment by REITEL Feinwerktechnik GmbH − All kind of damages occurred not directly at the device as well as consequential damages (e.g.
- Page 18 Should you need to borrow a device while your device is being repaired, please contact Messrs. REITEL or your distributor. These loans are a service for which availability cannot necessarily be guaranteed. After the warranty period, a free may be charged for loan...
-
Page 19: Disposal Regulations
Disposal Regulations According to valid laws our devices are disposed of properly according to B2B– regulations for proper disposal. Pls. contact your local dealer for information on local disposal guidelines. -
Page 20: Spare Parts List
Spare Parts List Best.- Sanduret 2 - 4 (046) Stck Ersatzteilliste / Spare parts list 03/2019 Qty. Unit Ref. Behälterdeckel farblos Stck E7930500 Transparent blast chamber cover piece Behälterknopf zum Verschließen Deckel Stck E7992600 Chamber lid locking knob piece Düse 0,6mm für 50µ... - Page 21 Sicherung 10 Amp. Stck E7049500 Fuse 10 Amp. piece Strahlgriffel Alu Ø12 x 89mm Stck E7931210 Abrasive pen, aluminium Ø12 x 89mm piece Strahlgriffel Alu komplett mit Verschraubung, ohne Düse und Markierring E7931230 Abrasive pen, completed assy Stk./ Kammer Strahlschlauch für Strahlraum, mit 2 Steckröhrchen d=8 mm pcs p.
-
Page 22: Ec-Conformity Declaration
EC-Conformity Declaration... - Page 24 We manufacture in compliance with Quality Management ISO 9001:2015 incorporating established process standards. REITEL Feinwerktechnik GmbH Senfdamm 20 | 49152 Bad Essen Phone: +49(0)5472-9432-0 | Fax: +49(0)5472-9432-40 www.reitel.com | info@reitel.com...
