  • Page 1 Operating Instructions POLYMAT REITEL Feinwerktechnik GmbH Senfdamm 20 | 49152 Bad Essen Phone: +49(0)5472-9432-0 | Fax: +49(0)5472-9432-40 www.reitel.com | info@reitel.com...
  • Page 2 Dear Customer! The POLYMAT is designed for polymerisation of common synthetic materials. The curing process is adaptable to the specific material within a temperature range up to 100°C / 212°F (120° / 248°F temperature extension optionally available), pressure up to 6 bar and time up to 120 min.
  • Page 3: Table Of Contents

    INDEX TECHNICAL DESCRIPTION ..................4 ....................... 4 ASIC QUIPMENT ....................4 PECIAL CCESSORIES ....................5 EVICE OMPONENTS ......................7 ECHNICAL SAFETY NOTES ......................8 .................... 8 ENERAL AFETY OTES ..................... 9 PECIFIC AFETY OTES INSTALLATION ......................10 ......................10 ONTROL PANEL ......................11 NSTALLATION ......................11 REPARATION...
  • Page 4: Technical Description

    Technical Description Basic Equipment • POLYMAT Polymerisation unit with pressure regulator, tap and drain hose • Grease for maintenance (see chapter 6) of the o-ring, bottle of 10 g • Swivelling lever (16) for screwing into the lid (1) •...
  • Page 5: Device Components

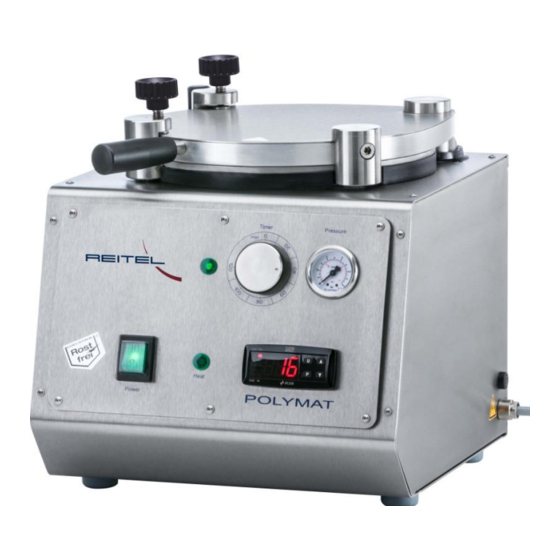

    Device Components Power switch Pressure gauge Display „pressure build-up“ Display „heating on“ Timer Digital temperatur controller Power cord Compressed air connection 10 Safety valve 11 Pressure relief valve 12 Water outlet 13 Pressure control 14 Ball valve 15 Knurled screws 16 Swivelling lever 17 Temperature sensor inside the tank 18 Temperature limiter...
  • Page 6 Digital temperature controller Rear side Lateral view Stainless steel tank...
  • Page 7: Technical Data

    Technical Data Line voltage 230 V/50-60 Hz Current consumption 1.100 W Weight 22 kg Height(+lever)/Width(+lever)/depth 330/330+290/380 mm Inner tank dimensions D/H 220/190 mm Volume Filling 0-120 min. Variable pressure 0-6 bar up to 100°C / 212°F, Option: 120°C / 248°F Temperature temp.
  • Page 8: Safety Notes

    Safety Notes General Safety Notes • All equipment undergoes final inspection and testing before leaving our factory. However, if equipment is damaged during shipping or through any other circumstances, it must not be used in service. Please check the device regularly for damages. Damaged parts should be replaced immediately.
  • Page 9: Specific Safety Notes

    Specific Safety Notes Note: • Do not open the ball valve (14) when the appliance is hot. Attach drain hose to water outlet for drainage into a basin. Don’t place the device with its back towards the room, so that the safety valve is not directed towards any persons in case of disturbance. •...
  • Page 10: Installation

    Installation The electrical equipment is ready for immediate use. The sealed plug can be connected directly to the mains supply 230 V/16 A. For installation please refer to safety notes in chapter 2. Control panel After switching on, the device performs a self-test and the display indicates „r1.5“. It flashes approx.
  • Page 11: Installation

    Installation 1. Screw the swivelling lever (16) into the lid (1). 2. Electrical connection according to specifications on the rating plate. 3. Establish compressed air connection in the range between 3-6 bar according to regulations. 4. Attach the drain hose tightly and put it into a basin. 5.
  • Page 12: Polymerisation Below 100° Celsius / 212°F

    Polymerisation below 100° Celsius / 212°F Note: The heating runs permanently. Please prevent dry run. Place object (articulator, model or others) in the stainless steel tank. Check to make sure that the o-ring fits tightly. Close the lid until it locks in place and fasten knurled screws (15) handtight.
  • Page 13: Troubleshooting

    − after pre-set time has elapsed, the green lamp goes off and pressure drops back to 0 bar (Cooling time is longer compared to polymerisation at temperatures below 100°C / 212°F.) Open the lid only when the device is not under pressure (0 bar). Remove the knurled screws (15) and use the swivelling lever to open the lid.
  • Page 14: Maintenance

    Clean the housing regularly with a damp cloth. Note Clean and protect your device regularly with the REITEL stainless steel care spray (order-no.: 90405000) to remove lime, plaster and dust as well as other contaminants from the surface of equipment and to prevent corrosion. The spray creates a water...
  • Page 15: Warranty

    Warranty We, REITEL Feinwerktechnik GmbH, offer a 1 year’s warranty beginning from the proven date of purchase. This warranty covers all defects traceable to materials, design or workmanship. The following warranty regulations are applicable: Within the warranty period Reitel Feinwerktechnik GmbH or an authorized distributor agrees at its sole option, to perform repair or replace this product at no charge covering all defects traceable to materials, design or workmanship.
  • Page 16 REITEL Feinwerktechnik GmH; − The warranty does not cover the cost of removal and replacement of parts and accessories, unless supplied as original equipment by REITEL Feinwerktechnik GmbH − All kind of damages occurred not directly at the device as well as consequential damages (e.g.
  • Page 17 Should you need to borrow a device while your device is being repaired, please contact Messrs. REITEL or your distributor. These loans are a service for which availability cannot necessarily be guaranteed. After the warranty period, a fee may be charged for loan...
  • Page 18: Disposal Regulations

    According to valid regulations our devices are properly disposed of according to B2B – Regulations for proper disposal. Please contact your local dealer for further information. Spare Parts List Best.Nr Polymat 83 Stck. Ref. Ersatzteilliste / Spare Parts List 03/2019 Qty.
  • Page 19: Ec Conformity Declaration

    EC Conformity Declaration...
  • Page 20 We manufacture in compliance with Quality Management ISO 9001:2015 incorporating established standards. REITEL Feinwerktechnik GmbH Senfdamm 20 | 49152 Bad Essen Phone: +49(0)5472-9432-0 | Fax: +49(0)5472-9432-40 www.reitel.com | info@reitel.com...
