- Page 1 Operating Instructions SANDUBLAST 2 / 3 REITEL Feinwerktechnik GmbH Senfdamm 20 | 49152 Bad Essen Phone: +49(0)5472-9432-0 | Fax: +49(0)5472-9432-40 www.reitel.com | info@reitel.com...

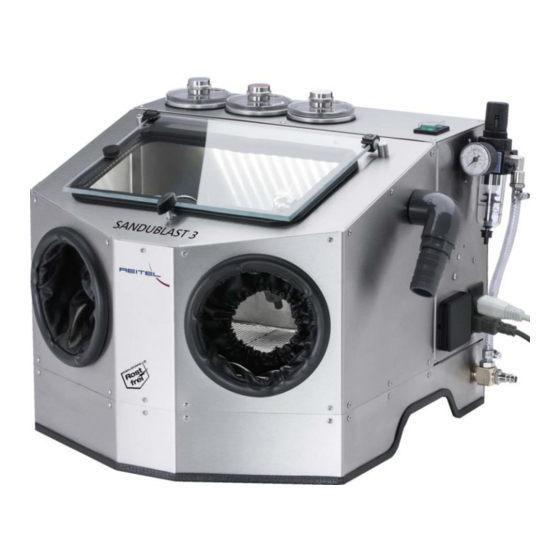

- Page 2 The devices of the SANDUBLAST series are available either as recycling sandblasting device SANDUBLAST or as combined units SANDUBLAST 2 or 3 (cover image shows SANDUBLAST 3). The SANDUBLAST is a manual sandblaster. SANDUBLAST 2 or 3 are combining a recycling sandblasting device for blasting model castings with a Microfine jet blaster with two or three chambers.
-
Page 3: Table Of Contents
CONTENTS EQUIPMENT ......................... 4 ....................... 4 ASIC QUIPMENT ....................4 PECIAL CCESSORIES ....................5 EVICE OMPENENTS ......................8 ECHNICAL .................... 9 HAMBERS AND NOZZLES SAFETY NOTES ......................10 ...................10 ENERAL AFETY OTES ....................11 PECIFIC AFETY OTES INSTALLATION ......................12 ..............12 ECYCLING SANDBLASTER NSTALLATION ......12 ECYCLING SANDBLASTER AND... -
Page 4: Equipment
Equipment Basic Equipment • SANDUBLAST 2 and 3 are combining a recycling sandblaster with a Microfine jet blaster with 2 or 3 chambers (to be specified in the purchase order) • Set of carbide nozzles (dependent on the number of chambers, see chart on page 5) •... -
Page 5: Device Compenents
Device Compenents Power switch Glass pane with protection film Rubber seal (under glass pane) Suction adapter Fuse (with spare fuse) Socket for power supply Socket for foot switch Socket for extraction unit Compressed air outlet Carrying handle Interior light (LED) Screw for opening the glass pane Leather gauntlets Screw plug for abrasive chamber... - Page 6 Fig.: Device view Fig.: closed abrasive chamber Fig.: open blasting chamber (blue) Fig.: Rear view...
- Page 7 Fig.: Lateral view Fig.: Funnel Fig.: Foot switch Fig.: Abrasive chamber Fig.: Base tray Fig.: Hose connection Fig.: Fuse...
-
Page 8: Technical Data
Technical Data SANDUBLAST 2 SANDUBLAST 3 Line voltage 230 V/50-60 Hz Current consumption 100 W 120 W Height/width/depth 360+190/480/440 mm Weight 17 kg 18 kg Air consumption ca. 80 l/min. Pressure blaster max. 6 bar Pressure chamber 0,5-6 bar Sound level... -
Page 9: Chambers And Nozzles
1,2 mm 1,5 mm 3 chambers Always use recommended nozzle size for chamber 1. Using other nozzle sizes than indicated in the chart for the other chambers doesn’t provide optimum blasting results. Fig.: Details on SANDUBLAST 2 Fig.: SANDUBLAST 3... -
Page 10: Safety Notes
Safety Notes General Safety Notes • All equipment undergoes final inspection and testing before leaving our factory. However, if equipment is damaged during shipping or through any other circumstances, it must not be used in service. Please check the device regularly for damages. Damaged parts should be replaced immediately. -
Page 11: Specific Safety Notes
Specific Safety Notes Attention: The abrasive grain sizes assigned to the chambers have to be adhered to. An abrasive grain size less than 25 my is inadmissible, clogging the ventilation unit. The chambers may only be opened when the device is not under pressure. The lids of the abrasive chambers must always lie flat and clean and be screwed tight with the locking screw (14) before starting work with the device. -
Page 12: Installation
Installation The electrical equipment is ready for immediate use. The sealed plug can be connected directly to the mains supply 230 V/16 A. For installation please refer to safety notes in chapter 2. Recycling sandblaster Installation Now connect the device to the power supply by means of the plug or mains cable. Establish compressed air connection (9) (3,5–6 bar). -
Page 13: Operation
Operation Turn the unit on with the main switch (1). If your extraction system is not linked to the unit, switch it on before operation. The pressure of the chambers can be infinitely adjusted up to max. set 6 bar (uniform for all chambers). -
Page 14: Troubleshooting
Troubleshooting a. Abrasive might be dirty → Change Jet becomes irregular abrasive, maybe take nozzle off and blow it through. b. Wrong nozzle being inserted → Please adhere to the nozzle configuration in chapter 1.3 (Important for chamber 1 of Microfine jet blaster). -
Page 15: Maintenance
Check the water separator, maintenance unit and pressure control (9) on a regular basis and if necessary let the water flow out through the valve (8). • Clean the housing regularly with a damp cloth and polish it with the REITEL stainless steel spray. Note Clean and protect your device at regular intervals with the REITEL stainless steel care spray (order -no.: 90405000) to remove lime, plaster and dust as well as other... -
Page 16: Warranty
Warranty We, REITEL Feinwerktechnik GmbH, offer a 1 year’s warranty beginning from the proven date of purchase. This warranty covers all defects traceable to materials, design or workmanship. The following warranty regulations are applicable: Within the warranty period Reitel Feinwerktechnik GmbH or an authorised distributor agrees at its sole option, to perform repair or replace this product at no charge covering all defects traceable to materials, design or workmanship. - Page 17 − The warranty does not cover the cost of removal and replacement of parts and accessories, unless supplied as original equipment by REITEL Feinwerktechnik GmH − All kind of damages occurred not directly at the device as well as consequential damages (e.g.
- Page 18 Should you need to borrow a device while your device is being repaired, please contact Messrs. REITEL or your distributor. These loans are a service for which availability cannot necessarily be guaranteed. After the warranty period, a free may be charged for loan...
-
Page 19: Disposal Regulations
Disposal Regulations According to valid laws our devices are properly disposed of according to B2B- regulations for proper disposal. Pls. contact your local dealer for additional information. -
Page 20: Spare Parts List
Spare Parts List SANDUBLAST 2-3 (46.5) Best.-Nr. Stck. Reference Qty. Unit Ersatzteilliste / Spare parts list 03/2019 Behälterdeckel farblos Stck E7930500 Transparent blast chamber cover piece Behälterknopf zum Verschließen Deckel Stck E7992600 Chamber lid locking knob piece Düse 0,6mm für 50µ Stck 24598000 Nozzle 0,6mm for 50µ... - Page 21 E6074310 Schlauch, H-PU-8/6 blau E6074310 Schlauch, H-PU-8/6 blau Sicherung 10 Amp. Stck E7049500 Fuse 10 Amp. piece Strahldüse Umlaufstrahl, Trichterdüse mit Trennung an Stck E6283400 Madenschraube piece Strahldüse Umlaufstrahl, Trichterdüse mit Trennung an Stck E6283400 Madenschraube piece Strahlgriffel Alu komplett mit Verschraubung, ohne Düse und Markierring E7931230 Abrasive pen, completed...
-
Page 22: Ec Conformity Declaration
EC Conformity Declaration... - Page 24 Manufacturing according to Quality Management ISO 9001:2015 incorporating established process standards. REITEL Feinwerktechnik GmbH Senfdamm 20 | 49152 Bad Essen Phone: +49(0)5472-9432-0 | Fax: +49(0)5472-9432-40 www.reitel.com | info@reitel.com...
