- Page 1 Operation Instructions POLIRET REITEL Feinwerktechnik GmbH Senfdamm 20 | 49152 Bad Essen Phone: +49(0)5472-9432-0 | Fax: +49(0)5472-9432-40 www.reitel.com | info@reitel.com...

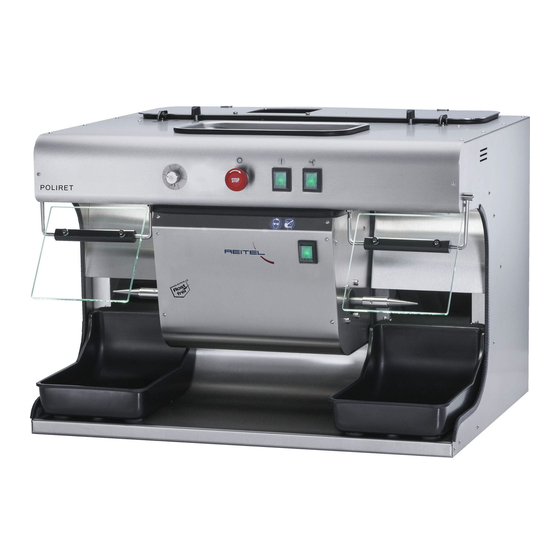

- Page 2 Dear Customer! The POLIRET is a powerful stainless steel polishing unit with two spindles. The comfortable housing width enables simultaneous and independent working of both spindles. Continuous speed control between 800 and 4.500 t./min, perfectly adapting to requirements. The brushless motors are powerful, maintenance free and extremely durable. The POLIRET offers economic and precise grinding, polishing, cleaning and brushing of metal and plastic material.
-
Page 3: Table Of Contents
INDEX TECHNICAL DESCRIPTION ..................4 ....................... 4 ASIC QUIPMENT ....................4 PECIAL CCESSORIES ....................5 EVICE OMPONENTS ......................7 ECHNICAL SAFETY NOTES ......................8 .................... 8 ENERAL AFETY OTES ................. 9 PECIFIC AFETY NSTRUCTIONS INSTALLATION ......................10 ......................10 NSTALLATION ......................10 SSEMBLY OPERATION ........................10 ................10 HRONOLOGICAL RUN OF OPERATION... -
Page 4: Technical Description
Technical Description Basic Equipment • POLIRET Polishing unit • Right and left polishing spindle • 2 filter bags Special Accessories • Order-No.: 24800000 Vario-lifting table • Order-No.: 22603000 Workholding fixture for polishing and grinding device incl. drill chuck • Order-No.: 22702000 Filter bag •... -
Page 5: Device Components
Device Components Left locking screw Left ventilation flap open/shut Speed control polishing motor Left safety panel Left polishing spindle (with ring) Switch polishing motor Right locking screw Right ventilation flap Emergency stop button 10 Suction switch 11 Power switch 12 Right safety panel 13 Right polishing spindle (without ring) 14 Cover 15 Device’s fuse... - Page 6 Fig.: Device view Fig.: Side view Fig.: Air sheet Fig.: Interior of the device...
-
Page 7: Technical Data
Technical Data Line voltage 230 V/50–60 Hz Power consumption motor 550 W Power consumption suction 400 W Height/width/depth 500+100/730/560 mm Weight 60 kg Variable speed 270–4.500 rpm Suction 800 m³/h Filter Class M (<0,1% residual dust) ≤ 70 dB(A) Sound level Housing Stainless steel Order-No.:... -
Page 8: Safety Notes
Safety Notes General Safety Notes • All equipment undergoes final inspection and testing before leaving our factory. However, if equipment is damaged during shipping or through any other circumstances, it must not be used in service. Please check the device regularly for damages. Damaged parts should be replaced immediately. -
Page 9: Specific Safety Instructions
Specific Safety Instructions • Tools and the lamp may only be changed when the spindle stands still and the whole unit is unplugged. • Fold the protective panel down and wear protective glasses. • Only use appropriate and no unbalanced tools. Make sure all tools are fastened securely. •... -
Page 10: Installation
Installation The equipment delivered is ready for immediate use. The sealed plug can be connected directly to the mains supply 230 V / 16 A. For installation please refer to chapter 2. Installation For exhaust air and change of filters save a minimum space of 20 cm above the device. Connect the power supply. -
Page 11: Emergency Stop Button
Emergency stop button 1. After pressing the emergency stop button (9), the device will enter the stop mode. 2. Turn off the main switch (11) and the switch of the polishing motor (6). 3. Turn the emergency stopt button to the right to unlock it. 4. -
Page 12: Troubleshooting
Troubleshooting Device doesn’t start. a. Emergency stop button was pressed. Unlock it by turning the button to the right. Turn off machine and motor switch and wait 8 sec. to restart. b. wait approx. 2 sec. between main switch and motor switch c. -
Page 13: Maintenance
Regularly replace or wash the filter bag (20) (see chapter 4.2 filter replacement). Note Clean and protect your device at regular intervals with the REITEL stainless steel care spray (Order-No.: 90405000) to remove lime, plaster and dust as well as other contaminants from the surface of the equipment and to prevent corrosion. -
Page 14: Warranty
Warranty We, REITEL Feinwerktechnik GmbH, offer a 1 year’s warranty beginning from the proven date of purchase. This warranty covers all defects traceable to materials, design or workmanship. The following warranty regulations are applicable: Within the warranty period Reitel Feinwerktechnik GmbH or an authorized distributor agrees at its sole option, to perform repair or replace this product at no charge covering all defects traceable to materials, design or workmanship. - Page 15 REITEL Feinwerktechnik GmH; The warranty does not cover the cost of removal and replacement of parts and accessories, unless supplied as original equipment by REITEL Feinwerktechnik GmbH All kind of damages occurred not directly at the device as well as consequential damages (e.g.
- Page 16 Should you need to borrow a device while your device is being repaired, please contact Messrs. REITEL or your distributor. These loans are a service for which availability cannot necessarily be guaranteed. After the warranty period, a fee may be charged for loan...
-
Page 17: Disposal Regulations
Disposal Regulations According to valid laws our devices are properly disposed of according to B2B – regulations for proper disposal. Pls. contact your local dealer for additional information. -
Page 18: Spare Parts List
Rubber pad for trough (1 set) E6152100 Kantenschutzprofil Edge protection profile 22603000 Polier- und Schleifaufnahme m.Bohrfutter Stck piece E61453-E Polierspindel POLIRET / E aktuell, zylindrisch, bitte Gerätenummer Stck angeben), li oder re piece E6145300 Polierspindel POLIRET TWIN, zylindrisch Stck Polishing spindle POLIRET TWIN, cylindric, li oder re piece E6152700 Prallschutz ( 2 Stück/Satz ) -
Page 19: Ec Conformity Declaration
EC Conformity Declaration... - Page 20 We manufacture in compliance with Quality Management ISO 9001:2015 incorporating established standards. REITEL Feinwerktechnik GmbH Senfdamm 20 | 49152 Bad Essen Phone: +49(0)5472-9432-0 | Fax: +49(0)5472-9432-40 www.reitel.com | info@reitel.com...
