- Page 1 Operating Instructions ERGORET MINI REITEL Feinwerktechnik GmbH Senfdamm 20 | 49152 Bad Essen Phone: +49(0)5472-9432-0 | Fax: +49(0)5472-9432-40 www.reitel.com | info@reitel.com...

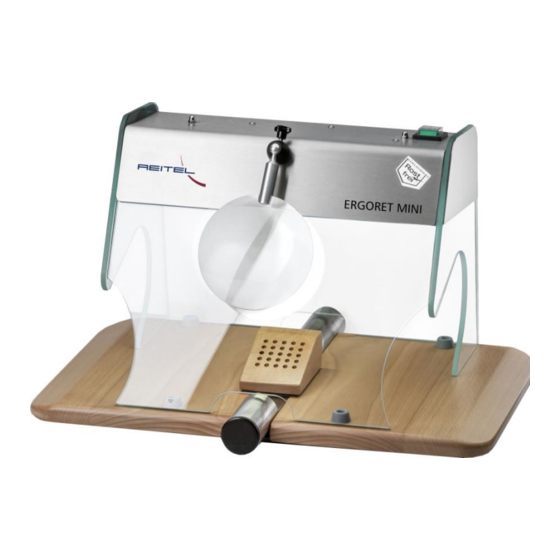

- Page 2 Dear Customer! The ERGORET MINI table top workstation fits on every worktable and keeps dusts and gases away from the environment. All work is done behind safety glass on a skin-friendly beech plate with good visibility through an energy-saving bright work light. The extractor can be connected to an existing installation or alternatively to the DUSTY extractors.
-
Page 3: Table Of Contents
INDEX TECHNICAL DESCRIPTION ..................4 ....................... 4 ASIC QUIPMENT ....................4 PECIAL ACCESSORIES ....................5 EVICE COMPONENTS ......................5 ECHNICAL SAFETY NOTES ......................6 .................... 6 ENERAL AFETY OTES ..................... 7 PECIFIC AFETY OTES INSTALLATION ......................8 ......................8 NSTALLATION ..................... -
Page 4: Technical Description
Technical Description Basic Equipment • ERGORET MINI table top workstation • Filing vice • Suction connection elbow Special accessories • Order-No.: 12900000 Extractor DUSTY MINI • Order-No.: 17902000 Extractor DUSTY COMFORT • Order-No.: 24800000 VARIO-Lifting table • Order-No.: 23205000 Magnifying glass •... -
Page 5: Device Components
Device components Main switch Cover incl. protective film Wood panel Suction tube incl. cap Filing vice Magnifying glass incl. holder and ball joint (optional) LED lamp (inside the cover) Fig.: Device view Technical Data Line voltage 230 V/50–60 Hz Current consumption 18 W Height/width/depth 300/490/400 mm... -
Page 6: Safety Notes
Safety Notes General Safety Notes • All equipment undergoes final inspection and testing before leaving our factory. However, if equipment is damaged during shipping or through any other circumstances, it must not be used in service. Please check the device regularly for damages. Damaged parts should be replaced immediately. -
Page 7: Specific Safety Notes
Specific Safety Notes Note The protective hood with extraction prevents flying grinding chips. If, nevertheless, the risk of accidents, e.g. by working with grinding equipment or similar (please note the manufacturer's instructions), appropriate protective measures must be taken. -
Page 8: Installation
2. Check the extraction for a tight fit (the extraction can be connected to the front or rear of the ERGORET MINI.) The unused pipe end must be closed with the sealing cap. Mounting the magnifying glass (optional) 1. -
Page 9: Operation
Operation Chronological run of operation 1. Make the electrical connections. 2. Switch on the device via the main switch (1) and then start the extraction. 3. After completing the work switch off the device at the main switch (1) again. Troubleshooting Device doesn’t turn on. -
Page 10: Warranty
Warranty We, REITEL Feinwerktechnik GmbH, offer a 1 year’s warranty beginning from the proven date of purchase. This warranty covers all defects traceable to materials, design or workmanship. The following warranty regulations are applicable: Within the warranty period Reitel Feinwerktechnik GmbH or an authorized distributor agrees at its sole option, to perform repair or replace this product at no charge covering all defects traceable to materials, design or workmanship. - Page 11 REITEL Feinwerktechnik GmH; − The warranty does not cover the cost of removal and replacement of parts and accessories, unless supplied as original equipment by REITEL Feinwerktechnik GmbH − All kind of damages occurred not directly at the device as well as consequential damages (e.g.
- Page 12 Should you need to borrow a device while your device is being repaired, please contact Messrs. REITEL or your distributor. These loans are a service for which availability cannot necessarily be guaranteed. After the warranty period, a free may be charged for loan...
-
Page 13: Disposal Regulations
Disposal regulations According to valid laws our devices are properly disposed of according to B2B – regulations for proper disposal. Please contact your local dealer for additional information. Spare Parts List Adapter Plexiglas für Absauganschluss-Winkel Stck E6246720 Plexiglass adapter for suction connection elbow piece Dichtung Stck... -
Page 14: Ec Conformity Declaration
EC Conformity Declaration... - Page 16 We manufacture in compliance with Quality Management ISO 9001:2015 incorporating established standards. REITEL Feinwerktechnik GmbH Senfdamm 20 | 49152 Bad Essen Phone: +49(0)5472-9432-0 | Fax: +49(0)5472-9432-40 www.reitel.com | info@reitel.com...
