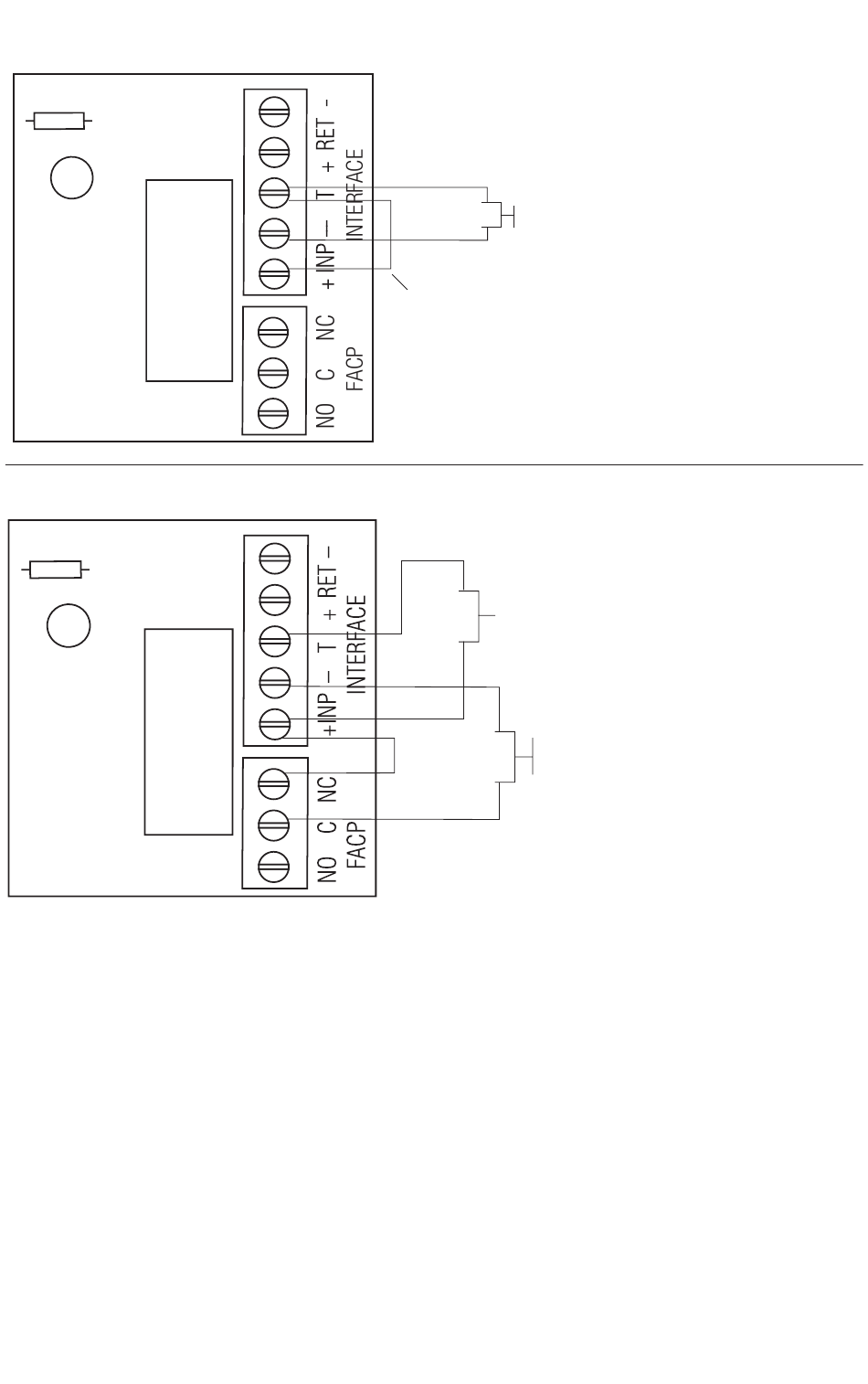

Fig. 11 Normally Closed - Non-Latching FACP trigger input:
TRG
Fig. 12 Normally Closed - Latching FACP trigger input with reset (This output has not been evaluated by UL):
TRG
- 14 -
FACP Hook-Up Diagrams (cont'd):
JUMPER
JUMPER
N.C. DRY
TRIGGER
INPUT
N.C. RESET
SWITCH
N.C. TRIGGER
INPUT
Maximal3D/Maximal5D/Maximal7D Access Power Controllers (PTC)
