PAR4X12B

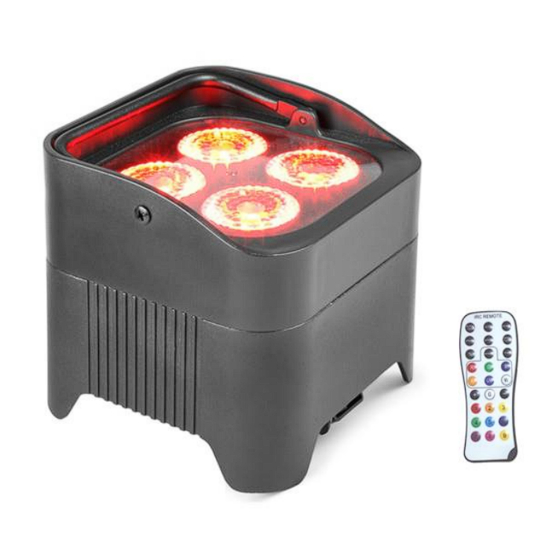

4x 12W RGBWAU 6-in-1 Outdoor LED PAR
USER MANUAL
For your safety, please read this user manual carefully before use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications
within this manual are subject to change without notice. Event Lighting assumes no liability or
responsibility for any errors or omissions. Please consult Event Lighting for any clarification or
information regarding this item.
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAR4X12B and is the answer not in the manual?

Questions and answers

Related Manuals for Event Lighting PAR4X12B

Summary of Contents for Event Lighting PAR4X12B

  • Page 1 For your safety, please read this user manual carefully before use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.

  • Page 2: Safety Instructions

    Stop using this device immediately if a serious operating problem becomes apparent. Product Installation PAR4X12B can be mounted in many orientations, provided each individual device is secured by the use of the correct mounting bracket. Use a safety chain when mounting PAR4X12B overhead.

  • Page 3: Lux Chart

    www.event-lighting.com.au Dimensions Lux Chart Distance (m) Diameter (m) Ø 0.73 Ø 1.46 Ø 2.18 Ø 2.91 Ø 3.64 Green Blue White 1263 Amber Full 3100...

  • Page 4: Control Board Operation

    www.event-lighting.com.au Control Board Operation Menu Map -> Select DMX address for 6 ch mode -> Select DMX address for 10 ch mode -> Remaining percentage of battery power -> Set dimming speed (SL: slow / FA: fast) -> When lost DMX signal, ho: keep the last DMX signal state OF: blackout ->...
  • Page 5 R + G + B + W + A + UV Wireless DMX Mode Set Up Wireless DMX PAR4X12B needs to be paired from the Wireless DMX transmitter. Follow the steps below to pair: 1. Connect the DMX512 controller to the wireless DMX transmitter.
  • Page 6 www.event-lighting.com.au Purple WDMX G4 Transmit Yellow GZ Receive (Receiver Only) Using WDMX Mode Transmitters Press the button to connect all unconnected receivers in the coverage area. Press the button for 3 seconds to disconnect all receivers in the coverage area. Receivers Press the button for 3 seconds to disconnect the device from the transmitter it is currently connected to.

  • Page 7: Ir Remote Control Mode

    www.event-lighting.com.au IR Remote Control Mode • You must switch off wireless DMX function, select • Select , then use IR remote to switch on IR remote control mode. Function Display Description Switch on/off IR function Pressing <blackout> button to switch on the fixture IR function, fixture will go to CC12 auto colour your last switch mode or your last setting...
  • Page 8 1/8 change of strobe mode. speed Wi-Fi Mode Downloading the application Login to the App Store (iOS) or Google Play (Android) and download LED WiFi application. It allows you to control the PAR4x12B using your mobile devices with iOS / Android operating systems.
  • Page 9 www.event-lighting.com.au App Store (iOS) Google Play (Android)
  • Page 10 Step 1: On your mobile devices, select Settings > Wi-Fi > list of available Wi-Fi devices Step 2: Select ‘LED_***’ and connect. PAR4X12B has its own 3-digit Wi-Fi ID and is displayed as LED_***). “***” is based on the last three digits of the serial number, which is printed on the back of PAR4X12B.

  • Page 11: Dmx Chart

    www.event-lighting.com.au DMX Chart 6-Channel Mode Channel Value Function 000-255 Red: 0% ~ 100% 000-255 Green: 0% ~ 100% 000-255 Blue: 0% ~ 100% 000-255 White: 0% ~ 100% 000-255 Amber: 0% ~ 100% 000-255 UV: 0% ~ 100% 10 channel mode Channel Value Function...
  • Page 12 www.event-lighting.com.au 208-223 R + B + W + UV 224-239 G + B + W 240-255 R + G + B + W + A + UV 000-255 Select auto run speed for (CC, dE and CP) from slow to fast (Ch9 set 101- 250) 000-255...

  • Page 13: Technical Specifications

    Approx. 15 hours single colour auto run. Housing • Materials: Die Cast Aluminium. • Finishing: Matte Black. • IP Rating: IP65. • Net Weight: 1.9kg. • Overall Size: 133x134x119 mm. Warranty Please refer to your local dealer or contact Event Lighting.
