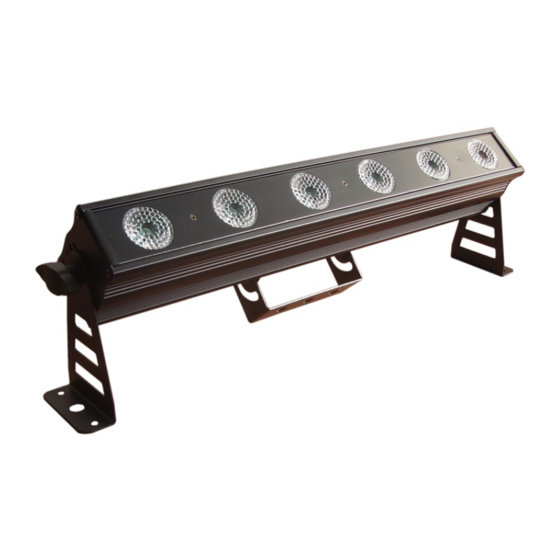

PIXBAR6x12
6x 12W RGBWAU Pixel Control Bar
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications
within this manual are subject to change without notice. Event Lighting assumes no liability or
responsibility for any errors or omissions. Please consult Event Lighting for any clarification or
information regarding this item.
Version: 3.2.0 (7 Oct 2020)
Advertisement
Table of Contents
Related Manuals for Event Lighting PIXBAR6x12
Summary of Contents for Event Lighting PIXBAR6x12
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
-
Page 2: Table Of Contents
www.event-lighting.com.au Contents Safety Instructions Product Installation Diagrams Control Board Operation Special Chase Mode DMX Chart Technical Specifications Warranty... -
Page 3: Safety Instructions
www.event-lighting.com.au Safety Instructions Warning • Do not open this device, there are no user-serviceable parts inside. • Do not look at the light source when the device is on. • This unit's housing may be hot during and after operation. •... - Page 4 www.event-lighting.com.au Dimensions Lux Chart LUX @ 30° 1352 Full 4000 1280 LUX @ 55° Full 2230 Menu Operation 1. Menu – Move up a level. 2. Up – Move selection up one item. 3. Down – Move selection down one item. 4.
- Page 5 www.event-lighting.com.au Control Panel Operation Display Options/Values Description 01. DMX Address <001> - <512> Set the DMX address. 02. DMX Channel <03> <04> <06> <08> <12> Set the DMX channel mode. <36> <38> 03. Dimmer Curve <01> <02> <03> <04> Set the dimmer curve. 04.
- Page 6 www.event-lighting.com.au Static colour <BW> Blue+White Static colour <WA> White+Amber Static colour <RA> Red+Amber Static colour <GA> Green+Amber Static colour <BA> Blue+Amber Static colour <RGB> Red+Green+Blue Static colour <RGW> Red+Green+White Static colour <GBW> Green+Blue+White Static colour <GBA> Green+Blue+Amber Static colour <BWA> Blue+White+Amber Static colour <RGA>...
- Page 7 www.event-lighting.com.au PR14 Auto chasing 5 PR15 Auto chasing 6 PR16 Auto chasing 7 PR17 Auto chasing 8 PR18 Auto chasing 9 PR19 Multi fixture chasing Set Auto Run PR01 – PR18 Enter "Auto Program" mode, use “Up” and “Down” button to select the built-in programs. Press “Enter"...
-
Page 8: Dmx Chart
www.event-lighting.com.au DMX Chart The device is controlled by universal DMX 512 protocol, DMX address is the start channel used to receive instructions from the external controller. For independent control, each fixture must be assigned its unique address control channels. For example, this device has seven channel modes: 3/4/6/8/12/36/38, if we set the mode to 3 channel mode, and there are several models that need to be independently controlled, we just simply address first fixture at 1, and second fixture at 4, third one at 7, etc. - Page 9 www.event-lighting.com.au 165-177 Auto chase 4 (Auto Pr13) 178-190 Auto chase 5 (Auto Pr14) 191-203 Auto chase 6 (Auto Pr15) 204-216 Auto chase 7 (Auto Pr16) 217-229 Auto chase 8 (Auto Pr17) 230-242 Auto chase 9 (Loop Auto Pr10-Pr17) 243-255 Sound Active 0-255 Speed of Auto Programs (slow to fast) Use the dimmer control board setting...
-
Page 10: Technical Specifications
• Housing Materials: Aluminium Housing • Housing finish: Matte Black • Cooling: Fanless Cooling • Dimension: 568 x 165 x 80 mm • Net Weight: 2.6 kg Warranty Please refer to your local dealer or contact Event Lighting Pty Ltd.
