Summary of Contents for Stuart Turner Flomate Mains Boost 46574

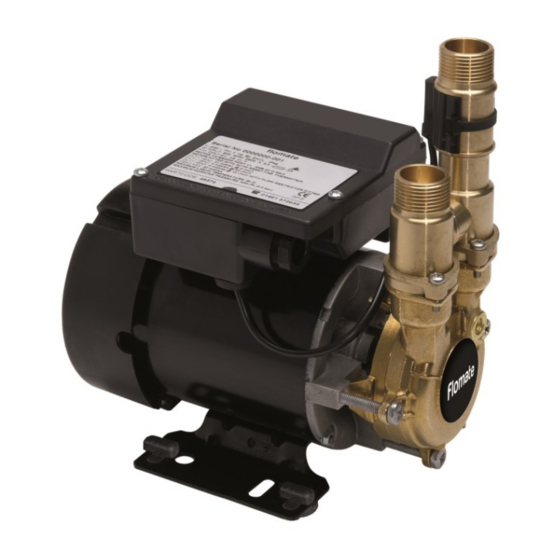

- Page 1 Flomate Mains Boost Pump Installation & Maintenance Instructions Please leave this instruction booklet with the owner as it contains important guarantee, maintenance and safety information PATENT APPROVED GB 2494485 A CE compliant product...
- Page 2 followed. The pump must not be used for any other application without the written consent of Stuart Turner Limited. The pump must be installed by a qualified person. The pump is not suitable for heavy commercial/industrial ...
-
Page 3: Table Of Contents
The flow restrictor must be replaced every 2 years. Care must be taken to ensure the maximum pressure generated by the pump combined with the incoming mains water pressure does not exceed the pumps maximum operating pressure of 6 bar. Please read installation details carefully as they are intended to ensure this product provides long, trouble free service. -
Page 4: Checklist
IMPORTANT: With the pump removed from its packaging check for any damage prior to installation. If any damage is found contact Stuart Turner Ltd within 24 hours of receipt. G ¾ compression fitting with isolating valve and seal (not supplied) (or alternative) Fig. -
Page 5: Important Facts - Read Before Commencing Installation
1 READ BEFORE COMMENCING PUMP INSTALLATION A. Water temperature The water entering the pump must be controlled as follows: 1.11 The maximum allowable water temperature is 35 1.12 The minimum allowable water temperature is 4 B. Pipework - General 1.13 Secure pipework: Ensure pipework to and from pump is independently supported &... -
Page 6: Location
2 LOCATION - GENERAL 2.11 Access: For emergencies and maintenance the pump must be easily accessible. 2.12 Protection: The pump must be located in a dry position, frost free and protected from freezing. Ensure the pump is in a dry position, away from heat sources, such as radiators and heaters. - Page 7 2.19 Pipework Connections: Isolating valves: Always install isolating valves (not supplied) to both suction and delivery pipe to aid future maintenance. Bypass (see note ‘b’ below) Inlet (see note ‘a’ below) (Not supplied) Mains water stop cock Typical installation Mains water supply Fig.
-
Page 8: Electrical Installation
3 ELECTRICAL INSTALLATION / EARTHING 3.11 Regulations: The electrical installation must be carried out in accordance with the current national electrical regulations and installed by a qualified person. 3.12 Safety: In the interests of electrical safety a 30 mA residual current device (R.C.D. - Page 9 3.20 Wiring Diagram: The supply cord and internal wiring within the terminal box are routed and secured to ensure compliance with the electrical standard EN 60335-1. Do not disturb the internal wiring or factory routing and securing of all internal wiring. MAIN WINDING THERMOTRIP CAPACITOR...
-
Page 10: Priming
Carefully check pump and pipework for leaks whilst pump running and stationary before leaving the installation unattended. 4.13 For Further Technical Support: Phone the Stuart Turner PumpAssist team on +44 (0) 844 98 000 97. Our staff are trained to help and advise you over the phone. -
Page 11: Technical Specification
231 mm Weight (including fittings) 5.2 Kg Stuart Turner reserve the right to amend the specification in line with its policy of continuous development of its products. *Note: The maximum pressure that can be applied to the pump under any installation conditions. -
Page 12: Trouble Shooting
7 TROUBLE SHOOTING GUIDE Symptoms Probable Cause Recommended Action Pump will not start. No water. Check required flow of liquid is available to the fittings of approx. 0.6 l/min. Water supply. Check water supply from mains and all stopcocks are open. Electrical supply. - Page 13 If this does not happen, this indicates a possible fault with the reed switch or the P.C.B which is located within the terminal box. These should be checked electrically. Consult Stuart Turner for further instructions. Body Reed Clamp...
-
Page 14: Guarantee
Proof of purchase should accompany the returned unit to avoid delay in investigation and dealing with your claim. You should obtain appropriate insurance cover for any loss or damage which is not covered by Stuart Turner Ltd in this provision. Please record here for your records. TYPE NO. - Page 15 Installers – Register with Stuart Turner and move up to Approved Installer status We receive thousands of enquiries every month from people seeking a Stuart Turner installer and by registering your details with us, we can offer consumers the opportunity to quickly locate an installer in their area.
- Page 16 Signed ......... Stuart Turner are an approved company to BS EN ISO 9001:2000...
