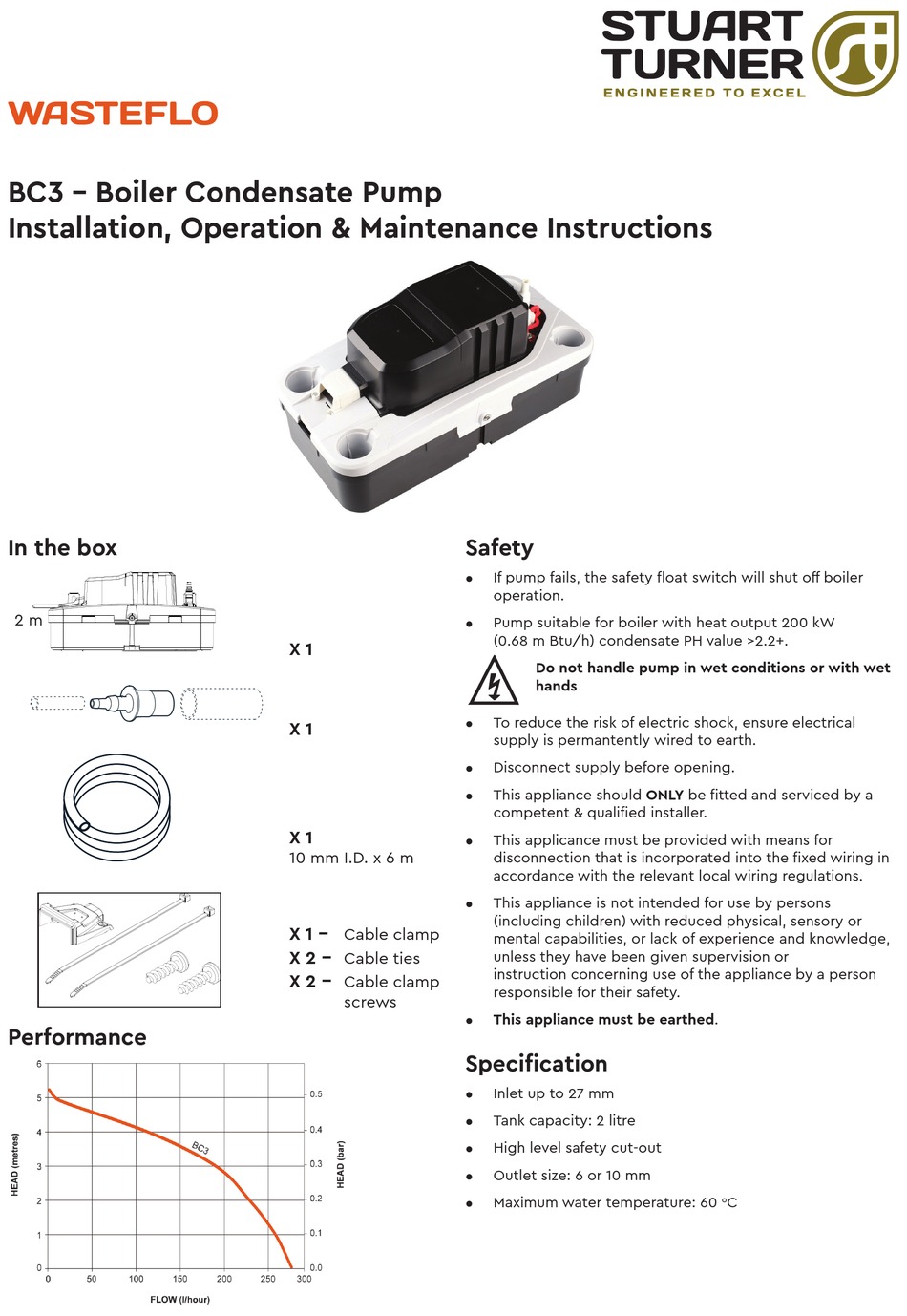

Stuart Turner WASTEFLO BC3 Installation, Operation, & Maintenance Instruction

WASTEFLO

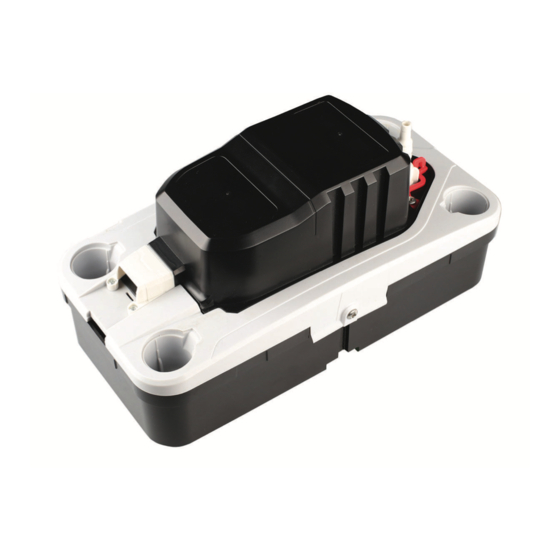

BC3 - Boiler Condensate Pump
Installation, Operation & Maintenance Instructions
In the box
2 m
Performance
X 1
X 1
X 1
10 mm I.D. x 6 m
-
X 1
Cable clamp
-
X 2
Cable ties
-
X 2
Cable clamp
screws
Safety
If pump fails, the safety float switch will shut off boiler
z
operation.
Pump suitable for boiler with heat output 200 kW
z
(0.68 m Btu/h) condensate PH value >2.2+.
Do not handle pump in wet conditions or with wet
hands
To reduce the risk of electric shock, ensure electrical
z
supply is permantently wired to earth.
Disconnect supply before opening.
z
This appliance should ONLY be fitted and serviced by a
z
competent & qualified installer.
This applicance must be provided with means for
z
disconnection that is incorporated into the fixed wiring in
accordance with the relevant local wiring regulations.
This appliance is not intended for use by persons
z
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
This appliance must be earthed.
z
Specification
Inlet up to 27 mm
z
Tank capacity: 2 litre
z
High level safety cut-out
z
Outlet size: 6 or 10 mm
z
Maximum water temperature: 60
z
C
o
