Planning the FortiGate configuration

Transparent mode standalone configuration

42

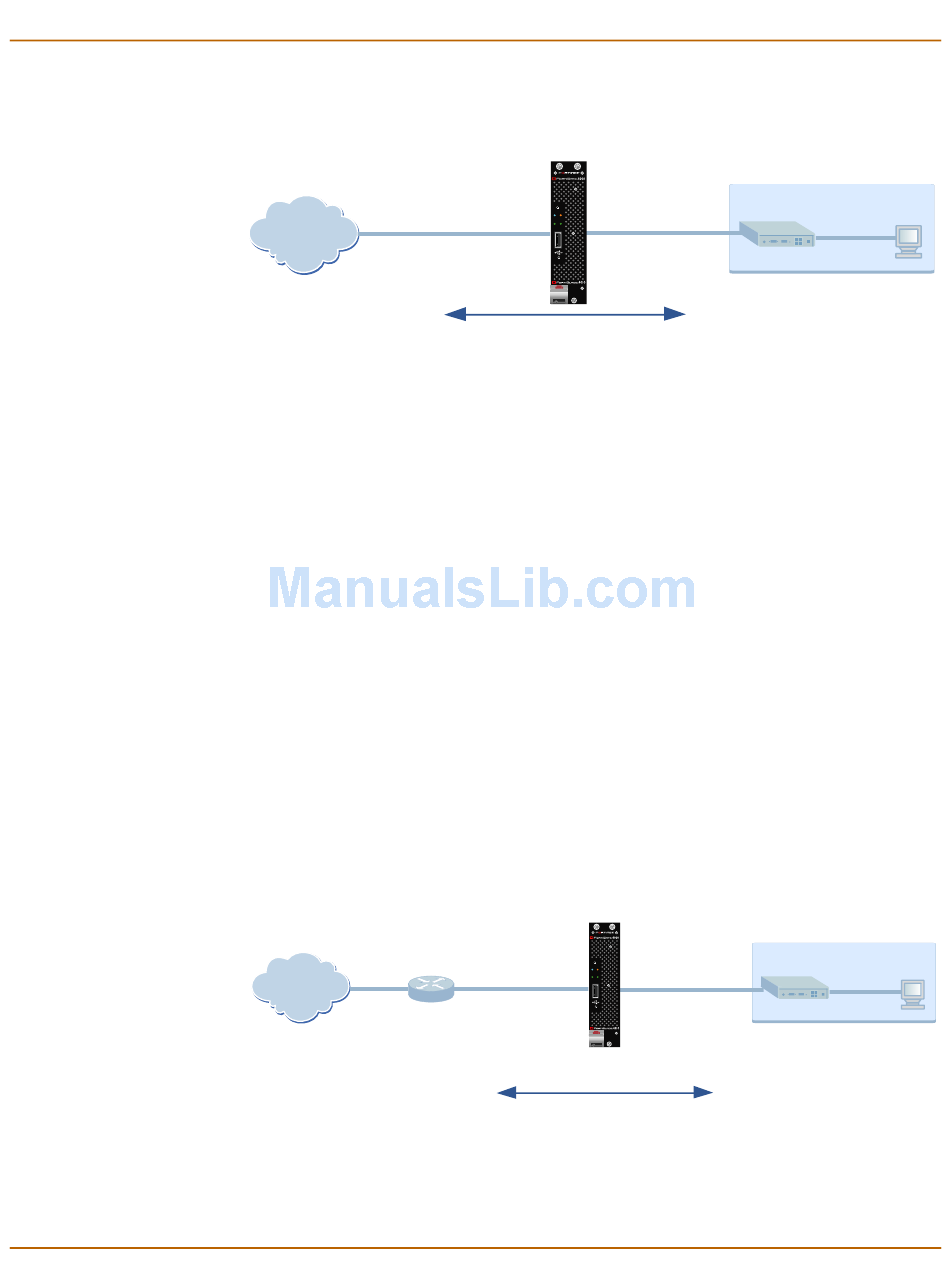

Figure 18: Example NAT/Route mode standalone network configuration
External
204.23.1.5
Internet
In Transparent mode standalone configuration, each FortiGate-4000 unit in the
FortiGate-4000 chassis operates as a separate Transparent mode FortiGate-4000
antivirus firewall. Each of these FortiGate-4000 unit is invisible to the network. Similar
to a network bridge, the FortiGate internal and external interfaces must be on the
same subnet. You only have to configure a management IP address so that you can
make configuration changes. The management IP address is also used for antivirus
and attack definition updates.
In addition, the 10/100 out of band management interface is available for out of band
management. The out of band management IP address must not be on the same
subnet as the management IP address.
You typically use a FortiGate-4000 unit in Transparent mode on a private network
behind an existing firewall or behind a router. The FortiGate-4000 unit performs
firewall functions as well as antivirus and content scanning but not VPN.
The following interfaces are available in Transparent mode:
• External: the interface to the external network (usually the Internet).
• Internal: the interface to the internal network.
Figure 19: Example Transparent mode standalone network configuration
Gateway to
public newtwork
204.23.1.5
Internet
(Firewall, router)
01-28004-0028-20040830
FortiGate-4000 unit
in NAT/Route mode
Internal
KVM/ACCESS
PWR/KVM STATUS 192.168.1.99
LAN 1 LAN 2
POWER ON/OFF
NAT mode policies controlling
traffic between internal and
external networks.
FortiGate-4000 unit
in Transparent mode
KVM/ACCESS
192.168.1.1
PWR/KVM STATUS
LAN 1 LAN 2
External
POWER ON/OFF
192.168.1.2
Management IP
Transparent mode policies controlling
traffic between internal and
external networks.
Getting started
Internal network
192.168.1.3
Internal network
192.168.1.3
Internal
