Getting started

KVM switch module

FortiGate-4000 Installation Guide
Table 3: FortiBlade-4010 module front panel LEDs
LED State
PWR/KVM Blue
Green
STATUS Off
Red
LAN 1 Green
Flashing
LAN 2 Green
Flashing
Use the KVM switch module to switch serial connections to the CLI of each
FortiBlade-4010 module installed in the FortiGate-4000 chassis. To access the CLI,
connect the RJ-45 to DB-9 serial cable to the management module (see
"Management module" on page
FortiBlade select buttons on the KVM switch module to select the FortiBlade-4010
module that you can connect to.

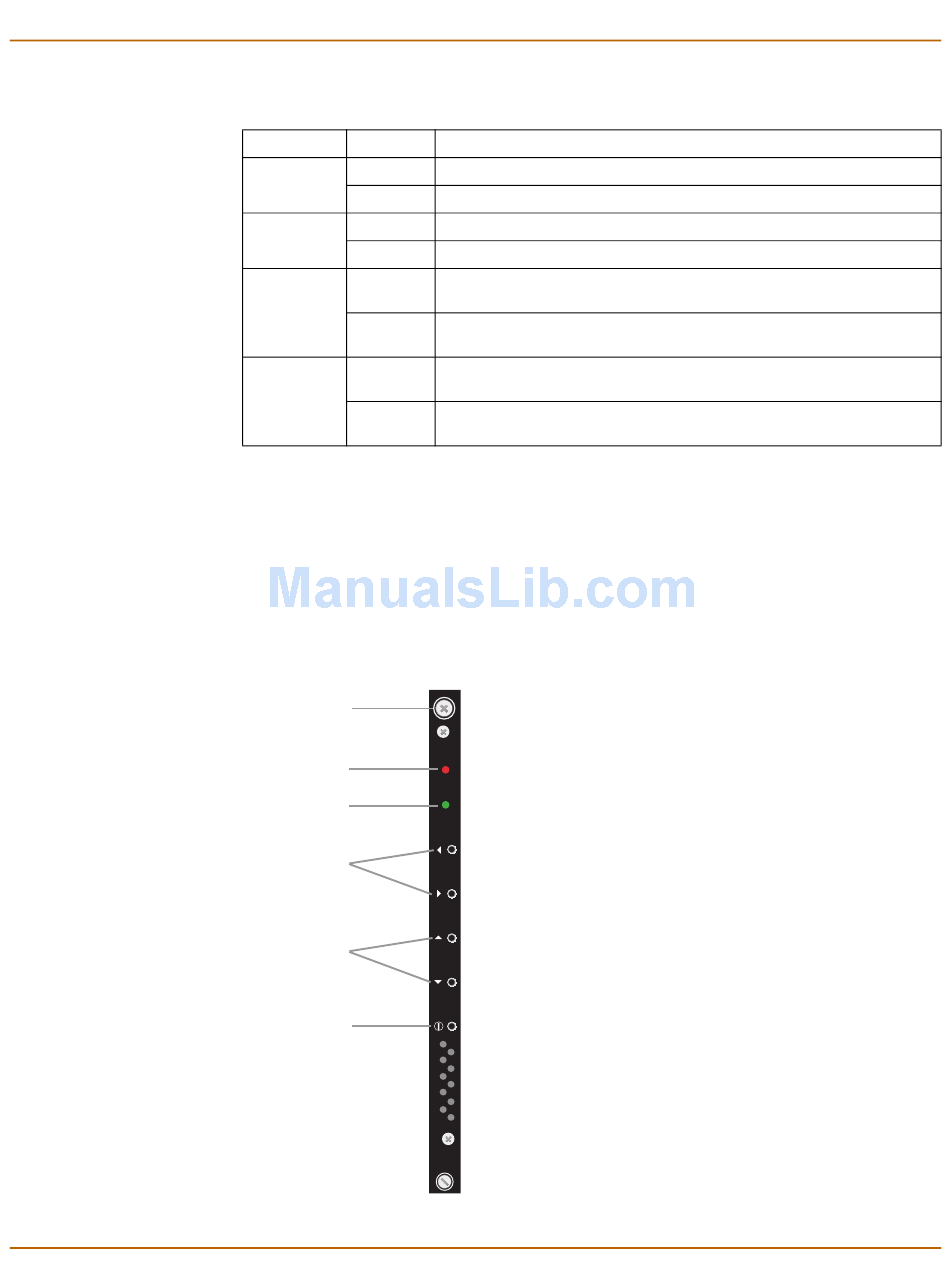

Figure 5: KVM switch module front panel
Mounting Knot
ALARM
KVM
FortiBlade
select buttons
Not used
Not used
01-28004-0028-20040830
Description
The FortiBlade-4010 module is powered on.
KVM access to this FortiBlade-4010 module is enabled.
Normal operation.
System Fault.
The correct cable is connected to the internal interface of this
FortiBlade-4010 module and the connected equipment has power.
Network activity at the internal interface of this FortiBlade-4010
module.
The correct cable is connected to the external interface of this
FortiBlade-4010 module and the connected equipment has power.
Network activity at the external interface of this FortiBlade-4010
module.
22) and to a management PC. You can use the
ALARM
KVM
Front panel features
19
