Getting started
FortiGate-4000 Installation Guide
The other package contains the following components:
• FortiGate-4000 chassis which includes the following components (already
installed).
• One KVM switch module (front panel),
• Ten FortiGate-4000 empty slot covers (front panel),
• One management module (rear panel),
• Seven power supply modules (rear panel),
• Four cooling fan trays (rear panel),
• Two pass-through interface modules (FortiGate-4000P rear panel), or
• Two switched interface modules (FortiGate-4000S rear panel),
• One 10/100 out of band management module (rear panel).
• Three power cables,
• One RJ-45 to DB-9 serial cable (only the black header works with the FortiGate-
4000 unit),
• One mounting rail kit,
• One FortiGate-4000 QuickStart Guide,
• One documentation CD containing Fortinet user documentation.

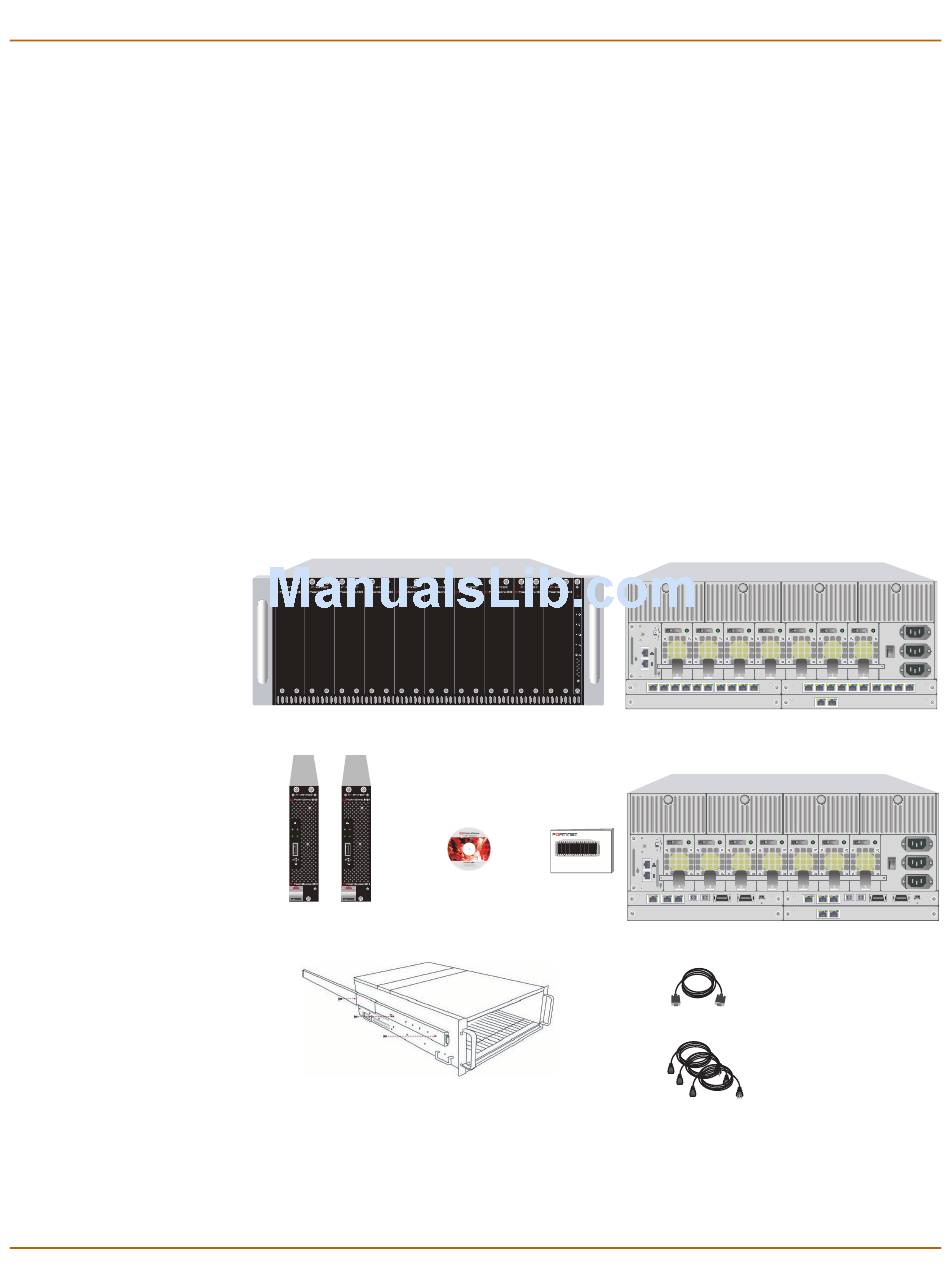

Figure 2: FortiGate-4000 package contents
FortiGate-4000 Chassis (front view)
KVM/ACCESS KVM/ACCESS
PWR/KVM STATUS PWR/KVM STATUS
LAN 1 LAN 2 LAN 1 LAN 2
POWER ON/OFF POWER ON/OFF
FortiBlade-4010 modules
Mounting rail and rail mounting locations
01-28004-0028-20040830
ALARM
KVM
FortiGate-4000
ALARM
KVM
QuickStart Guide
Copyright 2003 Fortinet Incorporated. All rights reserved.
Trademarks
Products mentioned in this document are trademarks.
Documentation
(CD and QuickStart Guide)
Package contents
ERR ERR
LAN 10 LAN 9 LAN 8 LAN 7 LAN 6 LAN 5 LAN 4 LAN 3 LAN 2 LAN 1 LAN 10 LAN 9
LAN 1
FortiGate-4000P Chassis (back view)
ERR ERR
COM LAN 2 LAN 1 COM LAN 2
ON OFF
SFP SFP HiGig OUT HiGig IN
LAN 1
FortiGate-4000S Chassis (back view)
RJ-45 serial
cable
Power Cables (3)
LAN 8 LAN 7 LAN 6 LAN 5 LAN 4 LAN 3 LAN 2 LAN 1
LAN 2
LAN 1
ON OFF
SFP SFP HiGig OUT HiGig IN
LAN 2
