Getting started

Front panel features

FortiBlade-4010 module

FortiGate-4000 Installation Guide
Figure 3 shows the location of the FortiGate-4000 chassis front panel components.
The front panel contains and provides access to up to 10 FortiBlade-4010 modules
and the KVM switch module.

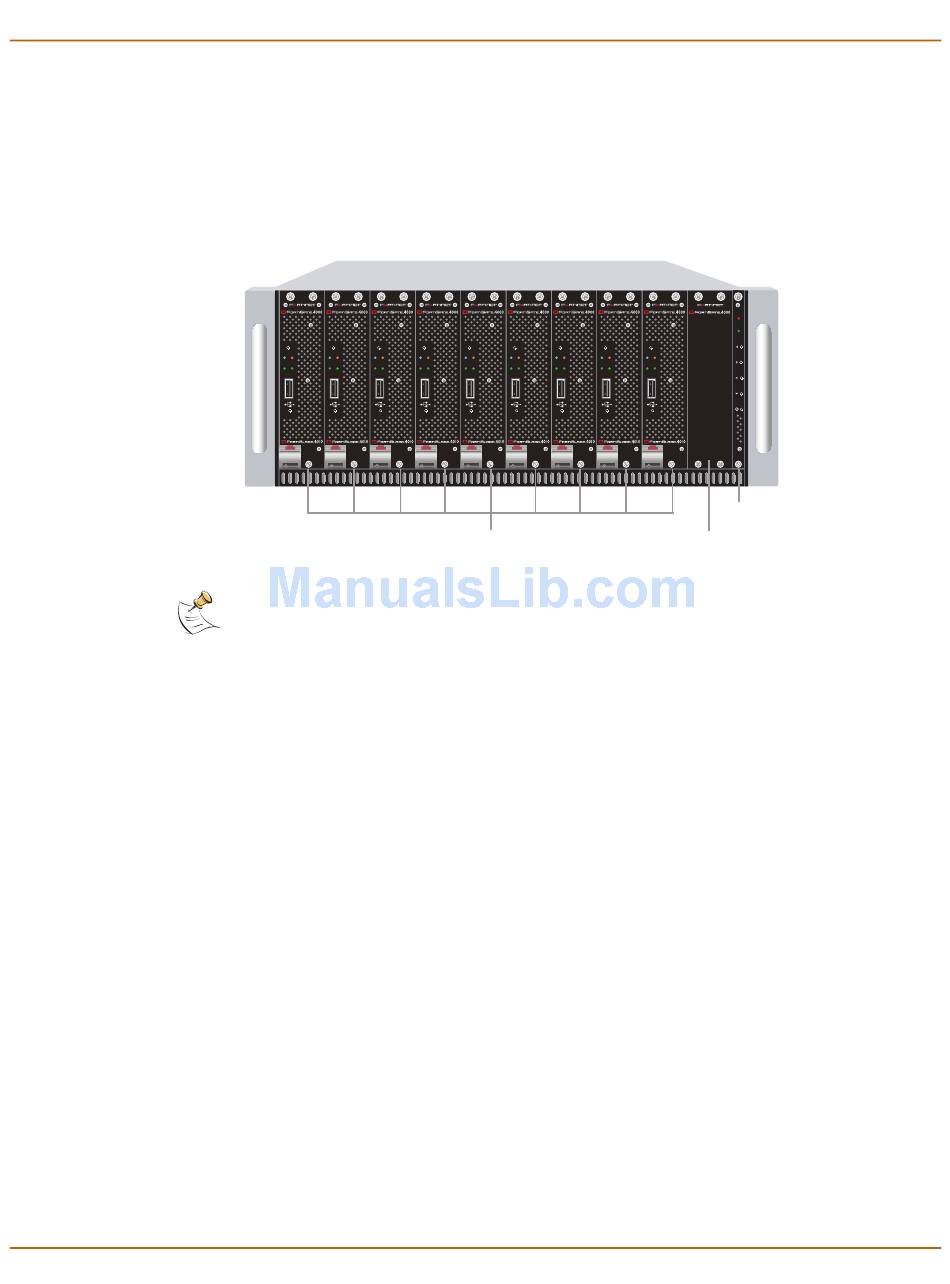

Figure 3: FortiGate-4000 chassis front panel
1 2 3
KVM/ACCESS KVM/ACCESS KVM ACCESS KVM/ACCESS
PWR/KVM STATUS PWR/KVM STATUS PWR/KVM STATUS PWR/KVM STATUS
LAN 1 LAN 2 LAN 1 LAN 2 LAN 1 LAN 2 LAN 1
POWER ON/OFF POWER ON/OFF POWER ON/OFF POWER ON/OFF
Note: Do not operate the FortiGate-4000 chassis with open slots on the front panel. For
optimum cooling performance, all front panel slots must either contain a FortiBlade-4010
module or be covered by an empty slot cover.
Each FortiBlade-4010 module is an independent FortiGate-4000 antivirus firewall
capable of operating at gigabit network speeds. You can install up to 10
FortiBlade-4010 modules in the FortiGate-4000 chassis. Each FortiBlade-4010
module can operate as a standalone FortiGate-4000 antivirus firewall or you can
group FortiBlade-4010 modules into high availability (HA) clusters. Each cluster
provides failover between the FortiBlade-4010 modules in the cluster. In addition,
when operating in active-active HA mode, the FortiBlade-4010 clusters provide
antivirus scanning load balancing to increase virus scanning performance.
01-28004-0028-20040830
Slot Number
4 5 6 7
KVM/ACCESS KVM/ACCESS KVM/ACCESS KVM/ACCESS
PWR/KVM STATUS PWR/KVM STATUS PWR/KVM STATUS PWR/KVM STATUS
LAN 2 LAN 1 LAN 2 LAN 1 LAN 2 LAN 1 LAN 2 LAN 1
POWER ON/OFF POWER ON/OFF POWER ON/OFF POWER ON/OFF
FortiBlade-4010 modules
8 9 10
ALARM
KVM
KVM/ACCESS
PWR/KVM STATUS
LAN 2 LAN 1 LAN 2
POWER ON/OFF
KVM switch
module
FortiGate-4000
empty slot
cover
Front panel features
