Power supplies and power connections

FortiGate-4000 Installation Guide
Figure 7: FortiGate-4000S rear panel
ERR ERR
Management
module
COM LAN 2
External ethernet
switched interface
modue
Power on LED
Power switch
Fan housing
Locking handle
The FortiGate-4000 chassis contains 7 power supply modules. Each power supply
can provide a maximum of 350 watts for a total of 2100 watts, in 6+1 hot-swap
redundant configuration that includes load balancing. The voltage range is 100-230
VAC auto range.
The power connections supply AC power to the power supplies. Connect all three
power connections to power outlets. Use the power switch on the power connector
module to turn the FortiGate-4000 chassis power on and off.
Connect each power cable to a different power source, if possible. If one power
source fails, the other source might still be operative.
When power is restored after a power failure, the FortiGate unit will pause and then
restart automatically.
A power supply module is powered on when its power on LED turns green.

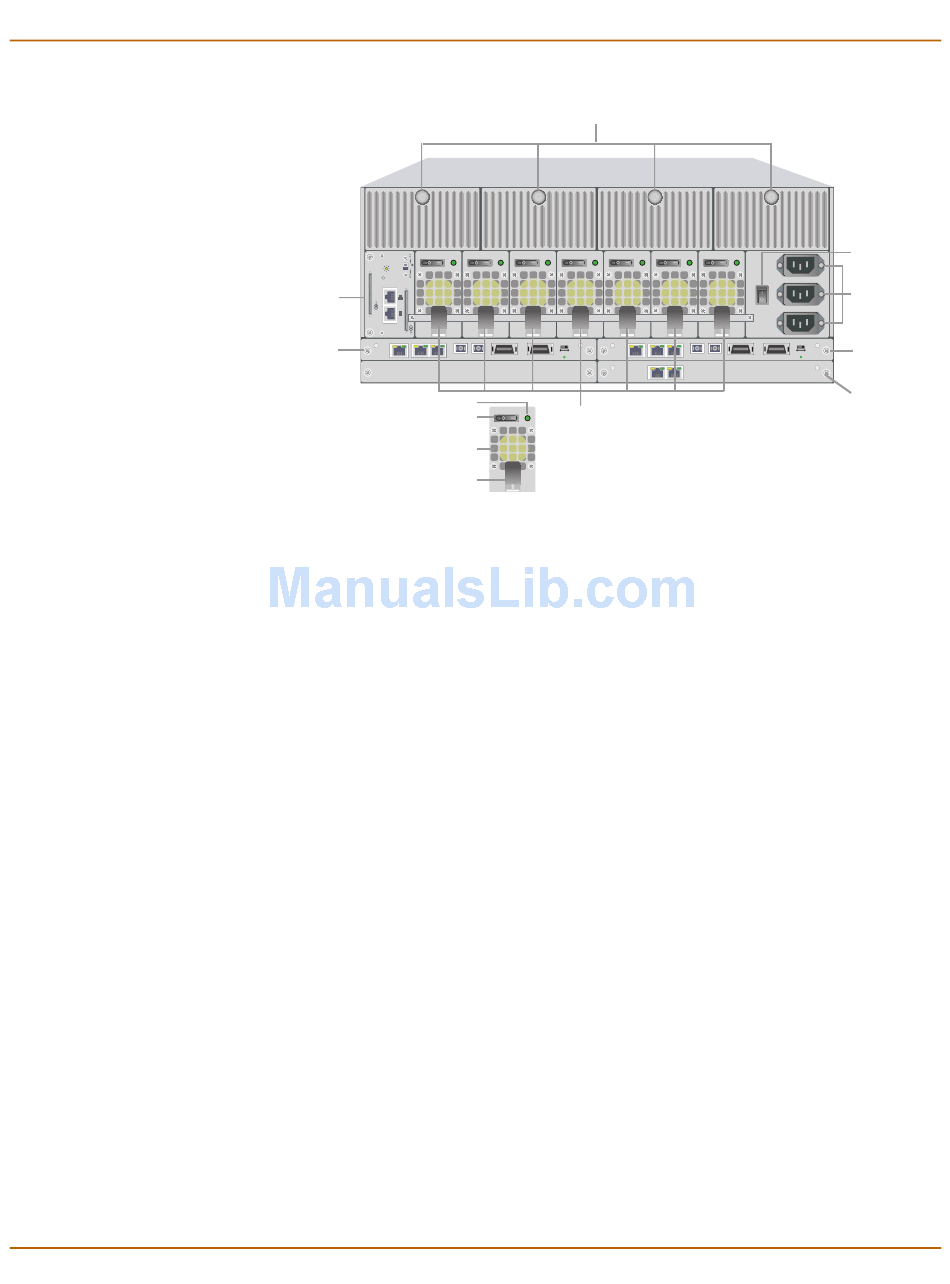

Figure 8 illustrates the power supply modules and the power connectors.
