Rear panel features

Cooling fan trays

Management module

22

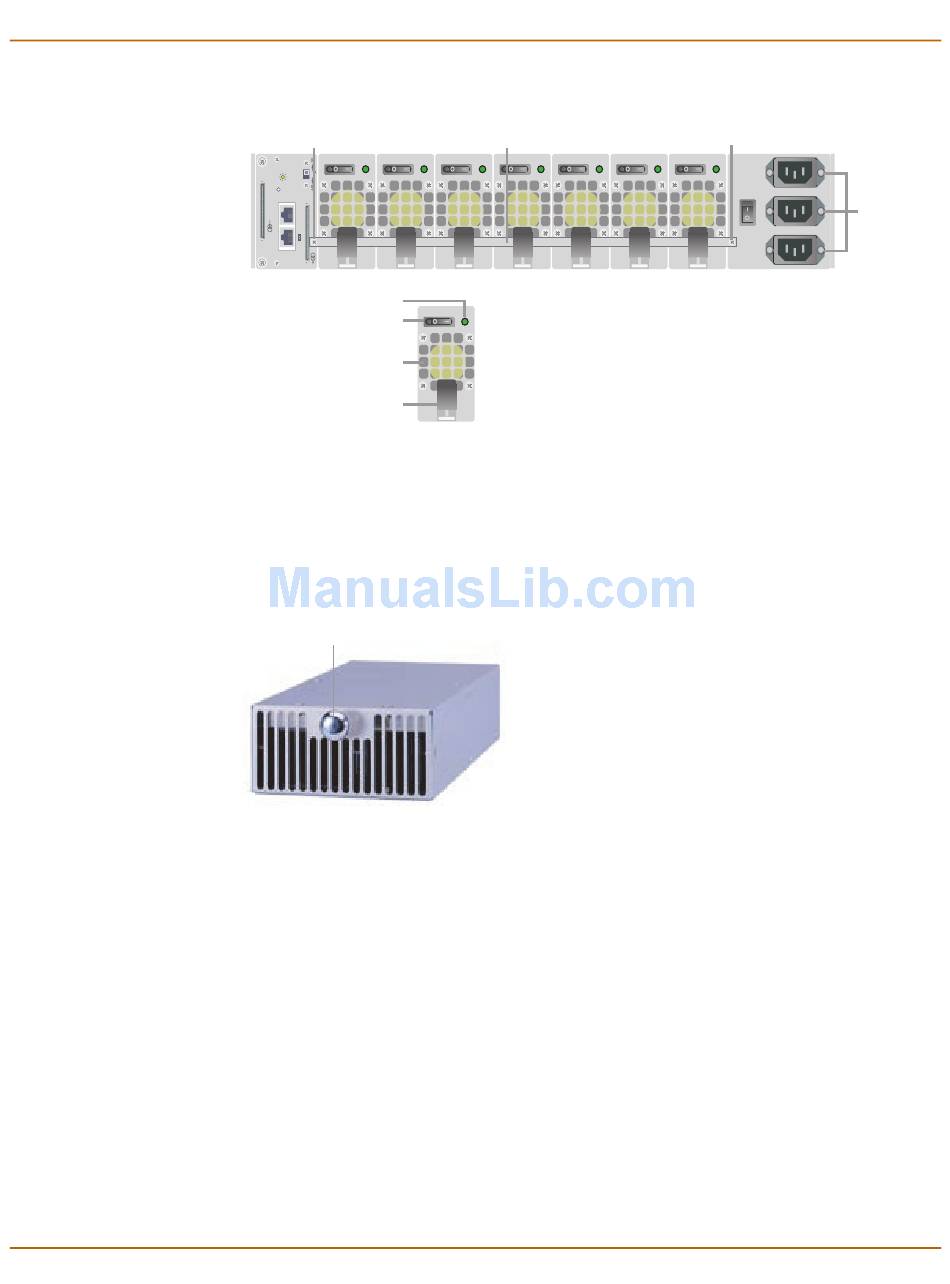

Figure 8: Power supply modules and power connectors
Locking screw
ERR ERR
Power on LED
Power switch
Fan housing
Locking handle
The FortiGate-4000 chassis is cooled using four hot-swappable cooling fan trays.
Each tray includes one 10-cm ball bearing fan unit.
Figure 9 illustrates a cooling fan tray.
Figure 9: Cooling fan tray
Fan handle
Use the KVM switch module to switch serial connections to the CLI of each
FortiBlade-4010 module installed in the FortiGate-4000 chassis. To access the CLI,
connect the RJ-45 to DB-9 serial cable to the management module and to a
management PC. You can use the FortiBlade select buttons on the KVM switch
module (see "KVM switch module" on page
that you can connect to.
01-28004-0028-20040830
Locking strip
Power supply
modules (7)
19) to select the FortiBlade-4010 module
Getting started
Locking screw
Fortinet Inc.
Power
connectors
