Summary of Contents for Strong SRT 8541

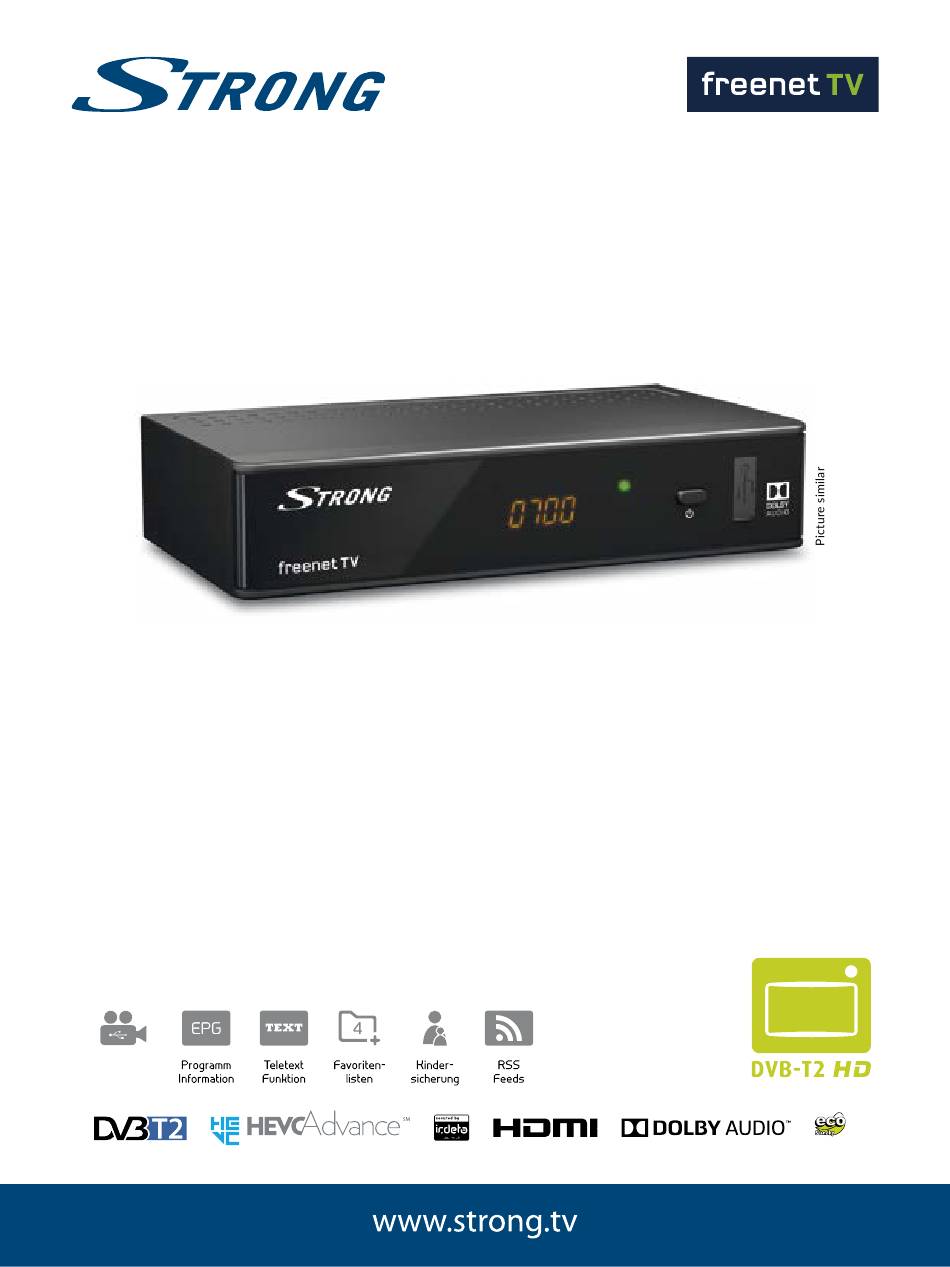

- Page 1 Digitaler Terrestrischer HD Receiver SRT 8541 Installationsanleitung Installation Instructions Wiedergabe...
- Page 4 Geliefert durch STRONG Austria Vertreten durch STRONG Ges.m.b.H. Franz-Josefs-Kai 1 1010 Wien, Österreich Email: support_at@strong.tv 19 Apr 2018 12:20...
- Page 5 Licenses THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NONCOMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO.
-
Page 6: Table Of Contents
9.0 TECHNICAL SPECIFICATIONS home entertainment STRONG declares that this item complies with the basic requirements and other relevant regulations of directives EMC 2014/30/EU, LVD 2014/35/EU and RoHS 2011/65/EU. Subject to alterations. In consequence of continuous research and development technical specifications, design and appearance of products may change. -
Page 7: Introduction
1.0 INTRODUCTION 1.1 Safety Instructions Read all of the instructions before operating the device. Keep these instructions well for later use. Only use attachments/accessories specified or provided by the manufacturer (such as the „ „ exclusive supply adapter, battery etc.). Please refer to the information on the product enclosure for electrical and safety information „... -
Page 8: Storage
Precautions Never try to open the device. It is dangerous to touch the inside of the device due to high „ „ voltages and possible electrical hazards. Opening the device will void the warranty of the product. Refer all maintenance or servicing to suitably qualified personnel. When you are connecting cables, be sure that the device is disconnected from the mains „... -
Page 9: Accessories
STRONG will not take responsibility for any loss of information or circumstances caused by loss of information. * This user manual describes the full functionality including the recording function and may not be applicable if the software for recording via USB has not yet been installed (available in our web shop: www.strong.tv). -
Page 10: Your Receiver
2.0 YOUR RECEIVER 2.1 DEFAULT PIN: 0000 2.2 Front Panel Fig. 1 1. IR Sensor Receives commands from the remote control 2. LED Display Shows channel number and time in standby 3. Mode Indicator LED RED indicates that the receiver is in STANDBY mode. GREEN indicates that the receiver is in OPERATING mode. -
Page 11: Installing The Batteries
** This user manual describes the full functionality including the recording function and may not be applicable if the software for recording via USB has not yet been installed (available in our web shop: www.strong.tv). 2.5 Installing the batteries Fig. -
Page 12: Connection
NOTE: Managing the receiver will be limited or not possible if there are obstacles between the remote control sensor (at the front panel of the receiver) and the remote control. Direct sunlight or very bright light can reduce or disturb the reception of the remote control signals. 3.0 CONNECTION 3.1 Connecting to a terrestrial antenna Fig. -
Page 13: Extended Connections For Your Home Entertainment
To use this option of your receiver it must be connected to your router. Connect the Ethernet (RJ-45) connector with a class CAT5E (or higher) cable to your router. 3.6 Extended connections for your home entertainment Fig. 8. Connecting to a Digital Audio Amplifier with S/PDIF By connecting your receiver to a digital amplifier or home cinema set, you can enjoy the best possible sound quality and multi-channel audio (depending on broadcast). -
Page 14: Aerial Adjustment
5.0 QUICK GUIDE TO USING YOUR RECEIVER We at STRONG understand that you can’t wait to enjoy your new high definition digital terrestrial receiver. The following quick guide will make you familiar with the basic operation of this device. We do, however, advice you to read the full manual to get the best performance from your receiver. -
Page 15: Changing Channels
6.1 Changing channels Following ways are possible for changing channels with your new receiver: Via direct access using the 0~9 buttons. „ „ Via the channel list through OK and the PG+/PG- buttons. „ „ Via the pq buttons. „ „... -
Page 16: Subtitles
* This part of the user manual describes the full functionality including the recording function and may not be applicable if the software for recording via USB has not yet been installed and activated. Please, visit our website www.strong.tv to get more information. -
Page 17: Main Menu
OK to definitely delete. * This user manual describes the full functionality including the recording function and may not be applicable if the software for recording via USB has not yet been installed (available in our web shop: www.strong.tv). 7.0 MAIN MENU The main menu gives you access to Installation, Channels, Settings, Multimedia and Network functions. - Page 18 7.1.1 Manual Search This menu allows you to search for channels at a specific Frequency or Channel number. Use pq to select Scan mode, and select between Free which will only install Free-to-Air channels or All. This means that channels that are Free-to-Air or scrambled will be searched and stored. Use pq to select Channel No and select the channel number of the frequency you’d like to search.
-
Page 19: Channels
opened for detailed information about these items: Service Status, Loader Status, Product Status, Client Status and Mailbox. 7.1.5.1 Mailbox This menu allows access to provider mails. It is used for sending important information from broadcaster/content provider to you. If you receive a mail you will get this message directly displayed on screen. - Page 20 Further information about the functions Automatic channel update and Logical channel numbering, which have influence on the functions of channel management, can be found in the chapters 7.3.3.3 and 7.3.3.4 . Sort the channel order from the main channel list Select the option Move and press OK.
-
Page 21: Settings
7.3 Settings Press MENU in the TV mode and use t u to select Settings. Use pq to highlight the submenu of choice and press OK to select. 7.3.1 Language This menu allows you to set up your language preferences. OSD Language: Use t u to select the language for the On Screen Display. - Page 22 transfer Dolby® Digital/Dolby® Digital Plus* audio to the TV via HDMI or to a home cinema set. SPDIF Audio Output: Toggles between PCM and Bitstream output. When PCM is selected, all digital audio will be converted to stereo audio. Bitstream enables you to listen or transfer Dolby®...
- Page 23 therefore not possible. In this case the Move function is marked grey and cannot be selected. The default setting for this function is Off and you are free to sort the channels in the main channel list. As soon as the broadcaster supports this function you can activate it by setting it from Off to On. In this case the receiver will delete all current channels and favourite lists and start a fully new scan process.
-
Page 24: Multimedia
The timer setup menu will now be displayed. The following settings are available: Timer Status: Choose between Once (Timer will wake up the receiver) or Off (Timer will not start the scheduled event). Also you can select Monday-Friday, Daily and Weekly. Timer Action: Select Booking to wake-up the receiver and switch to the selected channel. - Page 25 OK and show starts to play. Press the button to stop. * STRONG cannot guarantee the playback of files although extensions are listed, as it depends on codec, data bit rate and resolution used (all MPEG codec formats are supported).
-
Page 26: Network
Seconds to let the icon disappear after the selected time. * This user manual describes the full functionality including the recording function and may not be applicable if the software for recording via USB has not yet been installed (available in our web shop: www.strong.tv). 7.4.3 Storage Device Setup* This option shows relevant information about the connected USB device. -
Page 27: Software Update
Select if you like to update another time. An OTA update might not be available in your region. Please visit our website www.strong.tv or contact your local service hotline for more information about this option. -
Page 28: Troubleshooting
If the receiver does not work properly after checking it, please contact your dealer or the local Service Hotline or send email to our Support via www.strong.tv. Do NOT try to open or disassemble the receiver. It may cause a dangerous situation and warranty will be void. - Page 29 Control PIN code Contact your local Service Hotline Forgotten channel or send an email to our Support lock code via www.strong.tv After moving the The antenna signals are too weak Press INFO on the remote control receiver to another The signal strength/quality might...
-
Page 30: Technical Specifications
Audio playback: MP3, FLAC, OGG* Picture view: BMP, JPG* * STRONG cannot guarantee the playback of all files although extensions are listed, as it depends on codec, data bit rate and resolution used. Connectors ANT IN - IEC Female HDMI TV SCART (RGB, CVBS, Audio L/R) S/PDIF (coax.) - Page 31 Operating temperature: 0 °C ~ +40 °C Storage temperature: -10 °C ~ +50° C Operating humidity range: 10~85%, RH, Non-condensing Size (WxDxH) in mm: 168 x 99 x 39 Weight: 0.35 kg...
