Matrox ATC Series User Manual page 4

Choose a PCI slot
2
Most computers have different types of
expansion slots. Choose a PCI or PCI
Express ×16 (PCIe) slot, depending on the
type of Matrox card you have. Your system
manual should identify the location of each
type of expansion slot in your computer.
Note:
slot may affect your card or system performance. For more information, see your computer
manual.
WARNING:
into the wrong type of slot could damage
your card, your computer, or both.
If you're using a 32-bit PCI slot, only part
of your card's edge connector should be
inserted into the PCI slot (the part closest
to the back of the computer).
Insert your Matrox card
3
Position your Matrox card over the
a
expansion slot you've chosen.
Push the card in firmly and evenly until
b
it's fully seated in the slot.
Secure the bracket of your Matrox card
c
to the computer frame.
4 Matrox ATC – User Guide
If you're using a PCI graphics card in a PCI 64-bit compatible slot, your choice of PCI

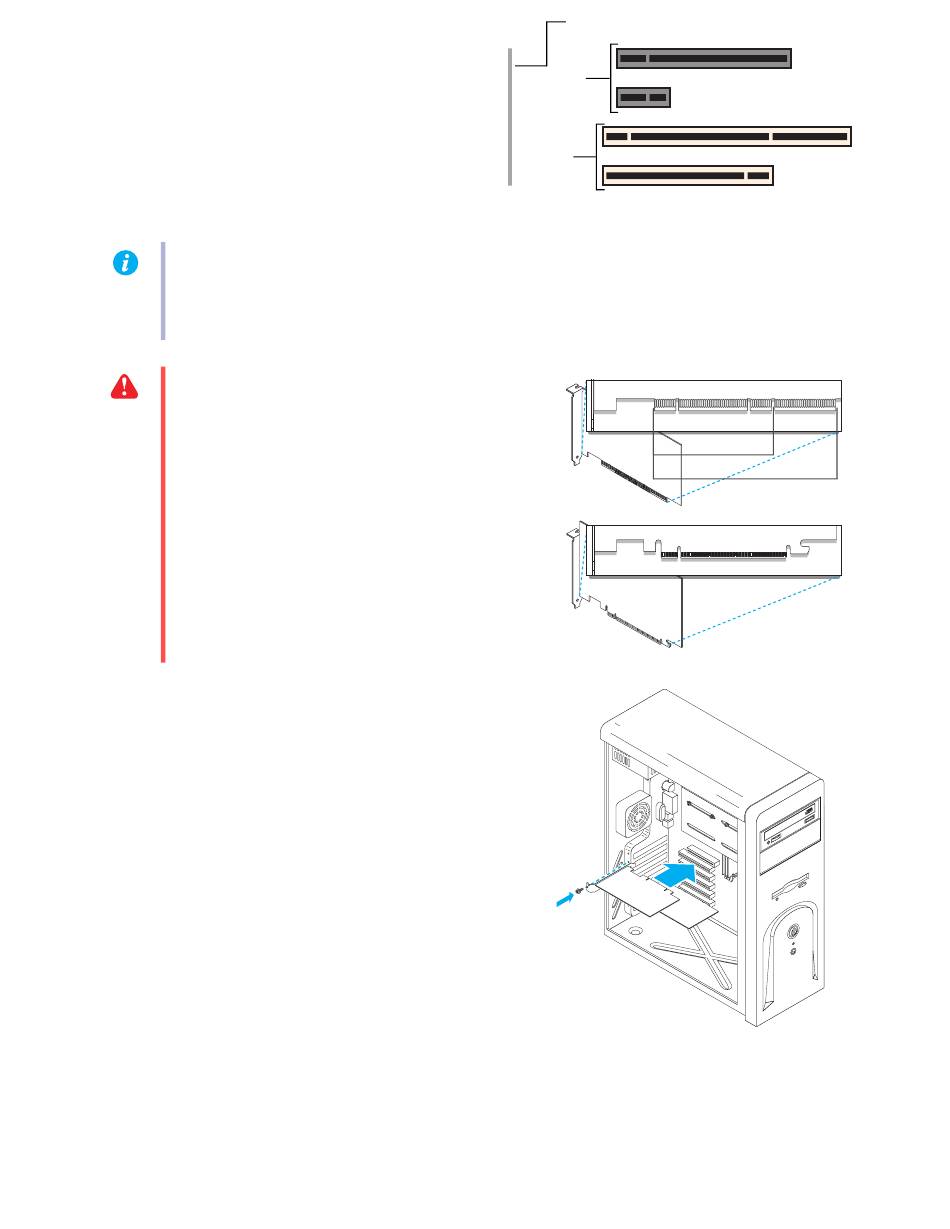

Inserting your Matrox card
(Back of computer)
PCI
Express
slots
(×1)
PCI
slots
(32-bit)
PCI card
PCIe card
(×16)
(64-bit)
32-bit
64-bit
