INSTALLATION
1
Using the mounting template or the mounting bracket itself, mark and drill the necessary holes on the mounting surface.
2
Secure the mounting bracket to the mounting surface using the screws and anchors included.
3
To mount the camera to the mounting accessory, remove the dome from the camera base using the wrench included
with the camera. Remove the camera base from the junction box by loosening the screws at the base of the camera.
NOTE:
Do not touch the lens when handling the camera.
4
Secure the camera's junction box to the mounting bracket using the included camera mounting screws.
5
Pass wires through the mounting bracket and make all necessary connections with the camera. Use the cable holder, at
the base of the junction box, to manage the camera's cables as needed.
6
Connect the camera to the junction box, adjust the camera's position and angle and complete the installation by placing
the dome cover on the camera. Secure the dome cover to the camera's junction box using the screws included with the
camera. See the camera's QSG for more information.

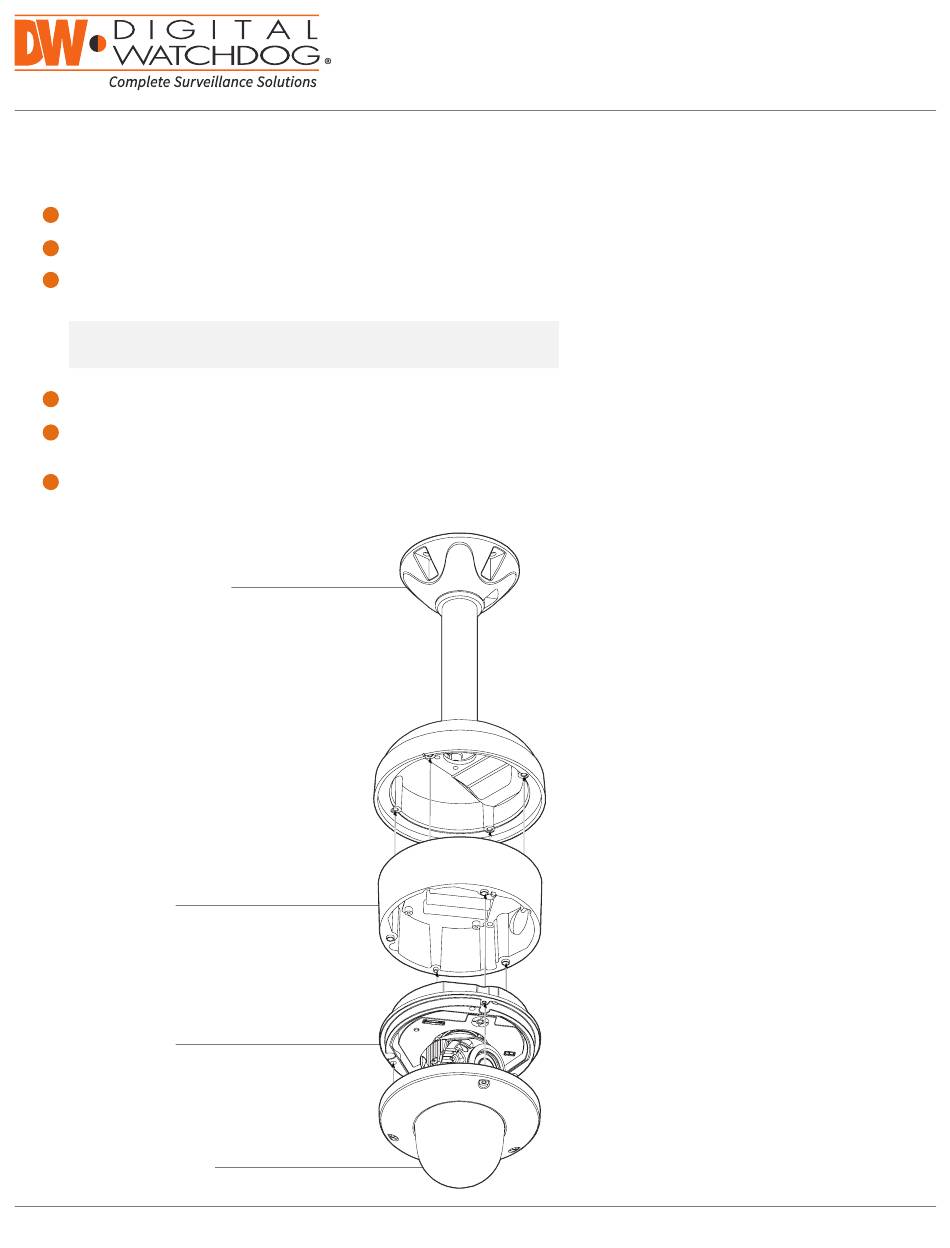

Ceiling mount
Camera junction box
Camera module
Camera dome cover
