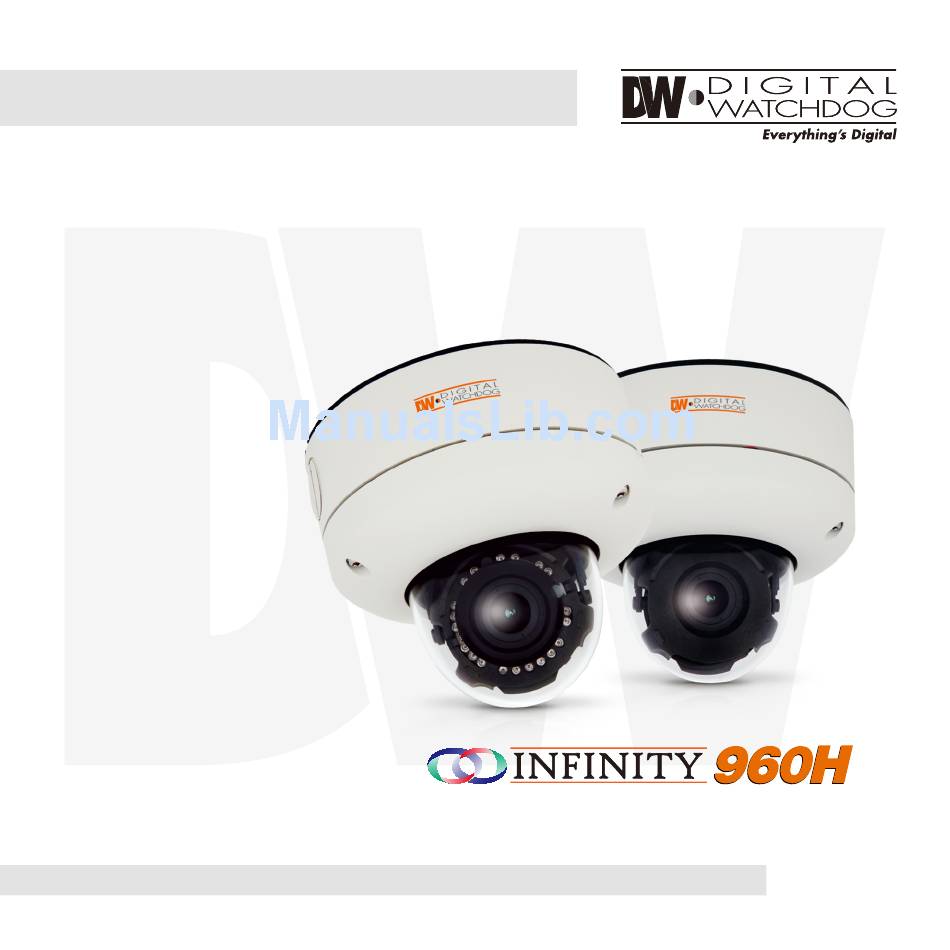

- Page 1 960H SNAP-IT Outdoor Dome Camera DWC-V4567WD DWC-V4567WTIR ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 12132012...
-
Page 2: Fcc Compliance
PRECAUTIONS Do not open or modify. Do not open the case except during maintenence and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages. - Page 3 Table of Contents Introduction Features Parts and Descriptions Dimensions Installation Included Accessories Easy Installation Mounting Installation 9-13 UTP System Connecting to Monitors Adjusting the Camera Adjusting the 3-Axis Gimbal Camera OSD Menu and Glossary 18-34 Troubleshooting Warranty Information 36-37 Specifications 38-39...
- Page 4 EATURES* DWC-V4567WD/ DWC-V4567WTIR 1/3” 960H High Resolution CCD 700 TV Lines 3.3~12mm Varifocal Auto Iris Lens 70ft Range IR with Intelligent Camera Sync [V4567WTIR Only] True Day and Night [V4567WTIR Only] Star-Light (Super Low Light Technology) EWDR (Electronic Wide Dynamic Range)
-
Page 5: Part & Descriptions
PART & DESCRIPTIONS* Lens Power Input Connector DC 12V /AC 24V Voltage RS 485 Primary Video-BNC Output Connector Camera Control Board Bubble Dome Cover Upper Case Flush Mount Case Surface Mount Case Assembly Screws #8 - 32 x 0.75 NO IR Secondary Video-BNC Output Connector Safety Wire Mounting Screws... -
Page 6: Dimensions In Millimeters
DIMENSIONS IN MILLIMETERS (INCHES) Top View Flush Mount 137(5.39”) 101(3.97”) 139(5.47”) 17(0.66”) 28(1.10”) 121(4.76”) 98.8(3.88”) 54(2.12”) Surface Mount 139(5.47”) 36(1.41”) 29(1.14”) 121(4.76”) 118.8(4.67”) 53.8(2.11”) -
Page 7: Installation
INSTALLATION* Included with Outdoor Dome Camera 1. User Manual 5. L-Wrench 2. Mounting Template 6. TORX-T20 Bolt 3. Second Video Jack 7. DC Plug 4. Four (4) Screws and Four (4) Dry Wall Anchors 8. TORX-T20 Wrench... -
Page 8: Easy Installation
EASY INSTALLATION*... -
Page 9: Surface Mount Installation Instructions
SURFACE MOUNT INSTALLATION INSTRUCTIONS* 1. Use the camera’s mounting 2. Drill holes into the drywall and 3. Pull wires through and make template or your camera to insert the drywall mounts into connections. mark the holes as required. the holes. If you need to keep the wiring within the within the camera housing, refer to the diagram below. - Page 10 6. Secure the three (3) assembly 7. Adjust the camera’s position 8. Tighten the three locking screws. by using the 3-Axis Gimbal. screws with the L-Wrench to secure the cover dome over the camera. Flush Mount Installation For a flush mount housing, remove the surface mount base (junction box).
-
Page 11: Wall Mount Installation Instructions
WALL MOUNT INSTALLATION INSTRUCTIONS* 1. Verify all parts are in the box. 2. Insert the wires from the 3. Use the mounting template to camera through the wall make pilot holes. Use the dry mount housing. wall anchors and woods screws to attach the assembly. -
Page 12: Pendant Mount Installation Instructions
PENDANT MOUNT INSTALLATION INSTRUCTIONS* 1. Verify all parts are in the box. 2. Attach the top shield to the 3. Run all necessary cables pendant mount. from the ceiling to the mount. 4. Use the mounting template 5. Connect all cables and verify 6. -
Page 13: Corner Mount Installation Instructions
CORNER MOUNT INSTALLATION INSTRUCTIONS* 1. Verify all parts are in the box. 2. Attach the two compression fittings to the corner bracket. 3. Attach the wall mount bracket to the corner 4. Mount the camera assembly to the corner of mount using the machine screws. - Page 14 UTP SYSTEM* Passive to Passive Passive UTP Monitor UTP Cable ( 300ft) Max. DVR(Digital Video Recorder) Including the passive UTP Passive to Active Active UTP Monitor UTP Cable ( 3,000ft) Max. DVR(Digital Video Recorder) Including the passive UTP...
-
Page 15: Connecting To Monitors
CONNECTING TO MONITORS* Follow the diagram below to make proper connections to a Monitor or CRT Monitor. DC 12V / AC 24V CCTV Monitor NO IR Left Right Down 2nd Video Output Monitor 300.0 Power Connection - 12V DC / 24V AC Dual Voltage (Auto Polarity Detection and Protection) All cameras are equipped with a second video output on the camera’s Control Board. -
Page 16: Adjusting The Camera
ADJUSTING THE CAMERA* Follow the instructions provided below to make any lens adjustments. Focus Zoom Zoom: Tele Wide NO IR Focus: Near Loosen the Zoom & Focus Handles by rotating them counter-clockwise. Adjust the Field of View by moving the handle to the RIGHT (Tele) to zoom in, or to the LEFT (Wide) to zoom out. - Page 17 ADJUSTING 3-AXIS GIMBAL* The Gimbal mechanism yields maximum rotation and placement as show below. NO IR NO IR Rotation 360 Panning 360 NO IR Tilting 90 Tilting 75...
-
Page 18: Module Osd Menu
MODULE OSD MENU* EXPOSURE COLOR DAY NIGHT LENS WB MODE D&N MODE Manual / DC (0~99) AWC / ATW / MANUAL / PUSH AUTO / COLOR / B&W E. SHUTTER R-Y GAIN C-SUP x256 ~ x2, 1/60, 1/100 FLC, 0~255 0~100 1/120 ~ 1/100000 B-Y GAIN... - Page 19 EXPOSURE LENS MANUAL mode supports MANUAL Select DC and control Joystick to DC mode supports an a Fixed Board lens adjust the brightness level from Auto-Iris Varifocal lens. or a Manual Iris lens. 0~99. E. SHUTTER 1/60 is the default shutter speed. Select 1/100FLC for flickerless mode.
- Page 20 EXPOSURE When BLC is enabled, adjust the BLC Level in five areas in Backlight compensation prevents subjects in the screen. Each level can be adjusted from 0 to 255. Move the defined areas of the scene from appearing joystick controller LEFT and RIGHT to adjust the values in too dark when backlighting is present.
- Page 21 EXPOSURE Auto Gain Control automatically adjusts the video gain to enhance picture brightness in low light conditions. Select AGC OFF / LOW / MIDDLE / HIGH STARLIGHT Starlight automatically activates the slow shutter function when a scene is too dark. Adjust the frame integration level from X2 to X256.
- Page 22 COLOR WB MODE Auto White Balance Control mode compensates for color temperature changes between 2000K and 18000K. Auto Tracking White Balance Control mode compensates for color temperature changes between 2500K and 9500K. Users can control the white balance manually by MANUAL changing RED GAIN and BLUE GAIN below.
- Page 23 DAY NIGHT DAY & NIGHT AUTO Camera switches between day and night automatically depending on certain light levels. COLOR Camera always stays in day mode. Camera always stays in night mode. ※ If AUTO is selected, please define the following settings. ▪...
- Page 24 FUNCTION MIRROR Flips the image horizontally. MIRROR / OFF SHARPNESS Sets the image sharpness. The higher number, the sharper the image. 0~25 However, the higher the number, the more digital noise the image may have. GAMMA Controls the output signal level. The higher the setting, the darker the dark colors will be.
- Page 25 FUNCTION Highlight Masking Exposure masks highlights allowing objects to appear more clearly. If ON is selected, the HME level can be adjusted from 0 to 60. EXIT JUMP EXIT Exit the OSD without saving. SAVE & EXIT Exit the OSD after saving the current settings. FACTORY SET Go back to factory default settings.
-
Page 26: Set Window
MOTION MOTION The camera can detect movement and display an alarm on the screen when movement is detected. SET WINDOW If ON is selected, 1 ~ 240 motion areas appear Select from 1 to 240 cells. To exit: go to cell in upper right-hand corner and move joystick to the right to return to the OSD menu. - Page 27 MOTION SHOW INDI. TRACE Set the motion detection indicator to OFF / ICON / TRACE. If ICON is selected, a blue bell will appear in the upper left hand corner of the screen when motion is detected. If TRACE is selected, the area where motion was detected will be highlighted.
- Page 28 PRIVACY Parts of the screen can be hidden by privacy masking. A total of 6 different privacy masking zones are available. MASK 1~ MASK 6 Select ON or OFF for each mask OFF / ON (MASK 1 through 6). If ON is selected, you can set the area to be masked and the shape and color of the mask. Select SET WINDOW.
-
Page 29: Sync Mode
SYNC SYNC MODE Select AUTO / INTER. - Select AUTO (L/L) to synchronize video signals when two or more cameras are using AC power in a switching system. V-PHASE When more than two cameras are installed in a switching system, phase difference in the AC powder line can occur. - Page 30 SET-UP CAMERA ID Assign an ID number for the camera. Select a value from 0 to 254 . TITLE Display a title for the camera on the screen. Select ON / OFF . If ON is selected, define the following settings. - EDIT to select characters.
- Page 31 SET-UP DPC (Dead Pixel Cancellation) Dead Pixel Cancellation automatically removes defective pixels in real time. Select OFF or AUTO. If AUTO is selected, define the following: - WHITE THR.: Cancels the white defective pixels. - BLACK THR.: Cancels the black defective pixels.
- Page 32 SET-UP LANGUAGE Select language to dislpay on the monitor. Select ENG / CHN. BAUDRATE Adjust the data communication speed. Select 2400 / 4800 / 9600 / 14400 / 19200 / 38400.
- Page 33 SET-UP OMNI LENS Set the OMNI LENS menus when you use an Omni Focus Lens. If 0(=ON) is selected, set the following sub-menus. - ALARM Works with the MOTION DETECT function. When motion is detected, the camera gives off an alarm. Select ON or OFF. - READ TIME Set how many seconds to stay zoomed in when alarm occurs.
- Page 34 EXIT EXIT Exit the OSD without saving. SAVE & EXIT Exit the OSD after saving the current settings. FACTORY Go back to factory default settings.
-
Page 35: Troubleshooting
TROUBLESHOOTING Before sending your camera for repair, check the following or contact our technical specialist. No VIDEO Check the coaxial cable and make sure it is connected securely. Check the lens’ iris adjustment at the menu setup of the camera. Check the power supply and make sure the camera has the proper voltage and current. -
Page 36: Warranty Information
WARRANTY INFORMATION* Digital Watchdog (referred to as “the Warrantor”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR : For the initial five (5) years and one (1) year on IR LED from the original purchase date,... -
Page 37: Limits And Exclusions
LIMITS AND EXCLUSIONS* There are no express warranties except as listed above. The Warrantor will not be liable for incidental or consequential damages (including without limitation or damage to recording media), resulting from the use of these products or arising out of any breach of the warranty. -
Page 38: Specifications
SPECIFICATIONS* VIDEO Image Sensor 960H CCD Total Pixels 1020 (H) x 507 (V), 520K Pixels Scanning System 2 : 1 Interlace Frequency 15.734KHz (H), 59.95Hz (V) Synchronization Internal or Auto Horizontal Resolution 650 TV Lines [Color], 700 TV Lines [B/W] Minimum Illumination F1.2 (30IRE): 0.3 Lux [Color]... - Page 39 OPERATIONAL Sharpness 0~25 Gamma MANUAL / 0.45 / 0.60 / 1.00 Motion Detection OFF / ON Privacy Zones OFF / ON (6 Programmable Zones) Title ON / OFF (Up to 16 Characters) Language ENGLISH / CHINESE ENVIRONMENTAL Operating Temperature C ~ 55 C (14 F ~ 131 Operating Humidity...
- Page 40 5436 W. Crenshaw St. Tampa, FL 33634 Tel : 866-446-3595 / 813-888-9555 Fax : 813-888-9262 www.Digital-Watchdog.com technicalsupport@dwcc.tv Technical Support Hours : Monday-Friday 8:30am to 8:00pm Eastern Time...
