Owner Manual
Operating Instructions

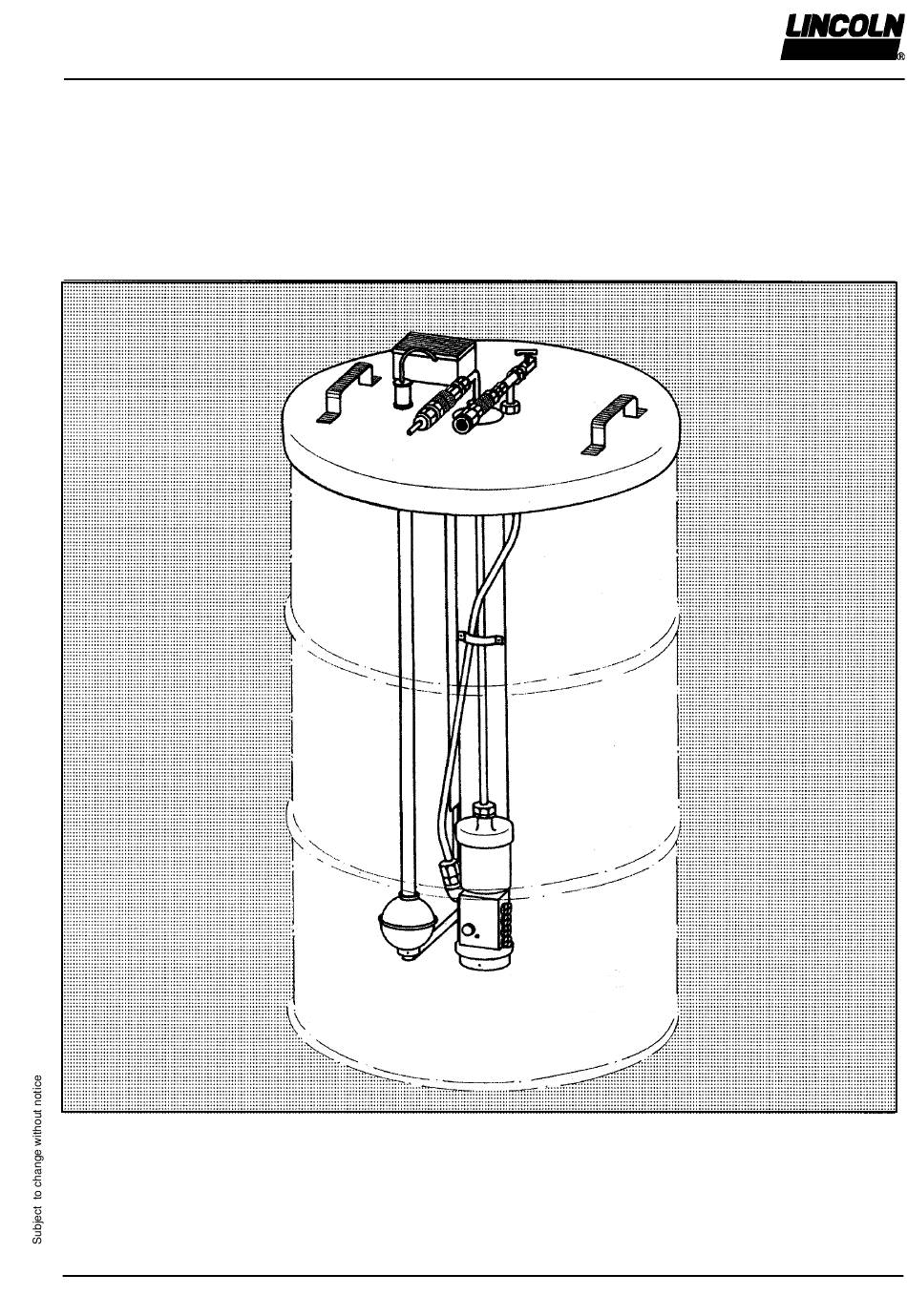

3.1A-48001-C03
Pneumatic barrel pumps
Model SAF1-YL and SAF2-YL
1080a94
LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAF1-YL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lincoln SAF1-YL

Summary of Contents for Lincoln SAF1-YL

  • Page 1 Owner Manual Operating Instructions 3.1A-48001-C03 Pneumatic barrel pumps Model SAF1-YL and SAF2-YL 1080a94 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...

  • Page 2: Table Of Contents

    Erection and Assembly ........9 Erection of the Pump ......... 9 Electrical Connection ........9 Page 2 of 20 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...

  • Page 3: Safety Instructions

    VDE and the lo- cal power supply companies). Page 3 of 20 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 4 „Commissioning“ must be observed. the machine in question meets the requirements of the EC gui- delines. Page 4 of 20 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...

  • Page 5: Description

    · easy removing and installation on a lidded barrel by means of a stand with winch (see „Accessories“) Page 5 of 20 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...

  • Page 6: Structure

    (part no. 226-13728-1, nipple: part no. 251-14073-1) air relief cock air relief cock (part no. 68042) (part no. 68042) Page 6 of 20 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...

  • Page 7: Electrical Equipment

    Contact protection measures 4431a02 Fig. 2.5.3: Contact protection measures Page 7 of 20 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...

  • Page 8: Mode Of Operation

    The pump SAF2 (for 2 pinions)supplies both lubricant quantities to the two outlets. Page 8 of 20 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...

  • Page 9: Erection And Assembly

    (in spray systems, a filter is already installed on the mounting plate). Page 9 of 20 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...

  • Page 10: Maintenance And Repairs

    Refill oil, if necessary. · Check and clean the air filter of the air maintenance unit Page 10 of 20 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...

  • Page 11: Troubleshooting

    • Check pressure gauge on air maintenance unit. If necessary, increase pressure at compressor and check air lines. Page 11 of 20 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...

  • Page 12: Adjustments

    Pause time 4 sec Result: 1 lube cycle every 12 seconds = 5 cycles per minute. Page 12 of 20 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 13 = 25 sec – 8 sec = 17 sec This means, a lube pulse is carried out every 25 seconds. Page 13 of 20 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...

  • Page 14: Spare Parts List

    Operating Instructions 3.1A-48001-C03 Spare Parts List Pump Element with Drive Cylinder SAF 1 part-no. 504-31626-2 1023a95 Page 14 of 20 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 15 R 1/8 222-12418-5 check valve assembly 504-30260-1 kit of seals (items 6,8,10,11,12,13,15,16,17) 515-31662-1 Page 15 of 20 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 16 Owner Manual Operating Instructions 3.1A-48001-C03 Pump Element with Drive Cylinder SAF 2 Part-no. 504-31629-2 1024a95 Page 16 of 20 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 17 R 1/8 222-12418-5 check valve assembly 504-30260-1 kit of seals (items 6,8,10,11,12,13,15,16,17) 515-31662-1 Page 17 of 20 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...

  • Page 18: Accessories

    OD 8 x 1040 225-12324-8 high pressure hose OD 8 x 1540 225-12325-1 Page 18 of 20 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...

  • Page 19: Declaration

    OD 8 x 1040 225-12324-8 high pressure hose OD 8 x 1540 225-12325-1 Page 19 of 20 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 20 Electric equipment of machines Part 1: General requirements Walldorf, June, 2002 , Dr. Ing. Z. Paluncic Page 20 of 20 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
