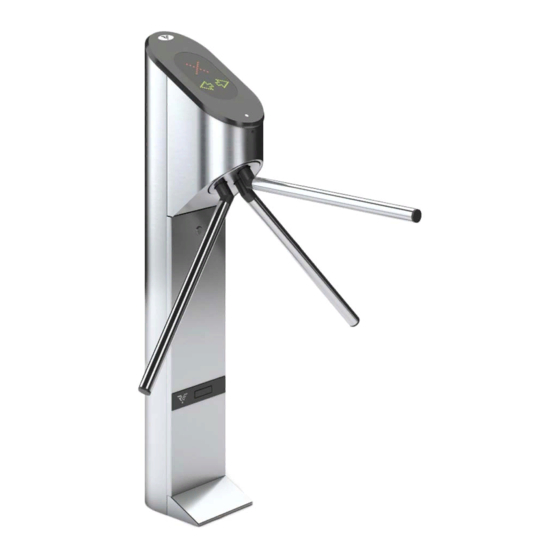

- Page 1 MAINTENANCE OPERATIONS Praktika T-01 turnstile www.oxgard.com info@oxgard.com Tel.+7(812) 366-15-94...
-
Page 3: Table Of Contents
Contents 1. General information ................. 4 2. Conditions for maintenance ..............5 4. Checking turnstile parts ................13 5. Lubrication of moving parts ..............14 6. Assembling and operation checking of the turnstile ......17 Maintenance operations... -
Page 4: General Information
1.4. MO includes the following scope of work: partial disassemble of the turnstile, cleaning of load-bearing frame, checking of parts and units fixation, lubrication of subject to wear parts of actuating device, checking of belt tension, setting the dismantled parts and a general inspection of the turnstile. Praktika T-01 turnstile... -
Page 5: Conditions For Maintenance
2. Conditions for maintenance CAUTION! It is strictly forbidden to carry out work with powered turnstile. Failure to follow these safety requirements could result in damage to human life and health, total or partial loss of product workability and (or) auxiliary equipment. CAUTION! Do not remove motherboard located under the LED panel. - Page 6 • remove the screw fixing the LED panel using crosshead screwdriver (Fig. 3); • slide the LED panel to the direction indicated in Fig. 4, and lift it up; • Disconnect the cable from the LED panel. Praktika T-01 turnstile...
- Page 7 Fig. 2 Maintenance operations...
- Page 8 Fig. 6. Arm shall be free rotating freely about the short axis. Fold the second arm in the same manner by turning the disc. The result is shown in Fig. 7. Praktika T-01 turnstile...
- Page 9 Fig. 5 Maintenance operations...
- Page 10 Fig. 6 Fig. 7 Praktika T-01 turnstile...
- Page 11 Fig. 8 Fig. 9 Maintenance operations...
- Page 12 3.5. Removing of the lower cover of turnstile: • Remove two M6 DIN7985 screws (Fig. 8); • Remove M6 GOST11738-84 screw (Fig. 9); • Remove the lower cover by moving it vertically down, as shown in Fig. 10 Fig. 10 Praktika T-01 turnstile...
-
Page 13: Checking Turnstile Parts
4. Checking turnstile parts 4.1. Clean the load-bearing frame from contamination. 4.2. Check that all cables are securely connected. 4.3. If necessary check and tighten the screw joints of turnstile: 4.4. Check the condition of the toothed belt and its tension (Fig. 11). 4.5. -
Page 14: Lubrication Of Moving Parts
5.4. The rotation axis of unlocking arms cam (Fig. 15). 5.5. The connection of lock pin and arms-unblocking cams (Fig. 16). The operation shall be done for each arm by rotating the disc. Hole in Fig. 16 is shown in the conventional manner. Fig. 12 Praktika T-01 turnstile... - Page 15 Fig.13 Fig.14 Maintenance operations...
- Page 16 Fig.15 Fig.16 Praktika T-01 turnstile...
-
Page 17: Assembling And Operation Checking Of The Turnstile
6.1. If any troubles or defects are found out during MO it is advised to contact our service department for advice, contact details are available online: www.oxgard.com 6.2. If it is necessary to repair damaged painted surfaces, powder paint identical to the damaged (RAL9005) shall be used in accordance with instructions for its use. - Page 18 Praktika T-01 turnstile...
- Page 19 Maintenance operations...
