VOZROZHDENIE, LLC
OKPD 2 26.30.50.110
TU 26.30.50-007-33120038-2017
APPROVED
VZR.235900.000 VZR.235900.000 LU

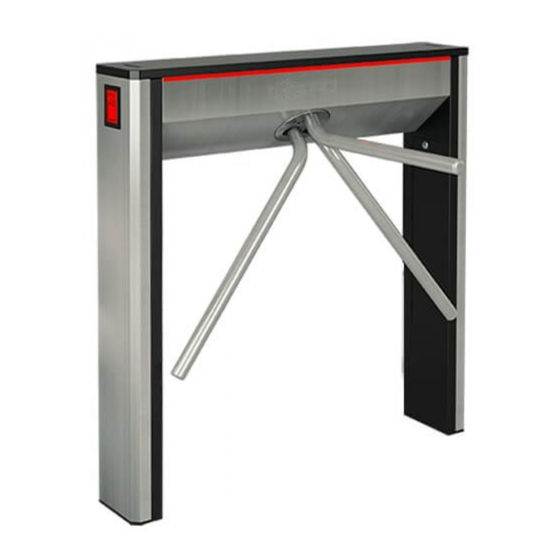

TURNSTILE
MODEL CUBE С-04
С-04-c, С-04-К, С-04-Кc, С-04-H, С-04-Hc, С-04-НК, С-04-НКc
VZR.235900.000 OM
OPERATIONAL MANUAL
Sheets 48
2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CUBE C-04 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Oxgard CUBE C-04 Series

Summary of Contents for Oxgard CUBE C-04 Series

  • Page 1 VOZROZHDENIE, LLC OKPD 2 26.30.50.110 TU 26.30.50-007-33120038-2017 APPROVED VZR.235900.000 VZR.235900.000 LU TURNSTILE MODEL CUBE С-04 С-04-c, С-04-К, С-04-Кc, С-04-H, С-04-Hc, С-04-НК, С-04-НКc VZR.235900.000 OM OPERATIONAL MANUAL Sheets 48 2019...

  • Page 2: Table Of Contents

    VZR.235900.000 OM CONTENTS Description and Operation ......................4 1.1 Description and operation of the Product ................4 1.3 Card collector description and operation (optionally) ............11 Intended Use ..........................12 2.1 Operating Limitations ......................12 2.2 Preparing the product for use ....................13 2.3 Product Operation ........................
  • Page 3 VZR.235900.000 OM This Operational Manual (OM) applies to Turnstile Oxgard Cube С-04 and its modifications (hereinafter referred to as “the product”). The firmware version of the product: FW v2.2 The manufacturer reserves the right to change the product’s scope of supply, technical data and appearance without any additional notices.

  • Page 4: Description And Operation

    1. DESCRIPTION AND OPERATION Description and operation of the Product Turnstile Oxgard Cube С-04 is designed to control access and manage people’s streams by dividing their stream in a “one-by-one” manner. The product can be used at checkpoints of enterprises, organizations and banks, educational institutions, sports and entertainment centers, stores, stations and other facilities.
  • Page 5 VZR.235900.000 OM The individual features of the product modifications. The turnstile housing can be designed in two options: Option No.1: side covers and central overlays are made of stainless steel, and the internal stand elements and the top cover are painted (color according tor the Customer's choice).
  • Page 6 VZR.235900.000 OM Option No.2: all overlay turnstile elements shall be made of stainless steel. Table 3 – Complete set of turnstile modifications. Table 3 – Turnstile modifications (Option No.2) Modification Features 1) two readers are built in the housing with LED illumination; 2) built-in card collector, containing 200 visitor cards;...
  • Page 7 VZR.235900.000 OM The product Specifications are given in Table 4 Table 4 - Specifications Parameter description Value Overall dimensions (HхWхL), mm: 1000х950х735 - in operating condition 1000х950х192 - with assembled arms Weight, kg 50.0 Temperature range, °С: - operation +1...+40 - transportation and storage +1...+40 Relative air humidity, %, maximum...
  • Page 8 VZR.235900.000 OM Product design. The side covers, central overlays and products are made of stainless steel, and the internal stand elements and the top cover are painted (color according tor the Customer's choice). The turnstile’s barrier arms are made of ground stainless steel.
  • Page 9 VZR.235900.000 OM 1.1.6 Display system. The turnstile front display panel is located in the turnstile top part with the Caprolon insert. Figure 2 - Turnstile modes of operation are displayed on the front display panel (1) and are duplicated with the side display panels (2). 1 - front display model;...
  • Page 10 VZR.235900.000 OM 1.2 Description and Operation of Oxgard Praktika RC Panel Multi-purpose Oxgard Praktika console is designed for control of Oxgard turnstiles. 1.2.1 The housing is made of stainless steel; the control buttons and the LED operation mode indicators are located on the front side. Specifications are given in Table 5.

  • Page 11: Card Collector Description And Operation (Optionally)

    VZR.235900.000 OM Card collector description and operation (optionally) 1.3.1 Card collector purpose The card collector is designed for collection and storage of swipe cards upon leaving the facility. Flexible card collector controller operation logic and connection allows for its integration with any access monitoring and control systems.

  • Page 12: Intended Use

    VZR.235900.000 OM 2. INTENDED USE 2.1 Operating Limitations ATTENTION: FAILURE COMPLY WITH SAFETY REQUIREMENTS SPECIFIED IN THIS SECTION MAY CAUSE DAMAGE TO HUMAN LIFE AND HEALTH, AND FULL OR PARTIAL LOSS OF THE OPERABILITY OF THE PRODUCT AND/OR AUXILIARY EQUIPMENT. ATTENTION: TURNSTILE INSTALLATION...

  • Page 13: Preparing The Product For Use

    VZR.235900.000 OM IT IS NOT ALLOWED: INSTALL THE POWER SUPPLY UNIT INSIDE THE TURNSTILE CASING, BECAUSE THIS MAY CAUSE ELECTROCUTION. INSTALL THE TURNSTILE ANYWHERE OUTSIDE DRY AND HEATED ROOMS. OBSTRUCT OR ACCELERATE THE MOVEMENT OF THE TURNSTILE BARS. FOR CLEANING ANY PASTES OR FLUIDS THAT ARE...
  • Page 14 VZR.235900.000 OM 2.2.3 Product switching on. The turnstile arrives to the Customer in the assembled state (transportation mode). Prior to starting operation, it shall be switched to working position: pull off the arm fixation locking device (Figure – 7) holding one arm with hand in the fixed position, distribute the rest of the arms in the operating position.
  • Page 15 VZR.235900.000 OM 2.2.4 Inspection and checkout of product readiness for use: Figure 3 - possible free travel of the arm. In “STOP” mode, it makes 6 degrees on each side. 6 deg Figure 3 - Possible free travel of the arm in “STOP” mode 2.2.5 Guidelines on product orientation.
  • Page 16 VZR.235900.000 OM 50 mm max 200 mm min 1 - barrier Recommended diagram Non-recommended diagram Figure 4 - Turnstile passage zone arrangement. 2.2.6 Control console settings Figure 5 – Appearance of RC panel. In relation to the user, the product can be installed using different methods.

  • Page 17: Product Operation

    VZR.235900.000 OM upon power supply disconnection. For return to original option, it is necessary to perform the above mentioned sequence of operations again. Figure 5 - control buttons 1 (left), 2 (stop), 3 (right), 4 (antipanic) and the product operation mode LED indicators. 1 - left;...
  • Page 18 VZR.235900.000 OM 2.3.2 Product operation by means of RC panel Figure 5 - The LED indicator displaying the turnstile operating mode is located above each RC panel’s button. “Stop” Mode The “Stop” mode is set during switching on the product. Switching to “Stop” mode from the other mode is performed using button 2.
  • Page 19 VZR.235900.000 OM Push and hold button 2 for switching to this mode; push button 1(3) after that. After that, both buttons may be released. The multi-passage mode is displayed on RC panel by green indication above button 1(3), the red LED indicator above button 2 does not glow. The side display panel glows green demonstrating free left (right) passage;...
  • Page 20 VZR.235900.000 OM “Antipanic” Mode Switching to this mode is carried out mechanically. Put the turnstile to “Antipanic” mode; for this purpose, push button 4 on RC panel. Pull off the arm fixation locking device (Figure – 7) holding one arm with hand in the fixed position, turn over the second arm clockwise with the other hand so that all bars match each other (Figure 7 - 1).
  • Page 21 VZR.235900.000 OM Figure 7 - Then, screw down all assembled arms. Figure 7 - Turnstile view with assembled bars The side display panels glow green demonstrating free left (right) passage; on the front display panel, two divergent groups of red lights are moving with increased speed.
  • Page 22 VZR.235900.000 OM 2.3.3 Product operation by means of card collector Upon power up, the suspended mode is set. Switching to the other mode is carried out upon swipe card presentation. Passage by Permanent Visitor Card Upon authorized permanent visitor card presentation (it is just enough to hold the card to readout device).
  • Page 23 VZR.235900.000 OM For this purpose, it is necessary to remove the turnstile and get access to the card collector board. Figure 8 - Open it with the key and remove both containers located inside the turnstile stands. 1 - card collector container; 2 - side cover;...
  • Page 24 VZR.235900.000 OM Figure 9 - Release 4 top cover mounting studs and remove the cover in the specified direction. 1 - cover mounting studs Figure 9 - Top cover dismounting Turnstile Cube С-04 Operational Manual...
  • Page 25 VZR.235900.000 OM Figure 10 - Push and hold button BUT1 on the card collector board. With the pushed button, the card collector door is forcibly opened and continuous sound signal sounds. Extract the object preventing system normal operation. Figure 10 - Release button BUT1. Figure 10 - Card collector Board Appearance Install the top cover and the containers back.

  • Page 26: Procedure For Actions In Extreme Situations

    VZR.235900.000 OM Procedure for actions in extreme situations For passage emergency opening, use “Antipanic” mode: in this mode assemble all bars on the product and free the passage. ATTENTION: DURING THE OPERATION OF THE PRODUCT, PAY ATTENTION TO THE FACT THAT ELECTRIC CIRCUITS, IN CASE OF SHORT CIRCUIT, INSULATION BREAKDOWN OR SPARKLING, MAY REPRESENT A FIRE HAZARD.

  • Page 27: Product Calibration

    VZR.235900.000 OM Product Calibration ATTENTION: PRIOR TO STARTING CALIBRATION, INSTALL ONE OF THE ARMS IN THE MIDDLE OF FREE PASSAGE IN THE BLOCKING POSITION. Perform calibration in case of turnstile abnormal operation. Calibration by means of control console: 1) cut power supply from the turnstile using the switch on the power supply unit; 2) switch on power supply, all LEDs on RC panel will start glowing first and then they will go off, except button (2);...

  • Page 28: Maintenance

    VZR.235900.000 OM 3 MAINTENANCE 3.1 General Guidelines Carry out the turnstile maintenance (hereinafter referred to as MTN) in accordance with this Operational Manual. 3.1.1 In the course of operation, to maintain the product serviceability and ensure its rated service life, it is required to perform the product MTN periodically, including during the warranty period.

  • Page 29: Safety Precautions

    VZR.235900.000 OM 3.2 Safety Precautions Follow safety precautions during MTN. MTN to be carried out by technicians who have passed special training. DO NOT: CARRY OUT OPERATIONS WITH THE ENERGIZED TURNSTILE. FAILURE TO COMPLY WITH THESE SAFETY REQUIREMENTS MAY CAUSE DAMAGE TO HUMAN LIFE AND HEALTH, AND FULL OR PARTIAL LOSS OF OPERABILITY OF THE PRODUCT AND/OR AUXILIARY EQUIPMENT.

  • Page 30: Product Maintenance Procedure

    VZR.235900.000 OM Product maintenance procedure MTN includes the following scope of works: visual inspection of the product’s condition; turnstile partial disassembly, load-carrying frame cleaning; checkout of turnstile parts and assemblies for fixation; lubrication of the actuating mechanism and locking mechanisms subjected to parts wear;...

  • Page 31: Product Partial Disassembly

    VZR.235900.000 OM Product partial disassembly For getting access to all required turnstile assemblies, it is necessary to carry out its partial disassembly. Figure 11 - This scope of works includes dismounting of the card collector containers (1), the top (3) and side covers (2), and the barrier arm assembly (4) of the turnstile.
  • Page 32 VZR.235900.000 OM 3.5.2 Dismounting of card collector containers. Open both containers located inside the turnstile stands with the key. 3.5.3 Remove the turnstile top cover. Figure 9 - For top cover dismounting, unscrew 4 studs. After that, remove the cover in the specified direction. 3.5.4 Remove the turnstile side covers.

  • Page 33: Inspection Of Product Assemblies

    VZR.235900.000 OM Figure 13 - Undo two М6 screws (1) using hexagonal key S5 and remove the assembly. 1 – screw; 2 - arm locking device Figure 13 - Dismounting of barrier arm assembly Inspection of product assemblies 3.6.1 Clean the load-carrying frame off contaminations. 3.6.2 Check up all cables for fastening reliability.

  • Page 34: Lubrication Of Product Mechanism Moving Parts

    VZR.235900.000 OM Lubrication of product mechanism moving parts Lubricate it using 2-3 drops of 5W-20 viscosity grade lube oil for each moving assembly. Figure 14 - Lubricate turnstile.turnstile mechanism elements (1, 2, 3, 4) 1, 2, 3, 4 – mechanism elements Figure 14 - Turnstile mechanism elements Product assembly and serviceability check Assemble the product in reverse order:...
  • Page 35 The List of approved distributors' and service center addresses is given in Appendix A and is available on the web-site: www.oxgard.com In case it is necessary to repair the damaged painted surfaces, you should use the powder paint similar to the damaged one (RAL9005) following the application instructions.

  • Page 36: Current Repair

    VZR.235900.000 OM CURRENT REPAIR Product current repair The product current repair is not made. In case of malfunctions listed in Table 6, take the specified actions. Table 6 - Typical product malfunctions Malfunction Action PSU is connected, but the 1) Check the power wires for their correct connection; turnstile does not function 2) Check the fuse on the motherboard.

  • Page 37: Current Repair Of Product Component Parts

    VZR.235900.000 OM Current repair of product component parts Current repair of product component parts shall be carried out by replacing the faulty parts with the known good parts. In case it is impossible to replace them or no available known good parts for the product, the proprietary repair method shall be used.

  • Page 38: Storage

    VZR.235900.000 OM STORAGE The product is allowed for storing in dry heated rooms (without moisture condensation) under temperature from +1 to +40°С. There shall be no vapors of acids and alkalies, as well as gases causing corrosion in the storage rooms. The short-term, maximum for 3 days, storage of the product in the original packages is allowed in the dry non-heated rooms and in the enclosed transport bodies.

  • Page 39: Transportation

    VZR.235900.000 OM TRANSPORTATION The product in factory packaging can be transported by air, closed motor and railroad transport means when fitted with protection against direct exposure to precipitation and dust without distance limitation. When transporting and storing the product on EURO pallets, it is allowed for palleting boxes in two rows.

  • Page 40: Disposal

    VZR.235900.000 OM DISPOSAL The product shall be disposed of in conjunction with its component parts upon service life expiry. The disposal example may involve the product disassembly (dismounting) and separation of its components according to homogeneous group, its transformation to training aid and for its unintended use. Turnstile Cube С-04 Operational Manual...
