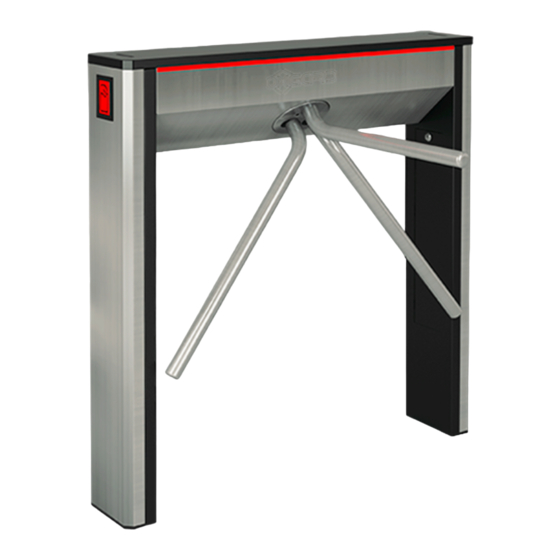

- Page 1 VOZROZHDENIE LLC OKPD 2 26.30.50.110 TU 26.30.50-007-33120038-2017 APPROVED BY VZR.235900.000 LU TURNSTILE CUBE С-04 MODEL C-04-s, C-04-K, C-04-Ks, C-04-N, C-04-Ns, C-04-NK, C-04-NKs VZR.235900.000 IM INSTALLATION MANUAL 42 sheets 2020...
-
Page 2: Table Of Contents
VZR.235900.000 IM TABLE OF CONTENTS General instructions ........................4 Safety precautions .......................... 5 Preparing the product for installation ................... 6 3.1 Procedure for transporting the product to the installation place ..........6 3.2 Rules for unpacking the product ..................... 6 3.3 Rules for visual inspection of the product ................ - Page 3 VZR.235900.000 IM This Installation Manual (IM) applies to Oxgard Cube С-04 turnstile and its variants (hereinafter referred to as the product). Product firmware version: FW v.d 4 IM defines rules and a procedure for installation and commissioning of the product.
-
Page 4: General Instructions
VZR.235900.000 IM GENERAL INSTRUCTIONS For general safety when assembling and installing the product, take into account all the recommendations and instructions contained herein. Before starting installation work, completely de-energize the product. DO NOT: INSTALL THE POWER SUPPLY UNIT INSIDE THE TURNSTILE HOUSING AS IT MAY RESULT IN ELECTRIC SHOCK TO PERSONS. -
Page 5: Safety Precautions
VZR.235900.000 IM SAFETY PRECAUTIONS Installation should be carried out with observance of “Regulations for Operation of Consumer Electrical Installations” and “Safety Regulations for Operation of Consumer Electrical Installations”. The product shall only be installed by qualified personnel trained in handling of electrical devices and instructed on safety precautions when handling the electrical installations with voltages of up to 1000V. -
Page 6: Preparing The Product For Installation
VZR.235900.000 IM PREPARING THE PRODUCT FOR INSTALLATION Procedure for transporting the product to the installation place The product in the original package can be transported without range limitation by air, enclosed road and rail transport provided it is protected against direct exposure to precipitation and dust. - Page 7 VZR.235900.000 IM 3.3.2 Visually inspect the product. There should be no visible damage on the product. 3.3.3 If any damage is found, prepare a Claim Report. Figure 1 – overall dimensions of the turnstile. 3.3.4 Figure 1 – Overall dimensions of the turnstile Cube С-04 Turnstile Installation Manual...
-
Page 8: Product Installation Place Requirements
VZR.235900.000 IM Product installation place requirements ATTENTION: TO AVOID WAVING AND/OR OVERTURNING DURING OPERATION, INSTALL THE TURNSTILE SECURELY. IN CASE OF PRODUCT INSTALLATION ON LOW STRENGTH FLOOR - TAKE MEASURES FOR FLOORS STRENGTHENING IN THE PLACE OF INSTALLATION. Figure 2 – when installing the turnstile, it is necessary to consider the possible free travel of the arm (it makes 6 degrees on each side in STOP mode). -
Page 9: Procedure For Checking Compliance Of The Installation Place
VZR.235900.000 IM Procedure for checking compliance of the installation place ATTENTION: THE PASSAGE ZONES SHALL BE ARRANGED TO ALLOW RECORDING OF PASSAGES DURING TURNSTILE OPERATION UNDER ACS CONTROL AND TO AVOID UNAUTHORIZED PASSAGES. Figure 3 – turnstile passage zone arrangement and guidelines on 3.5.1 product orientation. -
Page 10: Installation And Dismantling Of The Product
VZR.235900.000 IM INSTALLATION AND DISMANTLING OF THE PRODUCT Equipment required Equipment to be used for the turnstile installation: electric hammer drill; 10 mm carbide drill bit for drilling anchor holes in the floor (we recommend to use the anchor with the screw of the FH 10/10 SK type); S5 hollow head screw hex wrench;... -
Page 11: Product Installation
VZR.235900.000 IM Product installation ATTENTION: THOROUGHLY READ THIS SECTION OF THE MANUAL BEFORE INSTALLING THE PRODUCT. Figure 4 – Main panels of the turnstile Figure 4 – to gain access to all the required turnstile assemblies, it is necessary to partially disassemble it – dismantle the card collector containers (1), top (3) and side covers (2) of the turnstile, as described in Section 3.5 of the OM. - Page 12 VZR.235900.000 IM 4.2.1 Prepare a horizontal area at the product installation site. 4.2.2 Prepare a chase or cable conduit going from the site to the place of installation of the PSU, CP and, where necessary, to the ACS and SFAS connection point.
- Page 13 VZR.235900.000 IM 1 – cable entry holes Figure 6 – Turnstile mounting dimensions Figure 6 – lead the cables through the hole (1) in the bottom 4.2.4 plate of the turnstile stands. 4.2.5 Lay the CP connection cable, PSU cable and, if provided, the ACS and SFAS cables in the cable conduit or chase.
- Page 14 VZR.235900.000 IM 1 - cable runs; 2 - cable entry hole Figure 7 – Laying of control and power cables 4.2.8 Align the holes in the turnstile stands with the floor anchors. Check the verticality of installation in 2 planes, if necessary, use steel gaskets of required thickness for correct installation of the turnstile.
-
Page 15: Dismantling The Product
VZR.235900.000 IM Fasten the turnstile stands with 6 screws, screwing them into the corresponding anchors using a spanner or open-end wrench with a size for 10 mm nut. Figure 4 – install the side (2) and top (3) covers, card collector containers (1) of the turnstile. -
Page 16: Connecting And Setting The Product
VZR.235900.000 IM CONNECTING AND SETTING THE PRODUCT Appendix C – Turnstile connection diagram. Connect the PSU, CP, and ACS using the cross-board. Figure 8 – location of boards under the top cover on the turnstile stand. Indication control board; Card collector control board; Encoder board;... - Page 17 VZR.235900.000 IM To do this, open with a key and remove both containers located inside the turnstile stands, release 4 studs (Figure 9 – 1) securing the top cover and remove the cover in the indicated direction. 1 – cover fastening studs Figure 9 –...
- Page 18 VZR.235900.000 IM Figure 10 – Appearance of the control board Table 1 shows the turnstile operating modes, they are set using the BUT button. To select the required turnstile mode, it is necessary to: - press and hold the BUT button until a short beep. The turnstile operating mode is selected based on the number of short beeps.
- Page 19 VZR.235900.000 IM Table 1 shows the turnstile operating modes with different number of signals after pressing the BUT button. Table 1 – Turnstile operating mode Turnstile of short beeps after Turnstile operating mode Number operating pressing the BUT button mode number 0 (simple Reboot (the mode is similar to turning the...
-
Page 20: Power Connection
VZR.235900.000 IM Power connection DO NOT: USE THE POWER SUPPLY UNITS WITH AN OUTPUT CURRENT BELOW 3.0 A. CONNECT THE TURNSTILE USING POWER CABLE WITH CROSS- SECTION BELOW 1.5 MM WHEN LENGTH OF THE SUPPLY CABLE IS MORE THAN 10 M – IT IS RECOMMENDED TO USE CABLE WITH CROSS- SECTION OF 2.5 MM ATTENTION: IT IS NOT RECOMMENDED TO INSTALL POWER SUPPLY UNIT AT A DISTANCE OF MORE THAN 25 M FROM THE TURNSTILE. -
Page 21: Control Panel Connection
VZR.235900.000 IM Control panel connection Figure 11 – the CP is connected through the TJ6P6C telephone socket to the X24 socket with the PULT inscription using the RJ 12 (TP-6P6C) telephone socket. ТJ6P6C RJ 12 (ТР-6P6C) Figure 11 – Control panel connection Figure 12 –The turnstile CP should be connected on the basis of terminal identifications in accordance with the figure Cube С-04 Turnstile... -
Page 22: Access Control And Management System Connection (Optional)
VZR.235900.000 IM Figure 12 – Arrangement of the control panel cable wires. Access control and management system connection (optional) The ACS controller should be connected to the terminal group Control on the cross-board. Identification of terminals: LEFT, RIGHT, STOP, AР, GND. The terminal assignment is shown in Table 2. - Page 23 VZR.235900.000 IM Inputs for ACS connection differ in priority: AP input has the highest priority. If the AP command was sent to this input (AP was closed to GND terminal), the turnstile is in free passage mode and DOES NOT RESPOND(!) to any commands other than STOP;...
- Page 24 VZR.235900.000 IM Triggering of one of the terminal groups indicates that a pass has been made in appropriate direction (PassOk1 - to the right, PassOk2 - to the left). The dry contact closes/opens when the arm is rotated at an angle of 60 degrees and returns to its original position after complete passage.
- Page 25 VZR.235900.000 IM Figure 13 – Location of diagnostic LEDs on the motherboard. Figure 14 – To connect the controller, it is necessary to remove the top cover from the turnstile, fold the board on swinging brackets, make connections with the ACS and fix the wires to the board protective cover. Cube С-04 Turnstile Installation Manual...
- Page 26 VZR.235900.000 IM Figure 14 – Connecting the controller. Cube С-04 Turnstile Installation Manual...
-
Page 27: Control Panel Connection To The Acs Controller
VZR.235900.000 IM Control panel connection to the ACS controller In some cases, turnstile CP should be connected directly to ACS controller, since the system responds to passing allowed from the control panel (without the use of controller) as to “hacking”. To use this diagram for connecting the turnstile, it is necessary to set the control board to mode number 6 using the BUT button (see Table 1). - Page 28 VZR.235900.000 IM Table 3 – ACCES OUT terminal group assignment Identification of terminals Terminal assignment LEFT Status of LEFT button (1) RIGHT Status of RIGHT button (3) STOP Status of STOP button (2) AР Status of AP button (4) LEFT, RIGHT, STOP and AР outputs represent current status of the CP buttons –...
-
Page 29: Connecting The Card Collector
VZR.235900.000 IM Figure above is the wiring diagram for CP connecting to ACS controller. The controller controls the turnstile in this variant using the LEFT, RIGHT and STOP terminals. An important feature of connecting CP through ACS controller is inability to use turnstile modes which are set by means of combinations of control panel buttons (except for free passing of potential control mode, Section 5.3 of this Manual). - Page 30 VZR.235900.000 IM The card collector board is located under the top cover of the turnstile. To connect the card collector it is necessary to remove the top cover Figure 17 – appearance of the card collector board and layout of connectors for connecting PSU, AD and ACS.
- Page 31 VZR.235900.000 IM It is permissible to use one power supply unit to connect the card collector and the turnstile. Connect the cable of power supply unit to the card collector board. Connect (+) and (-) terminals of PSU to (+12V) and (GND) terminals on the board, respectively.
- Page 32 VZR.235900.000 IM For these reasons, connecting this group of terminals is crucial for system throughput. 5.5.3 Connecting ACS controller. Block diagrams of ACS controller using a card collector are given in Appendix D. Figure 17 – ACS controller is connected to the card collector using three groups of terminals: Take Card-GND, Free Pass-GND and Card Inside.
- Page 33 VZR.235900.000 IM If a signal is received to allow passage without the card withdrawal, the card collector generates a signal for AD using Let Go terminal group. The side indication band will light up in green. The card collector Free Pass input can operate in both potential and pulse mode (triggering when the terminal is closed).
-
Page 34: Comprehensive Inspection
VZR.235900.000 IM COMPREHENSIVE INSPECTION Visual inspection and verification of the product readiness for 6.1.1 Check the mounts of the turnstile parts and assemblies 6.1.2 Check that all cables are securely attached. 6.1.3 Turn on the turnstile and perform health check by carrying out several test passes. -
Page 35: Acceptance Of The Installed Product
VZR.235900.000 IM ACCEPTANCE OF THE INSTALLED PRODUCT Acceptance of the installed product is carried out as follows: representative of installation contractor demonstrates security of product installation; notes on the product installation are made in the Product Service Record Section of the Logbook VZR.235900.000 LB;... -
Page 36: Appendix A - Brief Description Of Can2.0 Data Bus
VZR.235900.000 IM APPENDIX A — Brief description of CAN2.0 data bus A modern noise-resistant CAN2.0 standard bus is used for CP operation. Using the CAN2.0 standard, length of the signal transmission cable can reach values of more than a kilometer, but correct operation at such distances depends on many factors. -
Page 37: Appendix B - Position Of Mounting Holes Relative To The External Dimensions Of The Turnstile
VZR.235900.000 IM APPENDIX B — Position of mounting holes relative to the external dimensions of the turnstile Figure 18 – position of mounting holes relative to the external dimensions of the turnstile. Figure 18 – Position of mounting holes relative to the external dimensions of the turnstile Cube С-04 Turnstile Installation Manual... -
Page 38: Appendix C - Turnstile Connection Diagram
VZR.235900.000 IM APPENDIX C — Turnstile connection diagram Figure 19 – Turnstile connection diagram Cube С-04 Turnstile Installation Manual... -
Page 39: Appendix D - Block Diagrams Of Acs Using A Card Collector
VZR.235900.000 IM APPENDIX D — Block diagrams of ACS using a card collector Figure 20 – Block diagram No. 1 Figure 20 – the most common connection diagram for a card collector is shown. The actuating device can be controlled both by ACS controller and directly by card collector, so 1* and 2* links are drawn with a dotted line. - Page 40 VZR.235900.000 IM Figure 21 – Block diagram No. 2 Figure 21 – a more promising, but also more expensive, connection scheme is presented. This scheme advantage is that it uses a single reader installed in the card collector. Wiegand interface allows connecting several ACS controllers to a single reader in parallel.
- Page 41 VZR.235900.000 IM Figure 22 – Block diagram No. 3 Figure 22 – block diagram No.3 (logical development of diagram No. 2) reduces the installed system cost. For this, a controller with two output signals per reader input is used (controller can distinguish between guest and permanent cards by issuing a signal to corresponding output).
- Page 42 Vozrozhdenie LLC 192289, 66, Sofiiskaya str., Saint-Petersburg, Russia Telephone/Fax +7 (812) 366 15 94 www.oxgard.com info@oxgard.com...
