- Page 1 VOZROZHDENIE LLC OKPD 2 26.30.50.110 TU 26.30.50-007-33120038-2017 APPROVED BY VZR.247800.001 LU TURNSTILE MODEL CUBE C-03 VZR.247800.001OM OPERATION MANUAL 40 sheets 2020...
-
Page 2: Table Of Contents
CONTENTS Description and operation ......................4 1.1 Product description and operation ..................4 1.2 Description and operation of Oxgard Praktika control panel ........... 8 Intended use ............................ 9 2.1 Operating limits ........................9 2.2 Preparing the product for use ....................10 2.3 Product operation ......................... - Page 3 VZR.247800.001. OM This Operation Manual (OM) applies to Turnstile Oxgard CUBE C-03 and its modifications (hereinafter referred to as the product). Product firmware version: FW v.d. 4. The manufacturer reserves the right to change configuration, technical characteristics and appearance of the product without further notice Before using the product, please read VZR.247800.001 Logbook (LB) as...
-
Page 4: Description And Operation
DESCRIPTION AND OPERATION Product description and operation 1.1.1 Turnstile Oxgard CUBE C-03 is designed to control access and manage people traffic separating it in one-by-one manner. The product can be used at checkpoints of enterprises, organizations and banks, in educational institutions, sports and entertainment facilities, shops, terminal stations and other institutions. - Page 5 Supply voltage (direct current), V: - nominal 12.0 - working 10.8...13.2 Average current in standby mode*, A Average current in passage mode*, A Maximum consumed current*, A Note - * Values of current are given for nominal supply voltage Turnstile CUBE C-03 Operation Manual...

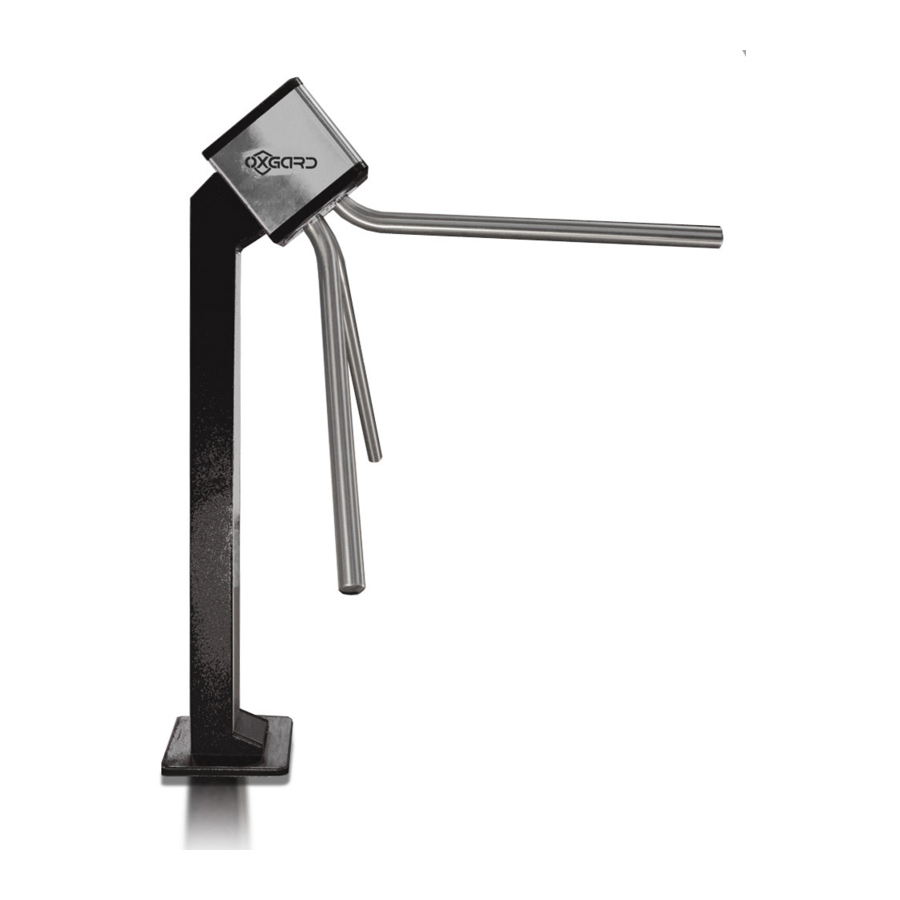

- Page 6 PSU, CP and ACS cables. Figure 1 –the base cover (secured with a double-sided adhesive tape) hides the turnstile fixation to the floor. Figure 1 – General view of the turnstile Turnstile CUBE C-03 Operation Manual...
- Page 7 Figure 2 – Appearance of the indication panel 1.1.6 Marking contains manufacturer's trademark, designation and serial number. 1.1.7 Overall dimensions of the packaging container are: 1) Height 270 mm; 2) Width 430 mm; 3) Length 970 mm. Turnstile CUBE C-03 Operation Manual...
-
Page 8: Description And Operation Of Oxgard Praktika Control Panel
VZR.247800.001. OM Description and operation of Oxgard Praktika control panel Universal Oxgard Praktika control panel is designed for controlling Oxgard turnstiles. 1.2.1 The housing is made of stainless steel and the control buttons and operating mode LED indicators are located on the front side. The specifications are given in Table 3. -
Page 9: Intended Use
FOR DEATH AND DAMAGE TO HEALTH, COMPLETE OR PARTIAL LOSS OF PERFORMANCE OF THE PRODUCT AND/OR AUXILIARY EQUIPMENT IF USER FAILS TO COMPLY WITH THE SAFETY REQUIREMENTS SPECIFIED IN THIS SECTION, AND ALSO VOIDS THE PRODUCT WARRANTY. Turnstile CUBE C-03 Operation Manual... -
Page 10: Preparing The Product For Use
Visual inspection of the product before connecting it to the mains should be obligatory and include: Check for absence of mechanical damage to the product housing: cracks, through holes from dropped out fasteners; Thorough inspection of all connections of the product. Turnstile CUBE C-03 Operation Manual... - Page 11 Figure 3 –possible free travel of the arm, it makes 6 degrees on each side in "STOP" mode. 6 deg 6 deg Figure 3 – Possible free travel of the arm in "STOP" mode Turnstile CUBE C-03 Operation Manual...
- Page 12 ATTENTION: THE PASSAGE ZONES SHALL BE ARRANGED TO ALLOW RECORDING OF PASSAGES DURING TURNSTILE OPERATION UNDER ACS CONTROL AND TO AVOID UNAUTHORIZED PASSAGES. NMT 50 mm 1- protection Recommended diagram Not recommended diagram Figure 4 – Turnstile passage zone arrangement Turnstile CUBE C-03 Operation Manual...
- Page 13 Figure 5 – control buttons 1 (LEFT), 2 (STOP), 3 (RIGHT), 4 (ANTI-PANIC) and LED indicators of the product operating modes. 1 - left, 2 - stop, 3 - right, 4 - anti-panic Figure 5 – Appearance of the control panel Turnstile CUBE C-03 Operation Manual...
-
Page 14: Product Operation
(right) will be allowed, followed by entering the "STOP" mode. The arrow indicator turns on on the indication panel showing a free passage to the left (right). Turnstile CUBE C-03 Operation Manual... - Page 15 In this mode, passes in both directions are allowed for an unlimited number of times. The arrow indicators on the indication panel blink in both directions. On the CP, the LED indicators over buttons 1 and 3 light green. Turnstile CUBE C-03 Operation Manual...
- Page 16 (Figure 7 – 1). 1 - Fixation limit stop of the arms Figure 6 – Fixation limit stop of the arms Turnstile CUBE C-03 Operation Manual...
- Page 17 Then tighten further down all the arms folded together (Figure 7 – 2). Arms folded together Arms folded down Figure 7 – Location of the arms While doing so the arrows indicating both directions will blink on the indication panel. Turnstile CUBE C-03 Operation Manual...
-
Page 18: Actions In Extreme Conditions
SPARKING, ELECTRIC CIRCUIT CAN BE A SOURCE OF FIRE DANGER. If a fire occurs, external power supply should be switched off. Fire, which occurred in the product, wiring and cables, should be extinguished using powder extinguishers. Turnstile CUBE C-03 Operation Manual... -
Page 19: Maintenance
(or electricians), at least category 3, and who have studied this Operation Manual. Safety precautions When performing maintenance, safety measures should be observed. Maintenance should be performed by specially trained technical personnel. Turnstile CUBE C-03 Operation Manual... -
Page 20: Product Maintenance Procedure
ELECTROMECHANICAL SYSTEM. Product maintenance procedure Maintenance includes the following scope of work: visual inspection of the product condition; partial disassembly of the turnstile, cleaning of the supporting frame; checking fastening parts and assemblies of the turnstile; Turnstile CUBE C-03 Operation Manual... -
Page 21: Visual Inspection Of The Product
To get access to all necessary assemblies of the turnstile, the latter should be partially disassembled. Figure 8 – this scope of works includes dismounting of the safety cover (3), decorative panel (6) and barrier arm assembly (under the cover). Turnstile CUBE C-03 Operation Manual... - Page 22 (7) of the arms and, holding one arm by hand in a fixed position, rotate the other arm clockwise in such a way that all the arms are aligned. Then push the folded arms down. Turnstile CUBE C-03 Operation Manual...
- Page 23 (in the direction of the arrow) 1, 2 - screws; 3 - fixation limit stop; Figure 9 – Dismounting of the safety cover Slide the cover till the end and free access to the rotation mechanism. Turnstile CUBE C-03 Operation Manual...
- Page 24 Remove the decorative panel: Figure 10 – unscrew two screws (1) and remove the decorative panel (3). 1 - screws; 2 - fixation limit stop; decorative panel Figure 10 – Dismounting of the decorative panel Turnstile CUBE C-03 Operation Manual...
- Page 25 S5 hexagonal key. Figure 11 – undo two М6 screws (1) with the help of the S5 hexagonal key and remove the assembly. Figure 11 – Dismounting of the barrier arm assembly Turnstile CUBE C-03 Operation Manual...
-
Page 26: Checking The Product Components
Lubricating moving parts of the product mechanism Lube with machine oil, 5W-20 viscosity class, 2-3 drops per moving assembly. Figure 12 – lubricate the turnstile mechanism elements (1, 2) Figure 12 – Turnstile mechanism elements Turnstile CUBE C-03 Operation Manual... -
Page 27: Product Assembly And Testing
List of addresses of official distributors and service centers is given in Appendix A and is also available on website: www.oxgard.ru If it is necessary to repair damaged painted surfaces, use powder paint identical to the damaged one (RAL9005) in accordance with the paint instructions for application. -
Page 28: Routine Repairs
2) If +12V and GND terminals are connected correctly, try to swap the CL and CH terminals. The turnstile does not operate Calibrate the turnstile. correctly If any other problems occur, contact the service department. Turnstile CUBE C-03 Operation Manual... -
Page 29: Routine Repairs Of The Product Components
(Logbook VZR.247800.001 (LB)), please send a claim to the manufacturer. To do this: prepare a technically substantiated Claim Report; make extracts from the FO section "Repair". make extracts from the FO section "Preservation". Turnstile CUBE C-03 Operation Manual... -
Page 30: Storage
3 days, in dry unheated rooms, enclosed transport bodies. After storage in unheated rooms, before commissioning, the turnstile should be kept in a room with normal climatic conditions for 12 hours. Turnstile CUBE C-03 Operation Manual... -
Page 31: Transportation
When transporting and storing products on Euro pallets, it is allowed to stack boxes in 2 rows. Loading and unloading operations should be carried out in compliance with safety regulations. Turnstile CUBE C-03 Operation Manual... -
Page 32: Utilization
Examples of such disposal can be disassembly (dismantling) of the product and sorting its components into groups of similar parts, converting the product into a learning aid or using it for purposes other than intended use. Turnstile CUBE C-03 Operation Manual... -
Page 33: Appendix A - Distributors And Service Centers
Republic of Tatarstan, 420059, Kazan, Orenburg tract, 128, building 1 Distributor 7 (843) 204‒22‒33 Luis + LLC Warehouse www.luis.ru luis@luis.ru 603086, Nizhny Novgorod, Manufakturnaya str., 14, room 1 Distributor 7 (831) 214 ‒71‒17 Luis + LLC Warehouse www.luis.ru luis@luis.ru Turnstile CUBE C-03 Operation Manual... - Page 34 7(495) 107-09-10 Dealer hello@pocketkey.ru www.pocketkey.ru Professor Popov str., 4 Dealer Service Revelin Ltd 7(812) 327-50-32 center ravelin@ravelinspb.ru, www.ravelinspb.ru 123181, Moscow, Isakovsky str., 33, bldg. 3 Corporate Business 7(495) 234-68-51 Dealer Service Systems www.cbs-group.ru sales@cbs- center group.ru Turnstile CUBE C-03 Operation Manual...
- Page 35 129515, Moscow, Kondratyuka str., 9, bld. 1 7 (831) 272‒55‒75 7 (831)412‒93‒11 Satro-Paladin LLC Dealer www.satro-paladin.com dir@nn.satro-paladin.com 603070, Nizhny Novgorod, Meshchersky ave, 7, bld. 3, office 10 7 (831) 272‒55‒75 7 (831)412‒93‒11 Satro-Paladin LLC Dealer www.satro-paladin.com dir@nn.satro-paladin.com Turnstile CUBE C-03 Operation Manual...
- Page 36 Saint Petersburg, Moskovsky ave., 103/3 InfoTekh LLC 7 (812) 327 95 10 7 (812)327 95 06 Dealer www.infotec.ru contact@infotec.ru 196105, Saint Petersburg, Lyubotinsky ave., 5 LIT "B" office 310 ForTreid LLC Dealer 8 (812) 309-58-53 www.fteq.ru 4trade@fteq.ru Turnstile CUBE C-03 Operation Manual...
- Page 37 299038, Crimea, Sevastopol, Kolobova str., 35/4 Grumant Corporation 7 (978) 744 38-86 7 (978) 744-38-59 Dealer www.grumant.ru krim1@grumant.ru krim2@grumant.ru Dealer 644046, Omsk, Mayakovsky str., 14 ModusTreid LLC 7 (3812) 51-00-93 7 (3812) 51-07-29 Turnstile CUBE C-03 Operation Manual...
- Page 38 Minsk, Petra Glebki str., 1 Dealer Service "Security and Safety 375 (17) 390-66-66 (multi-channel) center Systems" Mob.: +375 (33) 340-11-11 (MTS) www.sob.by info@sob.by Mustamäe tee 102-106 Tallinn Harjumaa 12917 OÜ Almasel Service center Tel +372 59192909 info@almasel.com Turnstile CUBE C-03 Operation Manual...
-
Page 39: Abbreviations
The following abbreviations are used in this document: LB — Logbook; OM — Operation Manual; IM — Installation Manual; PSU - power supply unit; CP - control panel; ACS - access control system; MNT — maintenance. Turnstile CUBE C-03 Operation Manual... - Page 40 VOZROZHDENIE LLC 192289 Saint-Petersburg 66, Sofiiskaya st. Telephone/Fax +7 (812) 366 15 94 www.oxgard.com info@oxgard.com...
