Air Circulation

The power amplifier is cooled with a built-in fan. Heated exhaust air
should not be recirculated into the power amplifier. A clearance of 6-8
inches is recommended to allow the heated exhaust air to clear the power
amplifier air inlet.
MNC-0300-036
EAR EXPORT CONTROLLED: The information contained in this Manual refers or relates to a product that is subject
to the U.S. Export Administration Regulations (EAR). Transfer of data herein by any means to a Foreign Person,
whether in the U.S. or abroad, may require an export license from the U.S. Department of Commerce.
When you reach the first screw tightened in this step (#1) increase
•
the torque on the screw and repeat the process until the screws
have all been tightened to the correct torque.

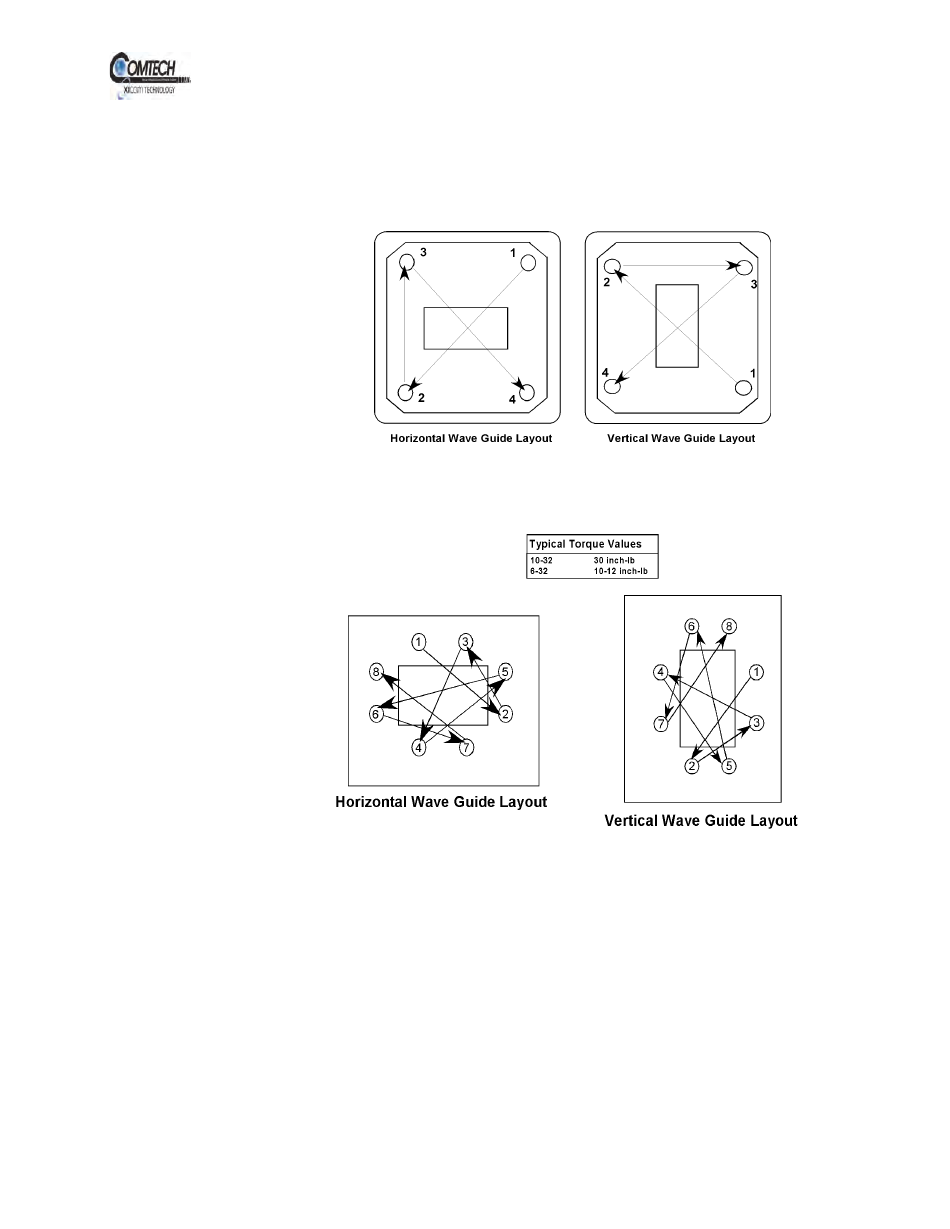

Figure 1, Typical 4 Screw Mounting Flange Tightening Sequence
Figure 2, Typical 8 Screw Mounting Flange Tightening Sequence
