5. Refer to Figure 32. Set the Waveguide Configuration by clicking
on the down-arrow and select one of the four options from the
drop-down menu. The "1-For-1" option is the most common.
The choices are:
0 - None
1- 1 for 1
2 – 1 plus 1
3 – 1 for1 plus load
The system is shipped set in the "1 for 1" mode.

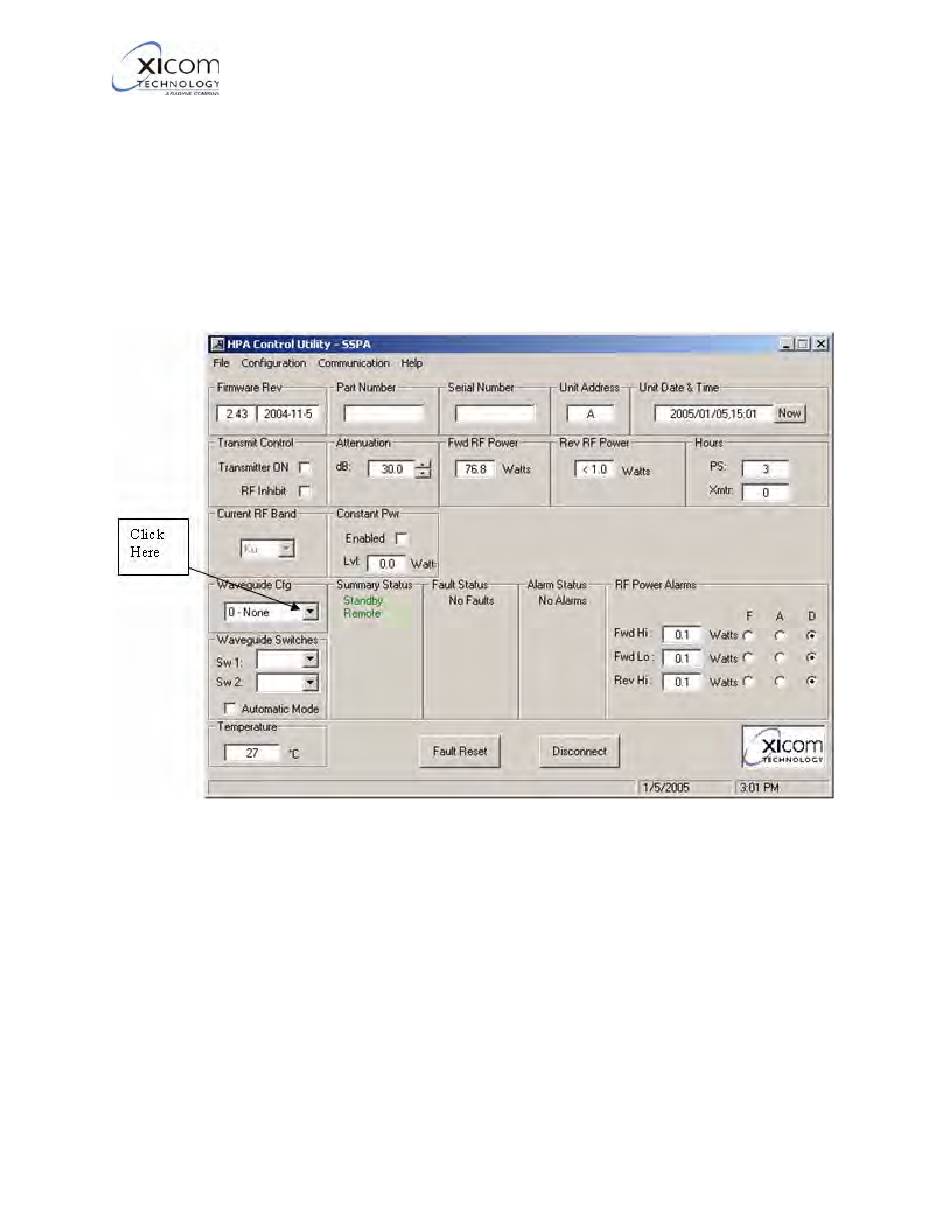

Figure 32, Select Waveguide Configuration
29 of 34
Operation Addendum, HPA Control Utility
for stand alone unit
for simple 1:1 system
for power combined system
for 1:1 with "off line" switch
