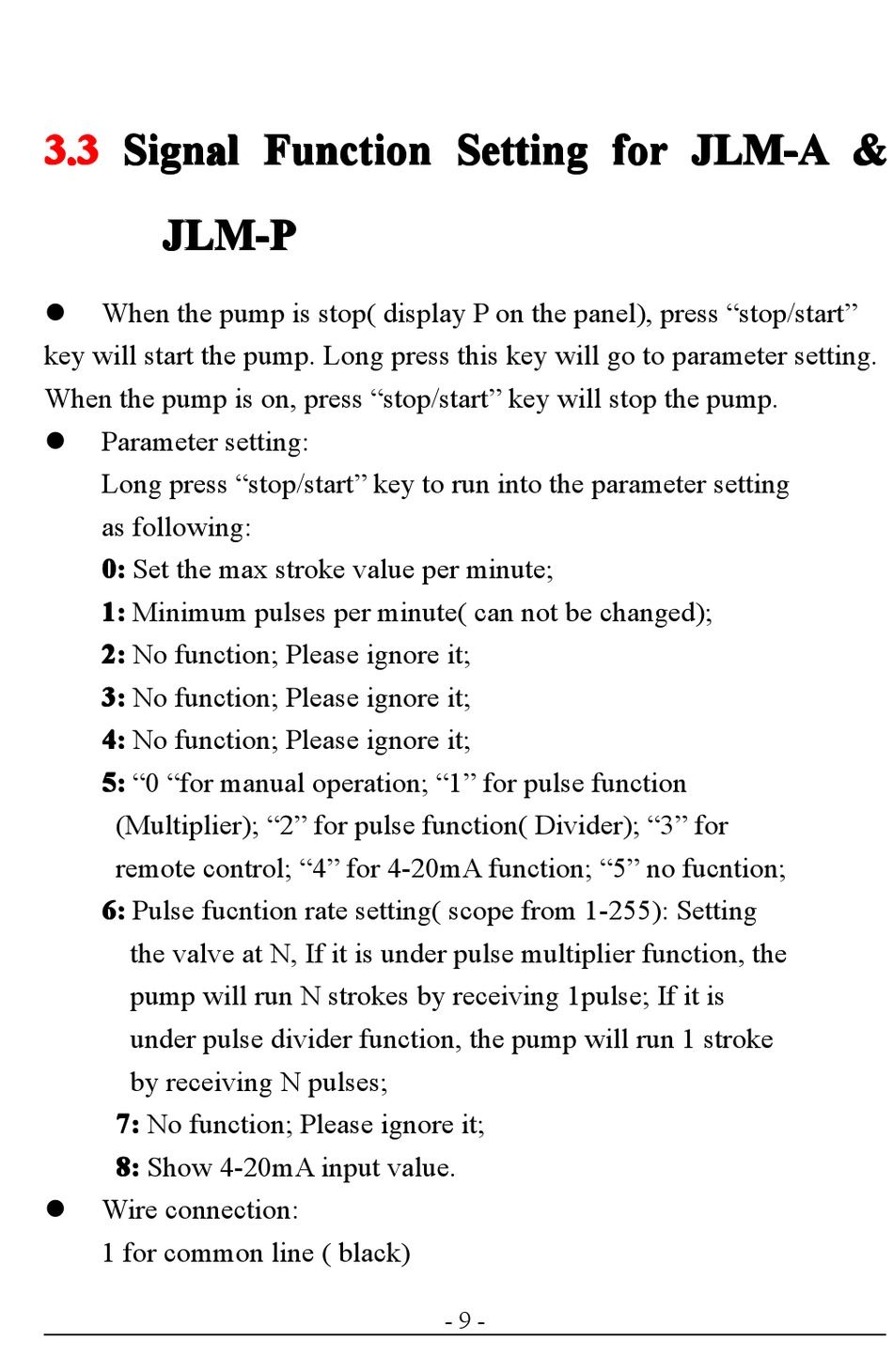

3.3 3.3 Signal Signal
3.3 3.3 Signal Signal Function
JLM-P JLM-P
JLM-P JLM-P
�
When the pump is stop( display P on the panel), press "stop/start"
key will start the pump. Long press this key will go to parameter setting.
When the pump is on, press "stop/start" key will stop the pump.
�
Parameter setting:
Long press "stop/start" key to run into the parameter setting
as following:
0: 0: 0: 0: Set the max stroke value per minute;
1: 1: 1: 1: Minimum pulses per minute( can not be changed);
2: 2: 2: 2: No function; Please ignore it;
3: 3: 3: 3: No function; Please ignore it;
4: 4: 4: 4: No function; Please ignore it;
5: 5: 5: 5: "0 "for manual operation; "1" for pulse function
(Multiplier); "2" for pulse function( Divider); "3" for
remote control; "4" for 4-20mA function; "5" no fucntion;
6: 6: 6: 6: Pulse fucntion rate setting( scope from 1-255): Setting
the valve at N, If it is under pulse multiplier function, the
pump will run N strokes by receiving 1pulse; If it is
under pulse divider function, the pump will run 1 stroke
by receiving N pulses;
7: 7: 7: 7: No function; Please ignore it;
8: 8: 8: 8: Show 4-20mA input value.
�
Wire connection:
1 for common line ( black)
Function Function
Function Setting
Setting Setting for for
Setting for
- 9 -
JLM-A JLM-A & & & & JLM-A
for JLM-A
