Bosch Rexroth IndraControl VAM 11.1 Project Planning Manual
  1. Manuals
  2. Brands
  3. Bosch Manuals
  4. Control Panel
  5. Rexroth IndraControl VAM 11.1
  6. Project planning manual

Bosch Rexroth IndraControl VAM 11.1 Project Planning Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Electric Drives
and Controls
Hydraulics
Linear Motion and
Assembly Technologies
Pneumatics
Service

Advertisement

Table of Contents
loading

Related Manuals for Bosch Rexroth IndraControl VAM 11.1

Summary of Contents for Bosch Rexroth IndraControl VAM 11.1

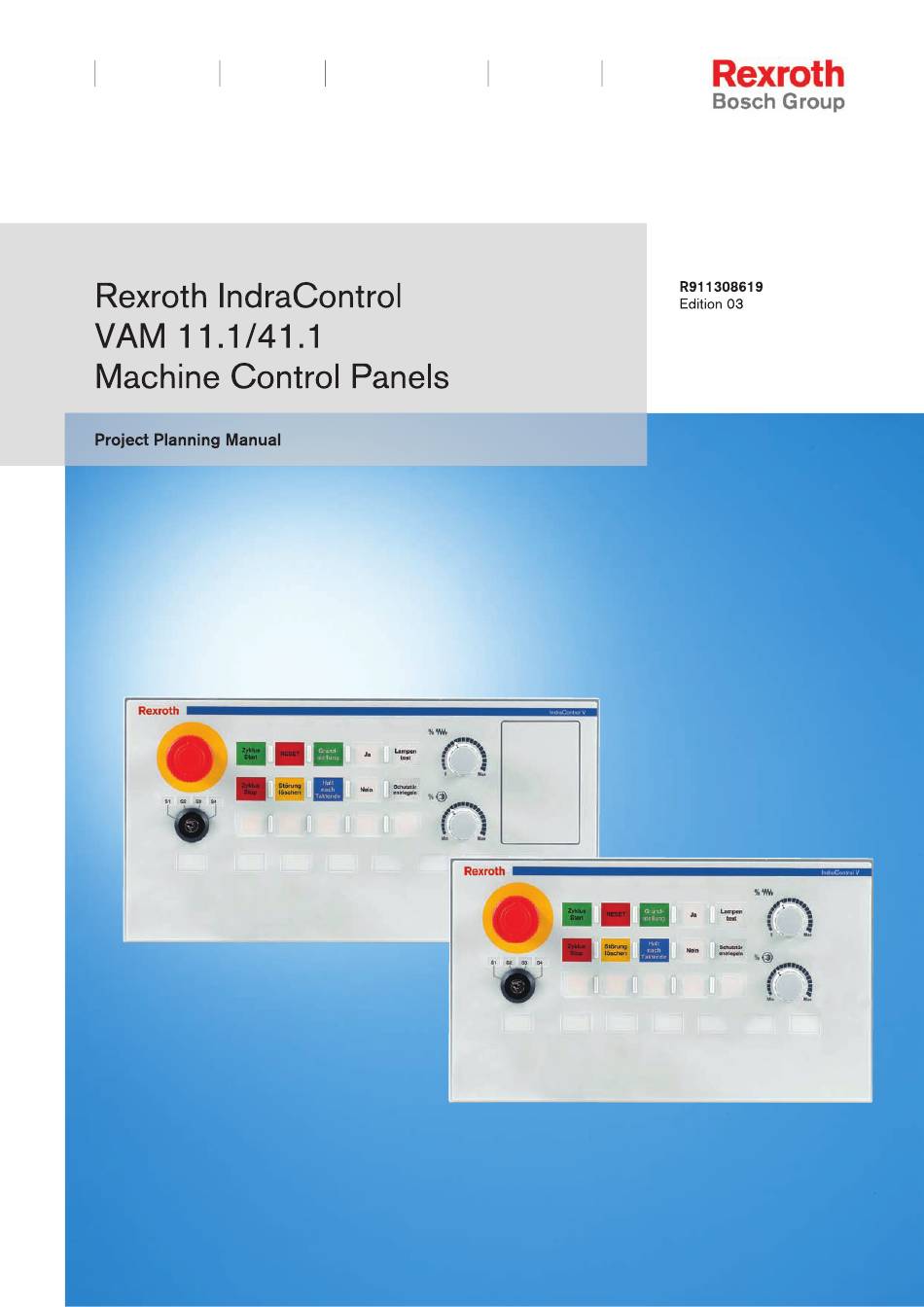

  • Page 1 Electric Drives Linear Motion and and Controls Hydraulics Assembly Technologies Pneumatics Service...
