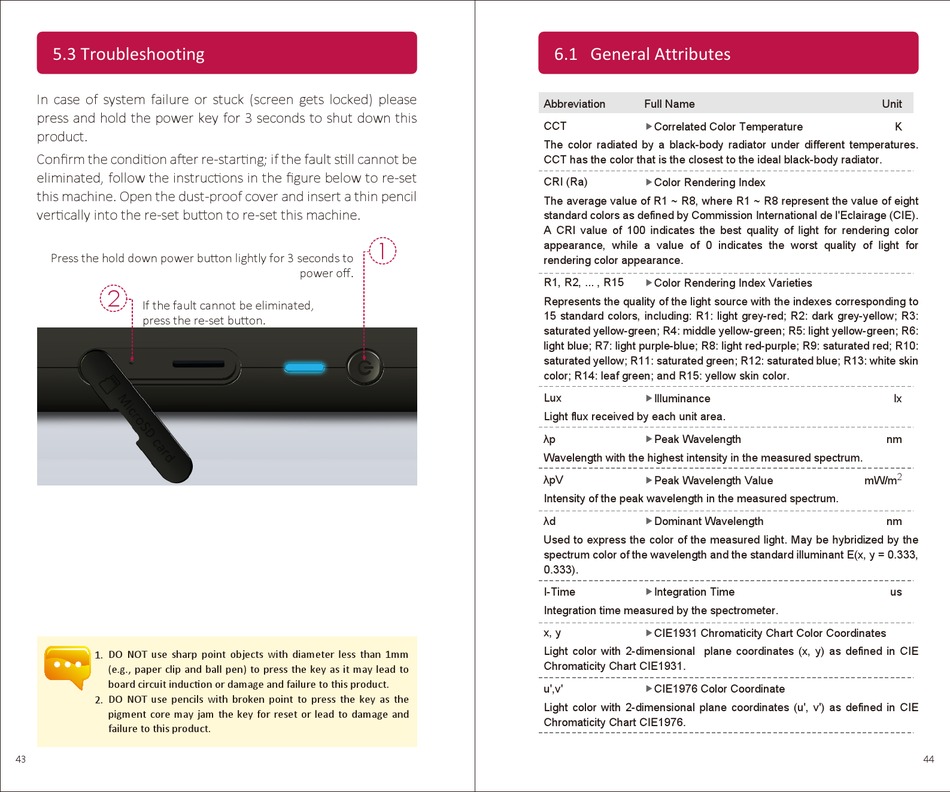

5.3 Troubleshooting

In case of system failure or stuck (screen gets locked) please
press and hold the power key for 3 seconds to shut down this
product.
Confirm the condition after re-starting; if the fault still cannot be
eliminated, follow the instructions in the figure below to re-set
this machine. Open the dust-proof cover and insert a thin pencil
vertically into the re-set button to re-set this machine.
Press the hold down power button lightly for 3 seconds to
2
If the fault cannot be eliminated,
press the re-set button.
DO NOT use sharp point objects with diameter less than 1mm
1.
(e.g., paper clip and ball pen) to press the key as it may lead to
board circuit induction or damage and failure to this product.
DO NOT use pencils with broken point to press the key as the
2.
pigment core may jam the key for reset or lead to damage and
failure to this product.
43
1
power off.

6.1 General Attributes

Abbreviation Full Name
CCT Correlated Color Temperature

The color radiated by a black-body radiator under different temperatures.
CCT has the color that is the closest to the ideal black-body radiator.
CRI (Ra)
Color Rendering Index

The average value of R1 ~ R8, where R1 ~ R8 represent the value of eight
standard colors as defined by Commission International de l'Eclairage (CIE).
A CRI value of 100 indicates the best quality of light for rendering color
appearance, while a value of 0 indicates the worst quality of light for
rendering color appearance.
R1, R2, ... , R15 Color Rendering Index Varieties
Represents the quality of the light source with the indexes corresponding to
15 standard colors, including: R1: light grey-red; R2: dark grey-yellow; R3:
saturated yellow-green; R4: middle yellow-green; R5: light yellow-green; R6:
light blue; R7: light purple-blue; R8: light red-purple; R9: saturated red; R10:
saturated yellow; R11: saturated green; R12: saturated blue; R13: white skin
color; R14: leaf green; and R15: yellow skin color.
Lux
 Illuminance
Light flux received by each unit area.
λp
 Peak Wavelength
Wavelength with the highest intensity in the measured spectrum.
λpV
 Peak Wavelength Value
Intensity of the peak wavelength in the measured spectrum.
λd Dominant Wavelength

Used to express the color of the measured light. May be hybridized by the
spectrum color of the wavelength and the standard illuminant E(x, y = 0.333,
0.333).
I-Time Integration Time
Integration time measured by the spectrometer.
x, y CIE1931 Chromaticity Chart Color Coordinates
Light color with 2-dimensional plane coordinates (x, y) as defined in CIE
Chromaticity Chart CIE1931.
u',v' CIE1976 Color Coordinate
Light color with 2-dimensional plane coordinates (u', v') as defined in CIE
Chromaticity Chart CIE1976.
Unit
K
lx
nm
2
mW/m
nm
us
