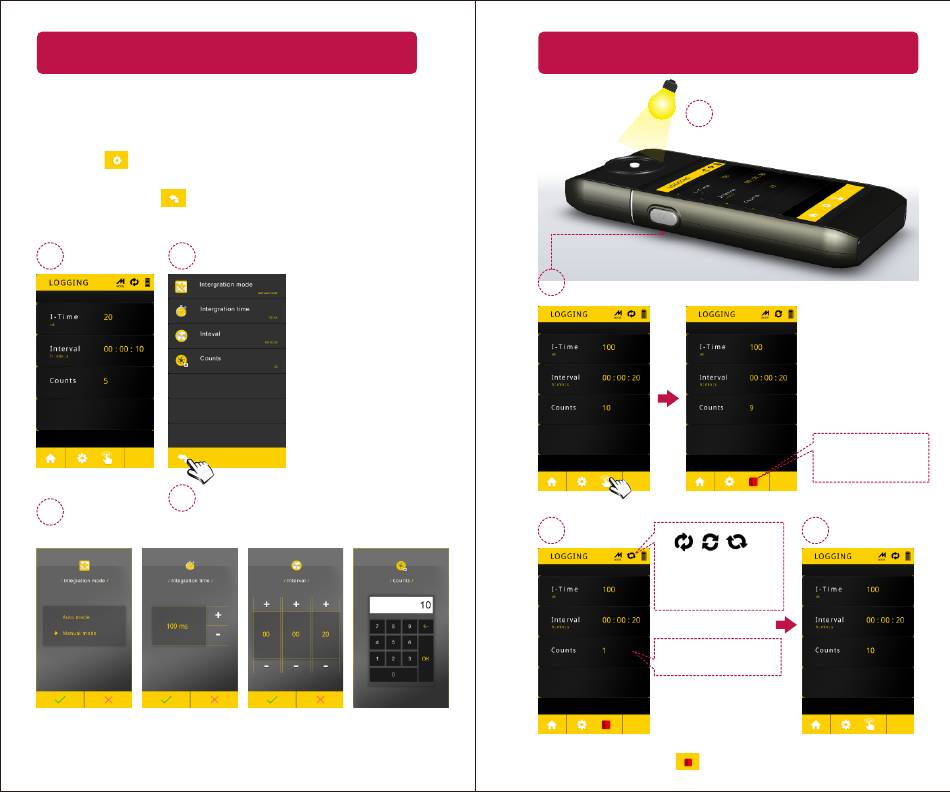

3.6 LOGGING Mode

Uses continuous measurement to measure the various values
and saves them automatically in Excel format.
Set up operation conditions
Press the " " setting button at the bottom of the screen to
set the Integration mode, Integration time, interval and counts
in order; press the " " button at the bottom of the screen
when completed to return to the measurement screen and
start performing measurement.
1 2
4
3
■ Integration mode ■ Integration time
Exposure mode can
have exposure time set
up in manual mode only.
23
Setting complete; return to the
measurement screen.
■ Interval ■ Counts
The range of measurement The range of continuous
interval is 00 (hour):00 measurement count is:
(minute):10 (seconds) 1~9999999 times.
~23:59:59.
3.6 LOGGING Mode
Measurement
1
2 Press the measurement button at bottom center of screen or the
measurement key at left hand side to measure. (You can press
measurement key at both sides.)
3
Icon at the upper right corner
spins continuously in case the
continuous measurement is in
progress.
The count field displays
balance of measurements.
To stop continuous measurement
in between, please press the" "
stop button.
Point optical sensor to light source
to be tested.
This means that the
continuous measurement
has started.
4
The Count option will reset to its
default settings after measurement
is done.
