The information contained herein is the exclusive property and confidential
document of United Power ResearchTechnology Corp., and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written
permission of United Power Research Technology Corp.
i
User Manual

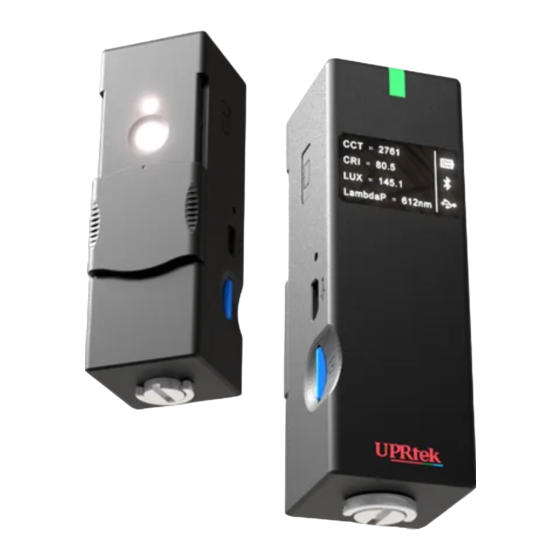

LED Meter
MK350D User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MK350D and is the answer not in the manual?

Questions and answers

Related Manuals for UPRtek MK350D

Summary of Contents for UPRtek MK350D

  • Page 1 The information contained herein is the exclusive property and confidential document of United Power ResearchTechnology Corp., and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of United Power Research Technology Corp. MK350D User Manual...

  • Page 2: Table Of Contents

    Package contents Product Description Annual Product calibration Product notes and precautions Getting Started Additional Setup and Notes Micro SDCard Setting the Date/Time on your MK350D Lanyard strap More about Dark Calibration Miscellaneous Tripod attachment System Reset uSPECTRUM PC/Smart Device software...

  • Page 3: Introduction

    1. Introduction 1.1 Features The MK350D is a lightweight, portable, easy-to-operate LED meter with Micro SDCard data storage. This product has basic features for fast, easy Light Measurements. Records over 27 light unit-of-measures; Basic List items (CCT, RA, CIE1976 , CIE1931, LUX, FC, LambdaP, R9, Flicker);...

  • Page 4: Package Contents

    1.2 Package contents 1.3 Product Description MK350D User Manual...

  • Page 5: Annual Product Calibration

    Please contact your agent or our customer service department for calibration service. 1.5 Product notes and precautions The MK350D LED Meter contains sensitive components. Please unpack with care, as any trauma to the unit may damage the equipment. Contact your agent if the unit appears not to be operating normally.
  • Page 6 . Do not use paint thinner, benzene or other organic solvents to clean the unit – this may damage the exterior finish, and may even ignite fire. MK350D User Manual...

  • Page 7: Getting Started

    2. Getting Started This section describes how to get started by charging the internal battery in the MK350D and then taking a quick measurement. Note that some of the references to buttons and lights are described in the Product Description section.
  • Page 8 2. First slide the “Sensor Cover” over the sensor lens. 3. Then turn on the MK350D by pressing the On/Off button on the side of the unit. The indicator light will illuminate green and a UPRtek splash screen will display.
  • Page 9 After the splash screen, a Dark Calibration label will display indicating that a Dark Calibration is in progress. When Dark Calibration is complete, the screen will indicate so – Dark Calibration usually takes about 10-11 seconds. MK350D User Manual...
  • Page 10 4. Slide the Sensor Cover so that the Sensor is visible again. The first screen will display the Date & Time, Optic Number and Version Number. The battery level indicator is on the right. If the unit is charging, a lightning bolt will appear over the battery symbol. MK350D User Manual...
  • Page 11 5. Hold the MK350D as shown with the Sensor facing toward the front, in the direction of a light source and press the “Measure” button at the top of MK350D. It will take about 3 seconds to measure the light source,...
  • Page 12 Press the On/Off button once to go to the next screen. The next screen shows the CIE 1931 x, y coordinates and the CIE 1976 u’, v’ coordinates. Press the On/Off button once to go to the next screen. MK350D User Manual...
  • Page 13 8. This next screen shows the R9 value, LUX value, FC (foot candle) value and the Flicker Percentage. 9. Finally, to turn off the MK350D, press the On/Off button and keep it depressed for at least 3 seconds. MK350D User Manual...
  • Page 14 – a successful registration will provide you with a license file, which you can place on a MicroSD card. After the card is inserted into your MK350D, the license will be auto-applied to the MK350D and the Version Number (below the Opt number) will show “-CCS”.

  • Page 15: Additional Setup And Notes

    All data that is captured is written to excel files (.xls). Even without an SDCard, the MK350D is able to capture data and keep the current measurement in memory. You can review the SDCard data by accessing...
  • Page 16 XXXX is a sequential ESPD_XXXX, w number (e.g. 0001, 0002). Additional data such as Integration Time, R1-R9, LambdaPV and all of the intensity data for each wavelength in the Wavelength Spectrum are all available in the file. MK350D User Manual...

  • Page 17: Setting The Date/Time On Your Mk350D

    3.2 Setting the Date/Time on your MK350D By plugging your MK350D into your PC using the USB cable supplied, the MK350D will automatically sync up its Date/Time to the PC. The Date/Time will also sync from a smart device if...
  • Page 18 (hot to cold or cold to hot), or when you move to a different light intensity environment (light to dark or dark to light). With Dark Calibration, the unit will take about 10-11 seconds to initialize, otherwise it will take 5-6 seconds. MK350D User Manual...

  • Page 19: Miscellaneous

    4. Miscellaneous 4.1 Tripod attachment If you detach the lanyard screw on the bottom of the MK350D, it will expose a screw hole where you can attach a tripod for hands-free LED measurements. 4.2 System Reset If for any reason you...

  • Page 20: Uspectrum Pc/Smart Device Software

    PC Software, which provides a much richer functional and visual environment. The MK350D can also be remote controlled by an Apple IOS or Android smart device, using a Bluetooth connection. To obtain the uSPECTRUM software, you must go to www.uprtek.com.

  • Page 21: Specifications

    2. CRI (R1~R15) 3. Lux 4. λP Measurement data collected and saved to Micro SDCard 5. C.I.E Chromaticity Coordinates (1) CIE 1931 x,y Coordinates (2) CIE 1976 U.C.S u',v' Coordinates 6. Percentage Flicker Digital Resolution 16 bits MK350D User Manual...
  • Page 22 -10 ~ 40 ℃ Range English / Traditional Chinese / Simplified Chinese / Japanese / German / Language Selection French / Russian (Standalone mode only support English) The company reserves the right to change product specifications without notifications. MK350D User Manual...
  • Page 23 MK350D User Manual...

  • Page 24: Warranty

    6. Warranty Warranty Policy UPRtek provides replacement or repair services to our customers for defective products within the applicable warranty period. 1. DOA (Dead on Arrival) Returns： In In the event that you receive a product that is not working properly or is defective, you should notify our service staff upon receipt of the products.
  • Page 25 Please use a courier that is able to provide you with proof of delivery. Limitation of Warranty Please note that UPRtek is not responsible for providing repairs under warranty if the MK350D User Manual...
  • Page 26 4. Product serial number does not conform to our original system or the label has been damaged. Disclaimer UPRtek shall in no event be liable for any defect, damage or data loss that has occurred during the delivery of in-warranty products.
  • Page 27 120 days after receiving the goods. This extended warranty also includes one free calibration service by UPRtek after the product has been in use for 1 year (shipping costs will be incurred by the consumer).
  • Page 28 UPRtek. On occasion, these 3rd party components may need to be replaced but are already discontinued by the supplier. In this case, UPRtek assures customers that it will fulfill it’s repair and replacement responsibilities by using substitute parts or components of equal level and quality.
  • Page 29 In case of product defects, the customers are still able to send products back to the UPRtek factory for service. The repair charges will be based on the type of defect, and in some cases, maintenance fees will be charged.
  • Page 30 If multiple parts simultaneously fail due to normal wear and tear, or poor handling. Even if the product is within the service period of the warranty, yet parts are no longer available. MK350D User Manual...
