3.4 PPFD SPECTRUM Mode

PPFD spectral mode provides five reference spectrums:
1. Chlorophyll a, 2. Chlorophyll b, 3.β-Carotene, 4. Phytochrome
A-red and 5. Phytochrome A-far red. The range of the reference
spectrums is 350~750nm.

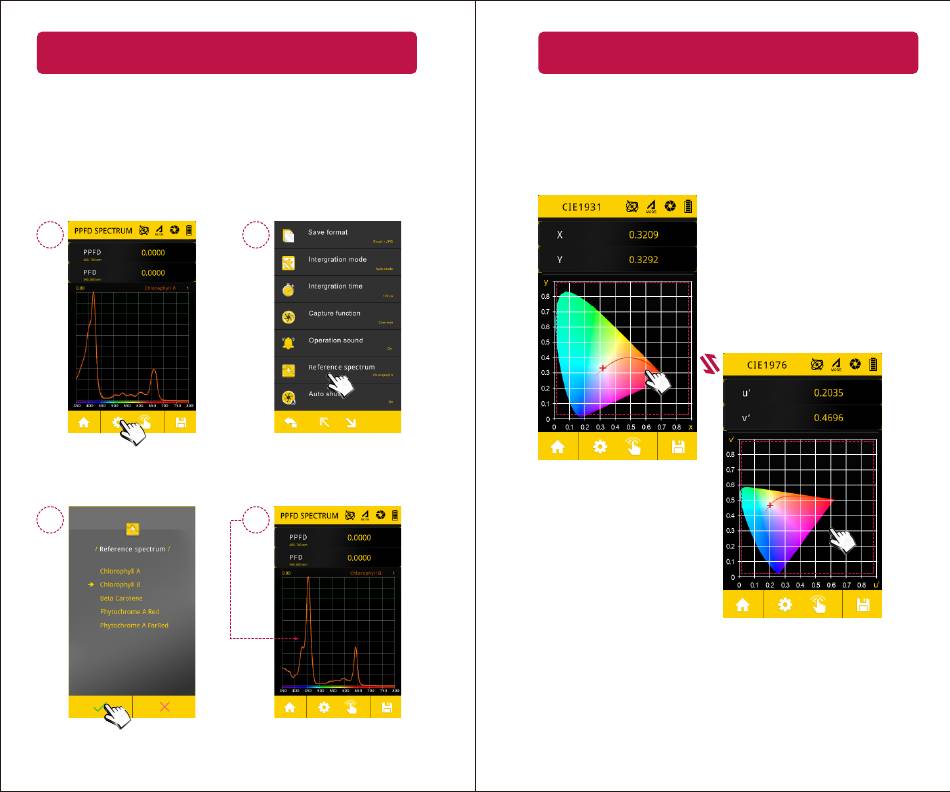

Reference spectrum setting
1
Press the "Settings" button at
the bottom of the screen.
3
Select the required reference
spectrum and press "OK".
21
2
Enter the measurement setting
screen and press the "Reference
Spectrum" item.
4
Return to the measurement
page and the display of the
reference spectrum has changed.

3.5 CIE Mode

Click "CIE" icon in main screen to validate CIE 1931 and CIE 1976
chromaticity coordinates chart.
Click chromaticity coordinates chart to switch between CIE1931
/ CIE1976.
