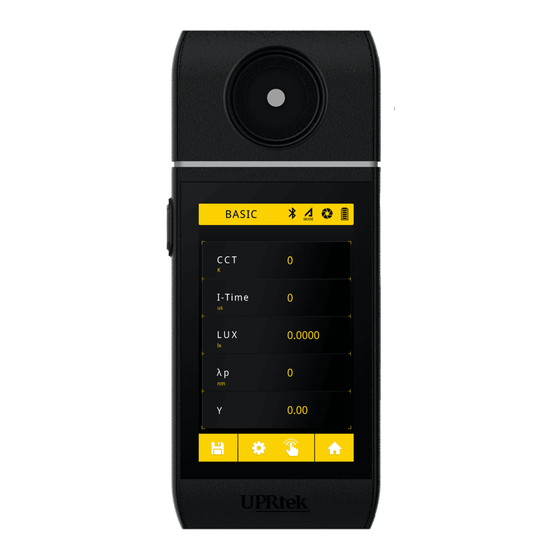

UPRtek PG200N User Manual
Hide thumbs Also See for PG200N:

Advertisement

Quick Links

uSPECTRUM PC Software
Download File
下載檔案
uSPECTRUM PAR
* To ensure your warranty validation, please place your agent's stamp in the box and
fill in the purchase date. If the agent stamp and purchase date cannot be supplied,
the warranty period will based on the manufacturing date of the product.
* 為確保您的權益,請要求經銷商蓋上店章及填寫購買日期;未蓋店章與購買日期者,則以
出廠日期為依據。
* お客様の権利を確保するために、販売店に店の印章または、購入日を記入することを依
頼してください。販売店の印章または購入日のない場合、製造日に基とづいて取り扱い
いたします。
* Um Ihre Rechte zu gewährleisten, bitten Sie den Vertriebshändler einen Geschäftsstempel
aufzudrücke und das Kaufdatum einzutragen.Ohne Kaufdatum und ohne aufgebrachten
Geschäftsstempel wird das Ausgabedatum als betrachtet.
* Pour assurer la validité de la garantie de votre produit, veuillez demander à votre revendeur
d'appliquer son tampon et d'indiquer la date d'achat. Si ces informations ne sont pas
indiquées, la durée de la garantie sera basée sur la date de fabrication.
* Per garantire la convalida della garanzia, inserire il timbro dell'agente nella casella e
compilare la data di acquisto. Se non è possibile fornire il timbro dell'agente e la data
di acquisto, il periodo di garanzia si baserà sulla data di fabbricazione del prodotto.
* Para garantizar la validación de la garantía, coloque el sello del agente en la caja y
rellene la fecha de compra. Si el sello del agente y la fecha de compra no se pueden
suministrar, el período de garantía se basará en la fecha de fabricación del producto.
Original / Authorized Agent Stamp
Product Serial Number:
Purchase
Date:
TEL:+886-37-580-006
FAX:+886-37-585-308
Address:5F., No.38, Keyi St., Zhunan Township, Miaoli County 35059, Taiwan, R.O.C
ファイルをダウンロードする
52-72-00027-0100 V2.0
Website:www.uprtek.com
手持式分光光譜計・SPECTRAL PAR METER・ハンディタイプ分光光度計
PG200N
User Manual
使 用 說 明 書
簡 易 取 扱 説 明 書

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PG200N and is the answer not in the manual?

Questions and answers

Summary of Contents for UPRtek PG200N

  • Page 1 * Para garantizar la validación de la garantía, coloque el sello del agente en la caja y rellene la fecha de compra. Si el sello del agente y la fecha de compra no se pueden suministrar, el período de garantía se basará en la fecha de fabricación del producto. PG200N 手持式分光光譜計・SPECTRAL PAR METER・ハンディタイプ分光光度計 Original / Authorized Agent Stamp Product Serial Number:...
  • Page 2: Table Of Contents

    3.9 BROWSER Mode Measurement settings ........4.1 Measurement Settings ....4.2 Continuous Measurement Settings To get more information related to operation, firmware upgrade and warranty terms; online application for correction and repair service, please visit www.uprtek.com to download the complete version.
  • Page 3: Product Overview

    1.1 Product Overview 1.2 Package Contents Your Spectral PAR Meter PG200N is a palmtop photon meter Please ensure the following are included in the package of this product: In case of any flaw and/or loss please call the dealer or that measures range of light sources in multiple modes.
  • Page 4: Annual Product Calibration

    1.5 Product Notes and Precautions 4.3" Touch panel Power key PG200N Spectrometer is a high-precision instrument. Please unpack with care. Power on LED Any vibration or collision may cause instrument damage. If the product doesn’t work normally or needs repair, don’t attempt any repairs. All repairs must be MicroSD card slot performed by the authorized customer service agent.
  • Page 5 2.1 Preparing Before Use 2.1 Preparing Before Use Charging method Installing MicroSD card Connect the charger and USB cable to the Type C USB port of Measurement data may be saved in Excel (xls) format and image this product to start charging. data (spectrum and chromaticity coordinates diagram) may be saved in JPG format in the MicroSD card with capacity at 1GB or 1.
  • Page 6: Taking A Measurement

    Switch on the power again after correctly installed. Optical sensor and console are paired before shipment to you. DO NOT use either of the two with any other PG200N Spectrometer. If you have more than one PG200N Spectrometer, DO NOT swap optical sensor between instruments.
  • Page 7 2.1 Preparing Before Use 2.1 Preparing Before Use Precautions on optical Set up date and time sensor installation Set up date and time before taking any measurements. Make sure the optical sensor latch is well connected to console. Dark calibration Press the power button and the blue indicator will light up, and the boot screen will appear on the screen.
  • Page 8 2.2 Basic Measurement 2.2 Basic Measurement Measurement Save measurement data Click “BASIC” mode to enter measurement page. Point optical sensor to light source to be tested. Press the “Save file” button at lower right corner. EXCEL file name: ESPDY Y Y Y _ M M D D _ H H M M S S .xls regular ( year ) (month)(day) (hour/min/seconds)
  • Page 9: Setup Items In Option

    2.3 Setup Items in OPTION 2.3 Setup Items in OPTION Click OPTION icon in main screen to set up this product. Charge left Capacity of SD card displays once it is inserted. In case message "Please insert SD card" displays after a SD card has been inserted the one you have inserted may be failed to be identified by...
  • Page 10: Basic Mode

    List of available items displays, click down arrow key “  ” to scroll down to next page. 1. Please use PG200N Thermal-Hygro cable along with PG200N for temperature(°C) and relative humidity(%RH) measurements. Click items to be shown in Default item changed. Follow position ①.
  • Page 11: Spectrum Mode

    3.1 BASIC Mode 3.2 SPECTRUM Mode Level function Click “SPECTRUM” icon in main menu to display spectrum in range of 350~800nm. Click on the g sensor icon on the top-right of the screen to check the level status of the optical sensor. Indicate peak wavelength Reset button Calibration button...
  • Page 12: Ppfd Mode

    3.3 PPFD Mode 3.3 PPFD Mode Click “PPFD” icon in main menu to validate Photosynthetic Customizing measurement range Photon Flux Density (PPFD). Measuring range is 350~800nm. In 1. Press the “PFD-custom” item. addition, items and ranges to measure can also be customized; 2.
  • Page 13: Ppfd Spectrum Mode

    3.4 PPFD SPECTRUM Mode 3.5 CIE Mode PPFD spectral mode provides five reference spectrums: Click “CIE” icon in main screen to validate CIE 1931 and CIE 1976 chromaticity coordinates chart. 1. Chlorophyll a, 2. Chlorophyll b, 3.β-Carotene, 4. Phytochrome A-red and 5. Phytochrome A-far red. The range of the reference spectrums is 350~750nm.
  • Page 14: Logging Mode

    3.6 LOGGING Mode 3.6 LOGGING Mode Measurement Uses continuous measurement to measure the various values Point optical sensor to light source and saves them automatically in Excel format. to be tested. Set up operation conditions Press the “ ” setting button at the bottom of the screen to set the Integration mode, Integration time, interval and counts in order;...
  • Page 15: Grid Mode

    3.7 GRID Mode 3.7 GRID Mode Click”GRID”icon in main menu to collect the data from different Measurement positions and provide the average, maximum, minimum, After press the measurement button at bottom center of uniformity, and, diversity values on – Lux, PPFD, PFD, PFD-B, screen or the measurement key at left hand side, the ID filed PFD-G, PFD-R, PFD-UV, and, PFD-FR.
  • Page 16: Compare Mode

    3.7 GRID Mode 3.8 COMPARE Mode The Compare item allows you to compare two measurements Reset the Grid data side by side. You can compare two consecutive measurements or compare a measurement against historical data (SD card). BASIC SPECTRUM Enter the measurement setting Press the “Settings”...
  • Page 17 The measurement data The new data will fill the right Point the PG200N to a light will fill the left column. column. You can now compare source and take a measurement. the two measurements.
  • Page 18 Spectrum data comparison settings 安裝uSPECTRUM電腦軟體 量測 To compare against historical data It is also possible to see the relative 符合DIN 5032 Part 7 B級 請至UPRtek官網,http://www.uprtek.com→支援→下載中心; 連接後PG100N本機畫面即會顯示如下圖。 ( saved on SD Card ), first tap difference between the spectrum data 進行下載與安裝於電腦系統裝置,即可採USB連線方式與本機做 光譜波長範圍...
  • Page 19: Browser Mode

    5. PPFD 模式 檔案儲存數 約 68,000 檔案 @ 8GB SD Card ( Excel + JPG ) 3.9 BROWSER Mode 3.9 BROWSER Mode 6. Logging 模式 電池操作時間 最長可達5小時 / 充飽電 7. 檔案瀏覽模式 電池 變壓器; 2500 mAh / ( 3.7V 可充電式鋰電池 ) The Browser (on Home Screen) allows you to review historical data that was previously saved to the MicroSD card.
  • Page 20: Measurement Settings

    4.1 Measurement Settings 4.1 Measurement Settings In mode of “BASIC”, “SPECTRUM”, “PPFD”, “PPFD SPECTRUM”, ■ Keyboard ■ Save format ■ Auto save “CIE”, “GRID”, “COMPARE” you can press the “ ” setting button at the bottom of the screen to perform detailed settings. This option is turned on can You may opt to save Opt to select auto save...
  • Page 21 ■ Reference spectrum ■ Auto shutter  使用 SD 卡於PG100N之前,請先將SD卡進行格式化為 FAT格 式,並且使用 1G 以上的SD卡。 1. Please use PG200N Thermal-Hygro cable along with PG200N for Select to on/off operation This function will only be When users press the sound. Set operation sound...
  • Page 22: Continuous Measurement Settings

    產品已超過七日的新品換貨期,所發生功能不良或瑕疵情況, 固服務範圍內。 屬一般RMA流程方式。當有產品需要返回原廠進行維修時,請 先以郵件、傳真或是電話的方式先行向所屬業務服務人員申請 授權代理商或經銷商提供之服務項目 維修單號成立後,再隨同產品一併寄回原廠進行維修服務。 ■ 合格代理商或經銷商可代收代送PG100N系列產品主機的基礎檢 ■ 產品在原廠收到後會先經由公司內部工程人員進行基礎檢測, 測,以確認機器是否需返回原廠作進一步的校正服務。 並確認產品不良原因,於保固期限內屬產品本身功能問題則可 Measure ■ 合格代理商或經銷商公告網址:www.uprtek.com。 依照一般維修流程處理,但若經工程人員檢測判斷後非屬產品 本身功能問題,而屬人為損壞者則不適用此條例。 ■ 消費者基礎檢測服務的收費需依群燿科技公告為準。 ※ Status indicator spin 備註:為避免產品在運送過程中的損壞,我們強烈建議使用國際快遞的物流 continuously in case the 方式並且小心謹慎保護產品。 其他注意事項 continuous measurement is in progress. 有限保固 由於產品的所有原物料及配件並非全由群燿科技生產製造,保固 Auto measurement at frequency 期內若遇該原物料及配件停產時,群燿科技將以同等級「替代品...
  • Page 23: Connecting With Uspectrum

    Measure PG100N系列產品在超過最長三年的保固期後,若遇產品功能損 Please visit the UPRtek official website at http://www.uprtek.com; 壞或故障時,消費者仍可以依上述的服務管道,將產品返回群燿 download the file and install it on your computer system to 科技進行維修服務,但會依產品的不良或損壞情況向消費者收取 connect the computer and PG200N through USB and run 維修服務費用。若經維修工程師判斷為以下情況,則建議另購新 uSpectrum to perform measurements. 品: ■ 倘若PG100N系列產品或配件不再提供。...
  • Page 24: Troubleshooting

    5.3 Troubleshooting 6.1 General Attributes In case of system failure or stuck (screen gets locked) please Abbreviation Full Name Unit press and hold the power key for 3 seconds to shut down this Correlated Color Temperature  product. The color radiated by a black-body radiator under different temperatures. Confirm the condition after re-starting;...
  • Page 25 6.1 General Attributes 6.1 General Attributes Abbreviation Full Name Unit Abbreviation Full Name Unit CIE1960 UV Color Coordinate Difference PPFD-B PFD in Blue Field µmol/(m UV distance between CIE1960 plane coordinate(s) and Planck’s blackbody PFD in the 400~500 nm wavelength range. radiation with the same color temperature.
  • Page 26 6.1 General Attributes Abbreviation Full Name Unit Phytochrome Photostationary State It is the ratio of the concentration of phytochrome A red to the total concentration of phytochrome. °C Temperature Temperature is a physical quantity that expresses hot and cold. Relative Humidity Relative humidity, expressed as a percentage, indicates a present state of absolute humidity relative to a maximum humidity given the same temperature.
