52-72-00015-0000

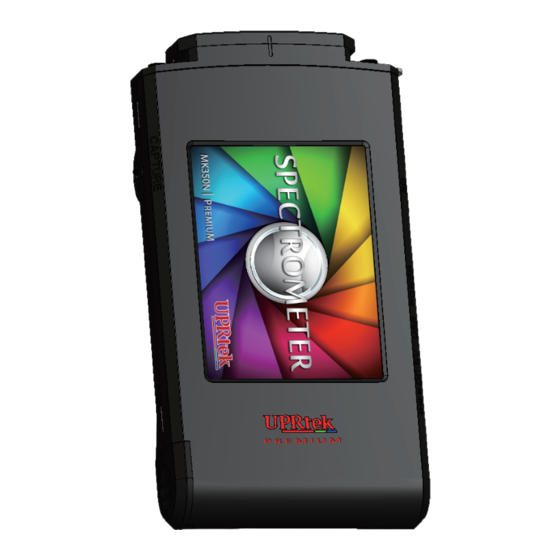

MK350N Premium
User Manual
Spectrometer
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for UPRtek MK350N PREMIUM
Summary of Contents for UPRtek MK350N PREMIUM
- Page 1 Membership Login Support Download Center MK350N Premium Spectrometer Original / Authorized Agent Stamp * To ensure your warranty validation, please place your agent's stamp in the box and fill in the purchase date. If the agent stamp and purchase date cannot be supplied, the warranty period will based on the manufacturing date of the product.
-
Page 2: Table Of Contents
......38 To get more information related to operation, firmware upgrade and warranty terms; online application for correction and Repair 3.17 Connecting with uFlicker ........ 39 service, please visit www.uprtek.com to download the complete version. - 1 - - 2 -... -
Page 3: Introduction
Introduction 1.1 Packing Contents 1.2 Appearance Introduction 1.3 Annual Product Calibration 1.4 Product Notes and Precautions - 3 - - 4 -... -
Page 4: Appearance Introduction
1.1 Packing Contents 1.2 Appearance Introduction Please check MK350N Premium packing before use, Strap Hole contact your agent if there are missing items. 3.5” Touch Screen Battery SD Card Slot MK350N Premium Protection Bag Battery Case Spectrometer Reset Key Power Key... -
Page 5: Product Notes And Precautions
Please consult the agent or the customer service department for the calibration service. Product Notes and Precautions MK350N Premium Spectrometer is a high-precision instrument. Please unpack with care. Any vibration or collision may cause instrument damage. If the product doesn’t work normally or needs repair, please don’t attempt any repairs. -
Page 6: Preparing Before Use
Step3. Install the battery after removing battery cover. 3. Power On Status: Users can check MK350N Premium screen, it will appear a lightning symbol to indicate charging, and lightning symbol will disappear after being fully charged. - Page 7 Strap installation： Step1. Unscrew the strap. Step2. Tie the strap to the strap hole of MK350N Premium. Step3. Tie the strap to the sensor cover. “Do you want to After the sensor cover is put on, do dark calibration?”...
-
Page 8: Basic Measurement
2.1 使用前準備 2.2 Basic Measurement 2.1 使用前準備 2.1 使用前準備 2.1 Preparing Before Use Measure Set date and time After the dark calibration is completed, please set date and time before Select “Basic” to enter measurement page. measurement. Point the sensor head at the target Go to the next page. -
Page 9: System Reset
2.2 Basic Measurement System Reset Save measurement data Users can press the reset key to turn off the system if system crashes. Reset Key Press Save key on the lower right of the screen, and select “Yes” key. EXCEL file name: ESPDYYYY_MMDD_HHMMSS Fixed (Year) (Month) (Date) (Time) .xls... -
Page 10: System Overview
System Overview 3.1 Main Page 3.11 FLICKER Mode Introduction 3.2 Measurement Modes Introduction 3.12 FREQUENCY Mode Introduction 3.3 Measurement Introduction 3.13 Compare Mode Introduction 3.4 Measurement Setting Introduction 3.14 Transferring Data with PC Connection 3.5 Continuous Measurement Introduction 3.15 Connecting with Mobile APP 3.6 Customizing BASIC Mode List 3.16 Connecting with uSpectrum 3.7 Instruction of Spectrum Mode... -
Page 11: Main Page
Main Page Main Page The interface of the product is touch screen operation. By touching the The interface of the product is touch screen operation. By touching the screen with your figure, you may select the target menu or option. screen with your figure, you may select the target menu or option. -
Page 12: Measurement Modes Introduction
Measurement Introduction Measurement Modes Introduction Save measured data： Interface introduction： Means button Press save button to save file Confirm Success Failed Failed 1. Measuring Mode - Basic 2. Exposure Mode -Automatic /Manual 3. Measuring Function –Single operation /continuous operation . For continuous measurement, please refer to 3.5. -
Page 13: Measurement Setting Introduction
Measurement Setting Introduction Measurement Setting Introduction Please go to measurement page to do measurement settings. Save Format Setting： Integration Mode Setting： Integration Time Setting： Save format Keyboard Integration mode Auto mode Integration time Long time exposure Operation Sound Setting： Capture Function Setting： Long time exposure Setting：... -
Page 14: Continuous Measurement Introduction
Keyboard Instruction： Key in the number or English letter. Select it to show the Basic mode MK350N Premium will process Basic mode input value on the （start measurement） measurement with （after measurement） upper side. press capture key interval of 3 seconds. -
Page 15: Customizing Basic Mode List
Customizing BASIC Mode List Instruction of Spectrum Mode The 4 items on the Basic list can be customized with different units of measure (e.g. CQS, fc, R9, TLCI). Interface introduction： Means button Previous Back to Next page BASIC mode page Step1. -
Page 16: Switch Between Cie1931&Cie1976
Switch Between CIE1931&CIE1976 TM-30 Mode Introduction TM-30-15 provides equations and direction for calculating Touch the graph to switch the table between CIE1931 Fidelity Index (Rf) and gamut (increase or decrease in chroma) through a Gamut Index (Rg), including the spectral reflectance and CIE1976. -
Page 17: Browser Mode Introduction
3.10 3.11 FLICKER Mode Introduction BROWSER Mode Introduction The Browser (on Home Screen) allows you to review historical data that was previously saved to the SD card. Interface introduction： Means button Previous Back to Return to the Next page main manu previous folder page 1. -
Page 18: Frequency Mode Introduction
3.12 3.12 FREQUENCY Mode Introduction FREQUENCY Mode Introduction Touch the graph to switch the table between Frequency. Interface introduction： Means button 1. Measuring Mode - FREQUENCY 2. Exposure Mode -Automatic /Manual 3. Measuring Function –Single operation /continuous operation . For continuous measurement, please refer to 3.5. -
Page 19: Compare Mode Introduction
Storage the measurement data： the historical measurement data to show the measured Inside the package has a USB cable, connect the mini USB to MK350N Premium light source data with parallel display. We offer four and plug the USB to your PC then you can read the data saved in SD card. -
Page 20: Connecting With Mobile App
Insert WiFi Wing card to the system. At IOS or Android platform, download Please visit UPRtek official site, http://www.uprtek.com→Support→ MK350N Premium APP and install it on your mobile. Then you can connect Download Center, Download and install uSpectrum software on the it with system for the measurement of wireless control. -
Page 21: Connecting With Uflicker
3.17 Connecting with uFlicker Install uFlicker PC software Please visit UPRtek official site, http://www.uprtek.com→Support→ Download Center, Download and install uFlicker software on the PC. Then you can connect it with the system for USB control of measurement. uFlicker Install file... - Page 22 Product Specification Product Specification Spectrum 1. Illuminance (LUX) / Foot Candle (fc) Sensor CMOS Linear Image Sensor 2. Correlated Color Temperature (CCT) Wavelength Range 380 to 780 nm 3. CIE Chromaticity Coordinates (1) CIE 1931 x,y Coordinates Wavelength Data Increment 1 nm (2) CIE 1976 u',v' Coordinates Spectral Bandwidth...
- Page 23 Product Appearance and Dimension Product Appearance and Dimension Back Support Installation Diagram Unit: mm Unit: mm - 43 - - 44 -...
-
Page 24: Appendices
Appendices 5.1 Product Warranty Terms 5.2 Measurement Indexes 5.3 Q&A - 45 - - 46 -... -
Page 25: Product Warranty Terms
Under this circum- Exemption from Liabilities stance, the original vendor reserves the ultimate right to UPRTEK is not liable to the product defect or damage ■ determine whether to change new product. caused by any factor during the transportation of sending 2. - Page 26 Product Warranty Terms Applicable Subjects for Warranty Terms Service after Warranty Period If any damage or fault occurs to MK350N Premium series UPRTEK’s warranty service terms are only applicable to the product after two years of warranty period, the consumer consumers who purchase the company products through may still return the product to UPRTEK for repair.
- Page 27 Measurement Indexes Measurement Indexes yellow-green; R6: light Unit Description Abbreviation Full Name blue; R7: light The color temperature is purple-blue; R8: light Corelated the color radiated by a red-purple; R9: saturated Color (kelvin) black-body radiator red; R10: saturated under different yellow;...
- Page 28 Measurement Indexes Measurement Indexes It is the y difference between CIE1931 y Unit Description Abbreviation Full Name Δy CIE1931 coordinate and the color Planck’s blackbody radiation (deltay) The color coordinate was coordinate CIE1931 with the same color built by CIE in 1931. temperature.
- Page 29 Measurement Indexes Measurement Indexes The sensitivity of human eyes The parameter is defined by Scotopic TLCI Television varies with the light of referring to European vision/ (SP-ratio) Lighting different wavelength. It can Broadcasting Union (EBU), get the data such as which is used to evaluate the photopic Consistency...
-
Page 30: Measurem
Measurement Indexes Measurement Indexes The transmittance is defined Flicker index= Area above the TRANSMIT Findex Flicker index Transmittance as (the radiant flux mean value /area below the (Flicker Idx) transmitted/the radiant flux mean value. Higher value received)x100 %, based on represents obvious flicker. -
Page 31: Q&A
MK350N Premium. Moreover, the and warranty terms; online application for correction and Repair memory of SD card is required to be MK350N Premium? service, please visit www.uprtek.com to download the complete 1G or higher. version. - 59 - - 60 -...
