6.5.3 RS485 cable connection

1. To pull the RS485 cable through the RJ45 components.
2. The RS485 cable is composed by eight wires with different color, cut off outside envelope to show the
eight wires. Then make sure the end of each wire straight, and put them to the crystal connector.

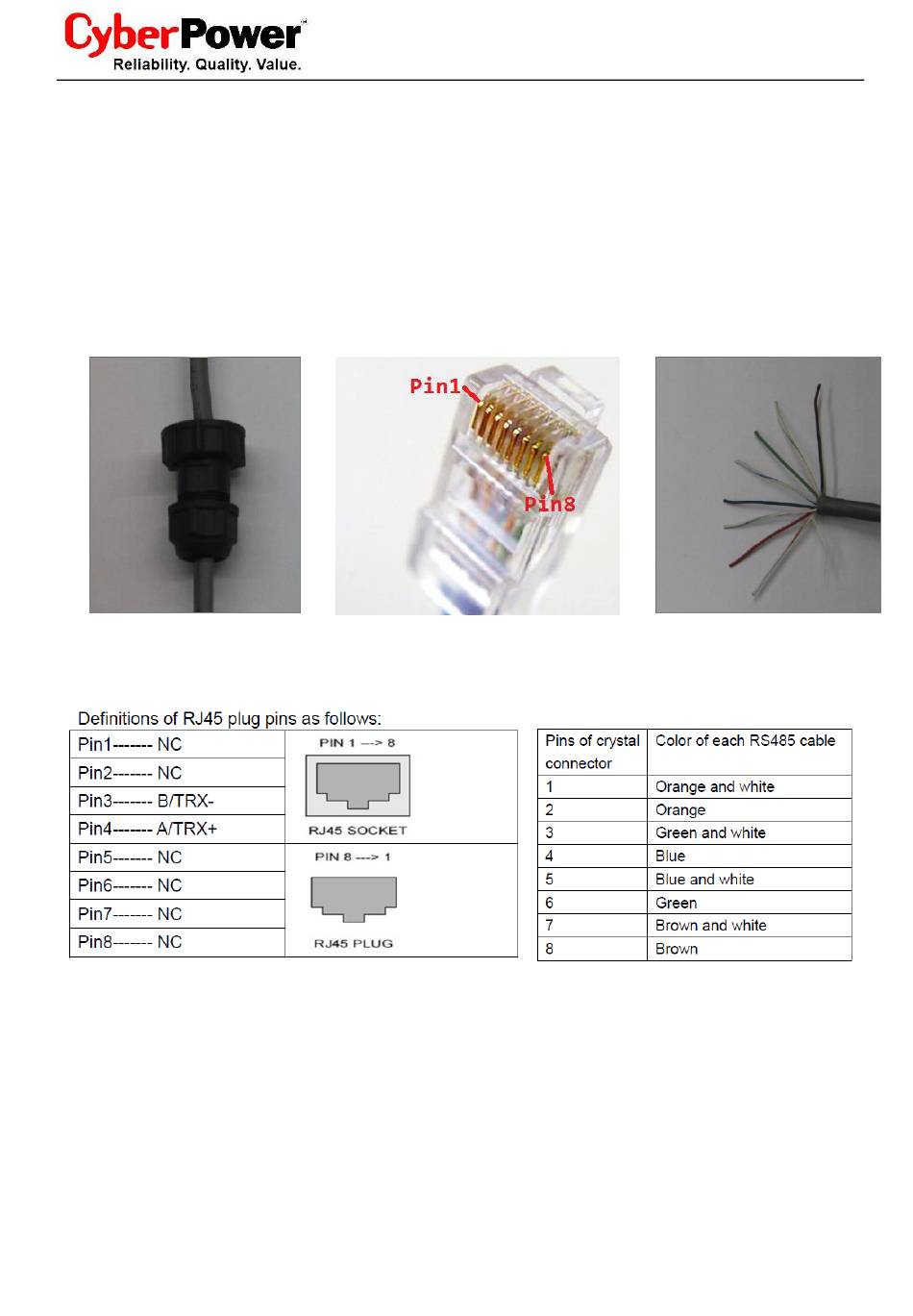

3. The connection between crystal connectors and RS485 cbale is one-to-one correspondence, one pin
of crystal connector to one specific color wire, as shown in the following table and picture.
