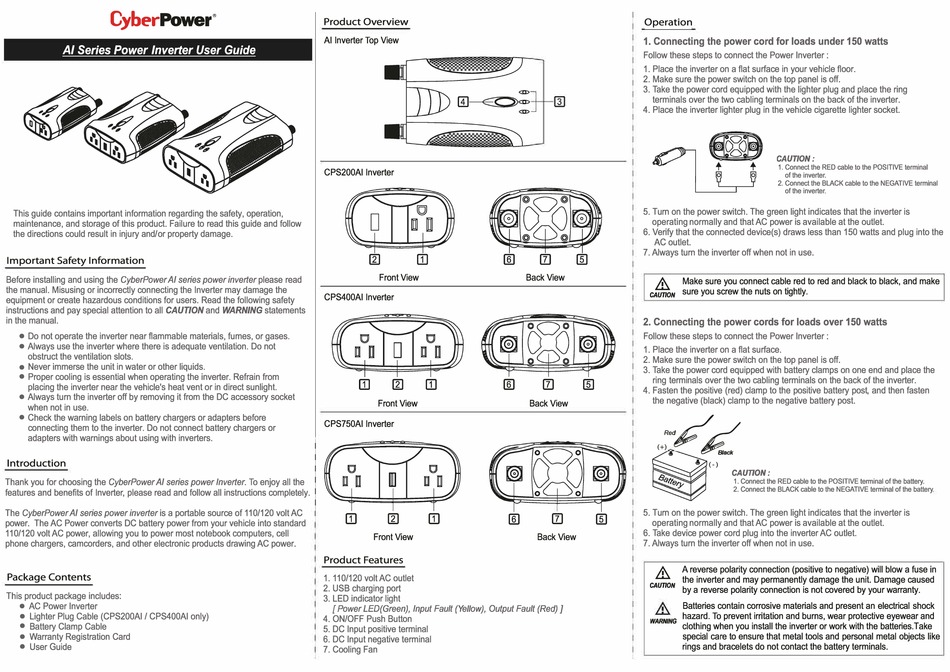

Cyber Power Al Series User Manual

CyberPower"
А/ Series Power lnverter User Guide
This guide contains important information regarding the safety, operation,
maintenance, and storage of this product. Failure to read this guide and follow
the directions could result in injury and/or property damage.
lmportant Safety lnformation
Before installing and using the
CyberPower А/ series power inverter
the manual. Misusing or incorrectly connecting the lnverter may damage the
equipment or create hazardous conditions for users. Read the following safety
instructions and рау special attention to all
CAUT/ON
in the manual.
• Do not operate the inverter near flammaЬle materials, fumes, or gases.
• Always use the inverter where there is adequate ventilation. Do not
obstruct the ventilation slots.
• Never immerse the unit in water or other liquids.
• Proper cooling is essential when operating the inverter. Refrain from
placing the inverter near the vehicle's heat vent or in direct sunlight.
• Always turn the inverter off Ьу removing it from the DC accessory socket
when not in use.
• Check the warning labels оп battery chargers or adapters before
connecting them to the inverter. Do not connect battery chargers or
adapters with warnings about using with inverters.
lntroduction
Thank you for choosing the CyberPower А/ series power lnverter.
features and benefits of lnverter, please read and follow all instructions completely.
The is а рогtаЫе source of 110/120 volt АС
CyberPower А/ series power inverter
power. The АС Power converts DC battery power from your vehicle into standard
110/120 volt АС power, allowing you to power most notebook computers, cell
phone chargers, camcorders, and other electronic products drawing АС power.
Package Contents
This product package includes:
• АС Power lnverter
• Lighter Plug СаЫе (CPS200AI / CPS400AI only)
• Battery Clamp СаЫе
• Warranty Registration Card
• UserGuide
Product Overview
AI lnverter Тор View
CPS200AI lnverter
Front View
please read
CPS400AI lnverter
and statements
WARNING
FrontView
CPS750AI lnverter
То enjoy all the
ш
FrontView
Product Features
1. 110/120 volt АС outlet
2. USB charging port
3. LED indicator light
[ Power LED(Green), lnput Fault (Yellow), Output Fault (Red)]
4. ON/OFF Push Button
5. DC lnput positive terminal
6. DC lnput negative terminal
7. Cooling Fan
BackView
ш
[Ю
BackView
ш ш ш
BackView
Operation
1. Connecting the power cord for loads under 150 watts
Follow these steps to connect the Power lnverter :
1. Place the inverter оп а flat surface in your vehicle floor.
2. Make sure the power switch оп the top panel is off.
3. Take the power cord equipped with the lighter plug and place the ring
terminals over the two caЬling terminals оп the back of the inverter.
4. Place the inverter lighter plug in the vehicle cigarette lighter socket.
CAUТION:
1. Connect the RED саЫе to the POSITIVE terminal
of the inverter.
2. Connect the BLACK саЫе to the NEGAТIVE terminal
of the inverter.
5. Turn оп the power switch. The green light indicates that the inverter is
operating normally and that АС power is availaЫe at the outlet.
6. Verify that the connected device(s) draws less than 150 watts and plug into the
AC outlet.
7. Always turn the inverter off when not in use.
.,&.
Make sure you connect саЫе red to red and Ыасk to Ыасk, and make
sure you screw the nuts оп tightly.
CAUТIO N
2. Connecting the power cords for loads over 150 watts
Follow these steps to connect the Power lnverter :
1. Place the inverter оп а flat surface.
2. Make sure the power switch оп the top panel is off.
3. Take the power cord equipped with battery clamps оп one end and place the
ring terminals over the two caЫing terminals оп the back of the inverter.
4. Fasten the positive (red) clamp to the positive battery post, and then fasten
the negative (Ыасk) clamp to the negative battery post.
-��
(-)BlackCAUT/ON:
(+)
1. Connect the RED саЫе to the POSIТIVE tenminal of the battery.
�
2. Connect the BLACK саЫе to the NEGAТIVE terminal of the battery
5. Turn оп the power switch. The green light indicates that the inverter is
operating normally and that АС power is availaЫe at the outlet.
6. Take device power cord plug into the inverter АС outlet.
7. Always turn the inverter off when not in use.
.,&.
А reverse polarity connection (positive to negative) will Ыоw а fuse in
the inverter and may permanently damage the unit. Damage caused
CAUТIO N
Ьу а reverse polarity connection is not covered Ьу your warranty.
Batteries contain corrosive materials and present ап electrical shock
hazard. То prevent irritation and burns, wear protective eyewear and
WARNING
clothing when you install the inverter or work with the batteries.Take
special саге to ensure that metal tools and personal metal objects like
rings and bracelets do not contact the battery terminals.
