Terminal 3
There are three types of AC connector for CPS Mini Central series inverters. Please follow the instructions
corresponding to the parts we offer you.
AC terminal :
1)

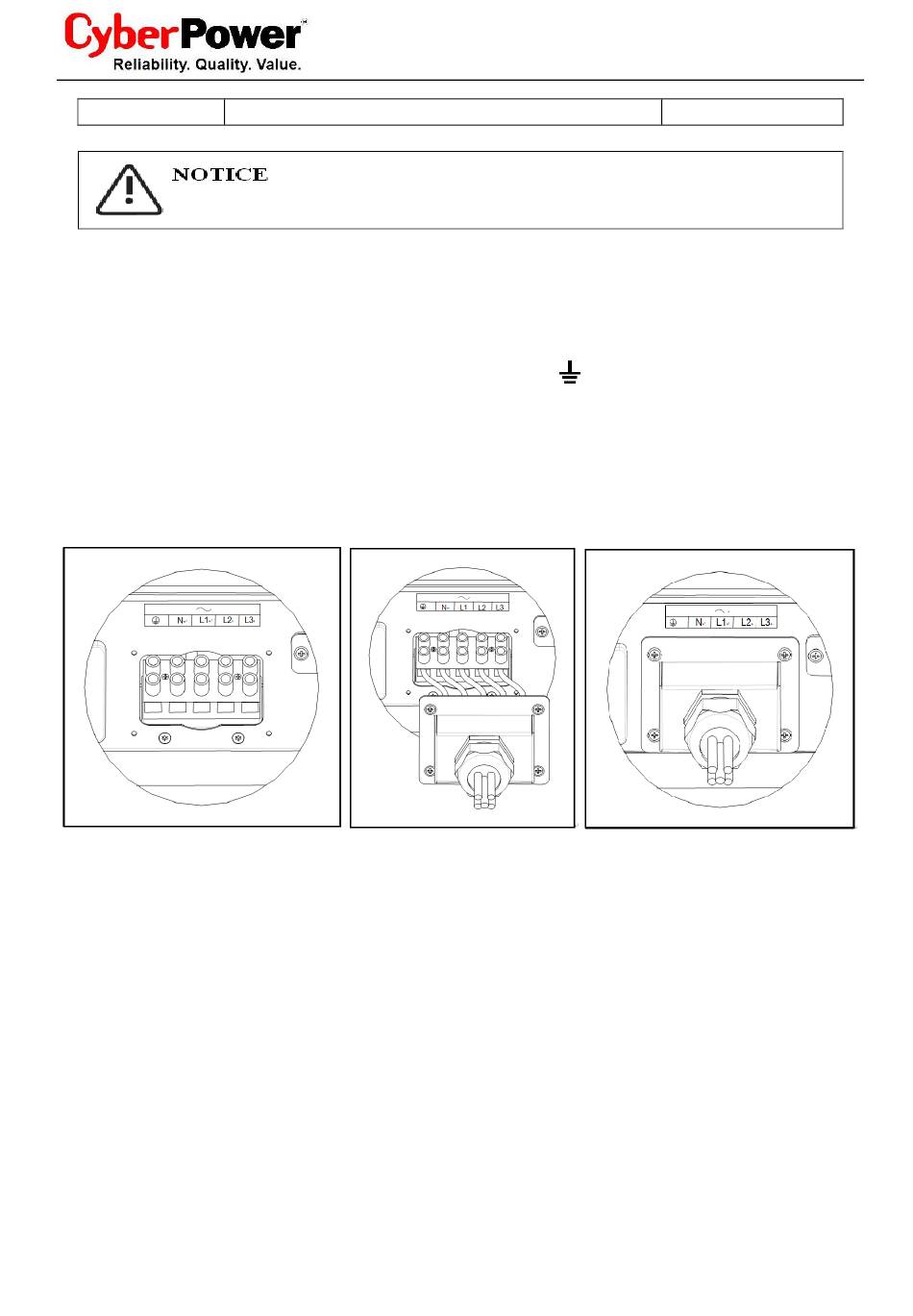

The AC side terminals of the inverter are like the following figure, it is clear to confirm that 'L1, L2, L3'
represents three live line output, 'N' represents neutral line and
2)
Connect five standard cables into relevant terminals. The five cables should be put through the protection
shell, as figure below.
3)
Fasten the protection shell onto the bottom of the inverter, make sure the four screws are tightened, the
completed appearance is like the below figure.
User Manual
6.0-16.0
Please do not use single-core wire cable.
24 / 61
10
is grounding line.
CPS Mini Central series
