  • Page 1 Power Inverter Diamond Series CPD1200EILCD User’s Manual...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1 IMPORTANT SAFETY INSTRUCTIONS…………………………..4 2 INSTALLATION……..………………………………………………..5 2-1 Unpacking………………………………………………………....5 2-2 Product Overview & Outlook…………………………………………..5 2-3 Power Requirements of Your Equipment…...………………………..7 2-4 Hardware Installation Guide……..…………………………………….7 3 DEFINITIONS FOR ILLUMINATED LCD INDICATORS…...9 4 OPERATION & CONFIGURATION……………………………….11 Power On/Off..……………………………………………………………...11 Function Setup……...…………………….…...………………....11 Audible Alarm……………………….…...……………………....11 Function Setup Guide……….…..……………………………....11 5 TROUBLESHOOTING……………………………………………..14...

  • Page 4: Important Safety Instructions

    1 IMPORTANT SAFETY INSTRUCTIONS (SAVE THESE INSTRUCTIONS) Before attempting to unpack, install, or operate the product, please read and follow all instructions carefully. CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor area free of conductive contaminants.

  • Page 5: Installation

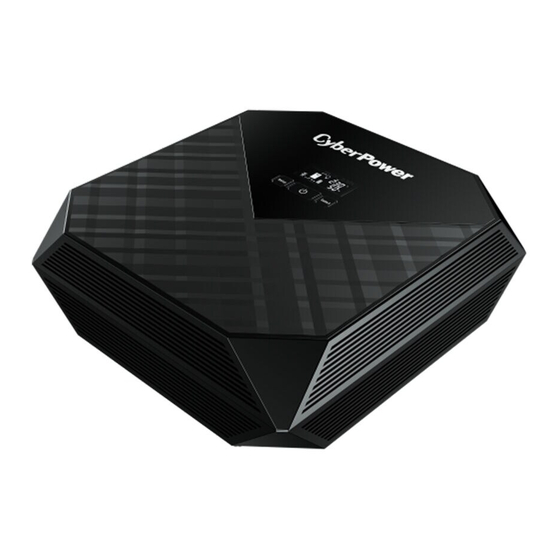

    2 INSTALLATION 2-1 Unpacking Inspect the product upon receipt. The box should contain the following: (a) This product; (b) User Manual; (c) Input Power Cord Power Inverter User Manual Input Power Cord 2-2 Product Overview & Outlook CyberPower Power Inverter ensures home/office users the always-on power supply with the exceptional power performance.
  • Page 6 CPD1200EILCD 1. Multifunction LCD Readout 2. Power On/off Switch 3. Function Buttons 4. AC Inlet 5. DC Input Cable(Red ”+”) 6. DC Input Cable(Black ”-”) 7. AC Outlet Application Diagram...

  • Page 7: Power Requirements Of Your Equipment

    Ensure that the equipment plugged into the AC outlet does not exceed the product’s rated capacity (1200VA/900W for CPD1200EILCD). If rated unit capacities are exceeded, an overload condition may occur and cause the unit to shut down or the circuit breaker trip.
  • Page 8 Multiple Batteries Connection – in Parallel Connect multiple batteries in parallel can increase total battery capacity but still keep terminal voltage as single battery voltage. Step 2 Connect the Product to Utility Connect the product to a wall outlet. Charging the battery for at least 8 hours is recommended to ensure that the battery’s maximum charge capacity is achieved.

  • Page 9: Definitions For Illuminated Lcd Indicators

    3 DEFINITIONS FOR ILLUMINATED LCD INDICATORS LCD Display The left half of the LCD screen displays the energy flow direction and the status of the Power Inverter. The right half of the LCD screen displays the input, output, and battery information. Icon Description Normal Mode (Power On)

  • Page 10: Operation Modes

    Mute This icon appears whenever the unit is in silent mode. However, when there is a problem with the unit, the alarm will still beep even in silent mode. Setup Mode This icon appears whenever the unit is in Setup Mode. Input / Output / Battery Information It indicates input, output, and battery information.

  • Page 11: Operation & Configuration

    4 OPERATION & CONFIGURATION Power On/Off Power On： ： ： ： Press the POWER button to turn on the unit. Power Off： ： ： ： Press the POWER button again to turn off the unit. Function Setup Press the SETUP button for 4 seconds to access the setup mode’s 9 functions: Audible Alarm, Input Voltage Range, Utility Charging Current, Auto Restart Voltage, Low Battery Shutdown Voltage, LCD Auto Sleep, Cycling Display, Back to Default, and Return to Status Display.
  • Page 12 range. Note: The transfer time will increase while the input voltage gets lower. If the connected equipment is sensitive to the transfer time, power interruption condition may occur. Page 3 – Utility Charging Current 10/15/20A With different battery capacity, adjust utility charging current to provide optimal recharging time.
  • Page 13 Page 7 – Cycling Display 0.5 Min If the buttons are not touched in 0.5/1 minute, the 0.5/1 Min LCD will start cycling the Inverter information. Page 8 – Back to Default Select Yes to restore the factory default settings. Page 9 –...

  • Page 14: Troubleshooting

    5 TROUBLESHOOTING Problem Possible Cause Solution The unit is not connected to an The unit must be connected to a AC wall outlet. 220/230V outlet. The product will not turn on. The battery is worn out. Replace the batteries. Mechanical problem. Contact CyberPower Systems.
  • Page 15 Fault Code Table Fault Code Event Audible Alarm Overload Rapid beeping every 1/2 second Output Voltage High Constant tone Output Short Constant tone Overload Fault Constant tone Fan Fail Constant tone Over Charge Constant tone Output Voltage Unbalance Constant tone...

  • Page 16: Technical Specifications

    6 TECHNICAL SPECIFICATIONS Model CPD1200EILCD Power Rating (VA/Watt) 1200VA/900W Input Narrow Mode: 170 - 280Vac Input Voltage Range Wide Mode: 90 - 280Vac Input Frequency 50/60Hz (Auto-sensing) Output Output Voltage 230Vac Output Frequency 50/60Hz Outlet Type (1) UN Transfer Time <...
