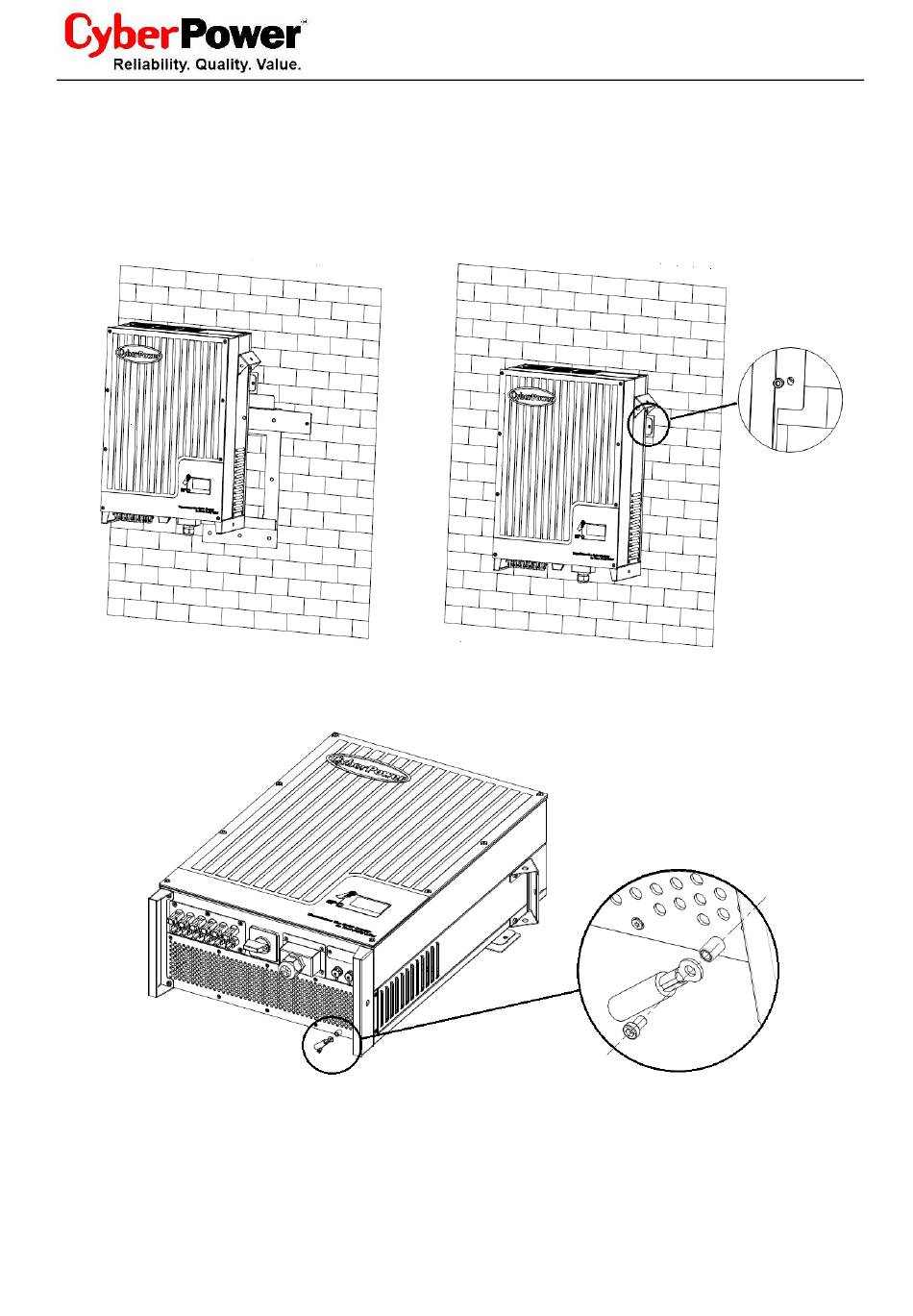

Installed one M6*10 screw at each side of inverter to reliable fixed it on the wall. Please reference in Fig
5.5(b).
Connection of a second protective conductor. Please reference in Fig5.6.
Recommend awning installation, the purpose is to extend the inverter service life and reduce the power
derating of the inverter. The dimension of the awning refer to Fig5.8.
User Manual
Fig 5.5
Fig. 5.6
20 / 61
CPS Mini Central series
