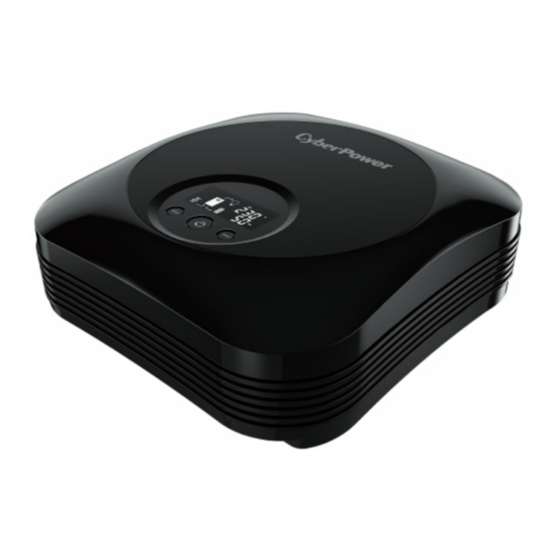

Power Inverter
CPS1000EILCD
CPS1200EILCD
CPS2200EILCD
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPS1000EILCD and is the answer not in the manual?

Questions and answers

Related Manuals for Cyber Power CPS1000EILCD

Summary of Contents for Cyber Power CPS1000EILCD

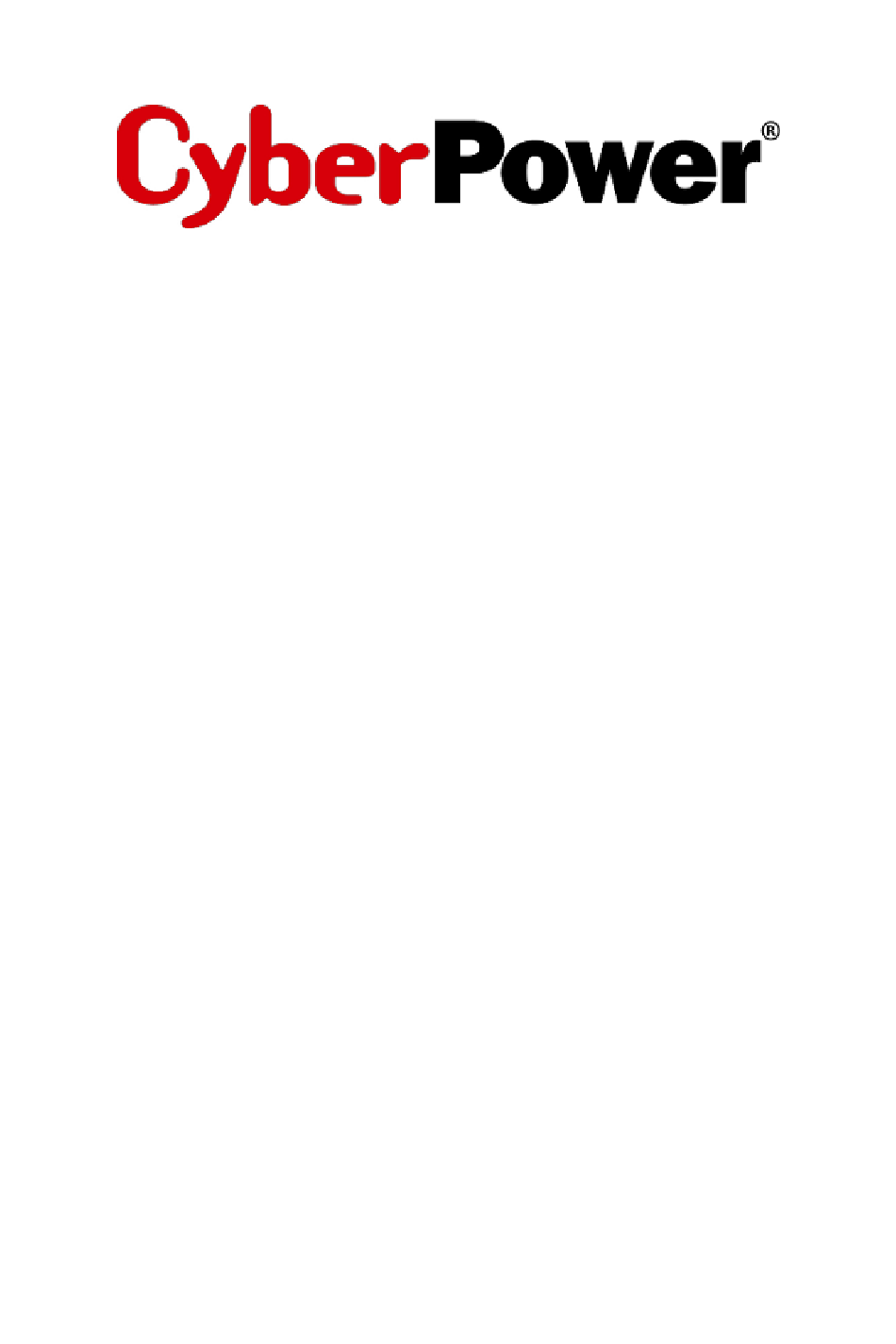

  • Page 1 Power Inverter CPS1000EILCD CPS1200EILCD CPS2200EILCD User’s Manual...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1 IMPORTANT SAFETY INSTRUCTIONS…………………………..4 2 INSTALLATION……..………………………………………………..5 2-1 Unpacking………………………………………………………....5 2-2 Product Overview & Outlook…………………………………………..5 2-3 Power Requirements of Your Equipment…...………………………..7 2-4 Hardware Installation Guide……..…………………………………….7 3 DEFINITIONS FOR ILLUMINATED LCD INDICATORS…...9 4 OPERATION & CONFIGURATION……………………………….11 Power On/Off..……………………………………………………………...11 Function Setup…………...………………………………………………...11 Audible Alarm…………………….…...…………………….…....11 Function Setup Guide…..………….…...……………………....11 Charger Control…..……………………………........13...

  • Page 4: Important Safety Instructions

    1 IMPORTANT SAFETY INSTRUCTIONS (SAVE THESE INSTRUCTIONS) Before attempting to unpack, install, or operate the product, please read and follow all instructions carefully. CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor area free of conductive contaminants.

  • Page 5: Installation

    2 INSTALLATION 2-1 Unpacking Inspect the product upon receipt. The box should contain the following: (a) This product; (b) User Manual; (c) Input Power Cord User Manual Input Power Cord Power Inverter 2-2 Product Overview & Outlook CyberPower Inverter ensures home/office users the always-on power supply with the exceptional power performance.
  • Page 6 CPS1000EILCD / CPS1200EILCD / CPS2200EILCD Application Diagram...

  • Page 7: Power Requirements Of Your Equipment

    2-3 Power Requirements of Your Equipment Ensure that the equipment plugged into the AC outlet does not exceed the product’s rated capacity (1000VA/680W for CPS1000EILCD; 1200VA/780W for CPS1200EILCD; 2200VA/1320W for CPS2200EILCD). If rated unit capacities are exceeded, an overload condition may occur and cause the unit to shut down or the circuit breaker trip.
  • Page 8 Multiple Batteries Connection – in Parallel Connect multiple batteries in parallel can increase total battery capacity but still keep terminal voltage as single battery voltage. Step 2 Connect the Product to Utility Connect the product to a wall outlet. Charging the battery for at least 8 hours is recommended to ensure that the battery’s maximum charge capacity is achieved.

  • Page 9: Definitions For Illuminated Lcd Indicators

    3 DEFINITIONS FOR ILLUMINATED LCD INDICATORS LCD Display The left half of the LCD screen displays the energy flow direction and the status of the Power Inverter. The right half of the LCD screen displays the input, output, and battery information. Icon Description Normal Mode (Power On)
  • Page 10 Overload This icon appears and an alarm sounds to indicate the outlet is overloaded. Mute This icon appears whenever the unit is in silent mode. However, when there is a problem with the unit, the alarm will still beep even in silent mode.

  • Page 11: Operation & Configuration

    4 OPERATION & CONFIGURATION Power On/Off Power On： Press the POWER button to turn on the unit. Power Off： Press the POWER button again to turn off the unit. Function Setup Press the SETUP button for 4 seconds to access the setup mode’s 7 functions: Audible Alarm, Auto Restart Voltage, Low Battery Shutdown Voltage, LCD Auto Sleep, Cycling Display, Back to Default, and Return to Status Display.
  • Page 12 Page 3 – Low Battery Shutdown CPS1000/1200E 10.0V The Power Inverter will shut Voltage ILCD: (20.0V for off if the battery voltage is 10.0 CPS2200 decreasing to the setting /10.2/10.4 EILCD) value. /10.6/10.8/11.0V CPS2200EILCD: 20.0 /20.4/20.8 /21.2/21.6/22.0V Page 4 – LCD Auto Sleep 1 Min If Auto Sleep is selected, the LCD display will shut off after...

  • Page 13: Charger Control

    CAUTION! The setting should be performed by trained personnel. Incorrect operation will damage the battery.  Default: The charging voltage is 13.7V for CPS1000EILCD/CPS1200EILCD and 27.4V for CPS2200EILCD.  Customized (for poor battery condition): The charging voltage is 13.3V for CPS1000EILCD/CPS1200EILCD and 26.6V for CPS2200EILCD.

  • Page 14: Troubleshooting

    5 TROUBLESHOOTING Problem Possible Cause Solution The unit is not connected to an The unit must be connected to a AC wall outlet. 220/230V outlet. The product will not turn on. The battery is worn out. Replace the batteries. Mechanical problem. Contact CyberPower Systems.
  • Page 15 Fault Code Table Fault Code Event Audible Alarm Overload Rapid beeping every 1/2 second Output Voltage High Constant tone Output Short Constant tone Overload Fault Constant tone Fan Fail Constant tone Over Charge Constant tone Output Unbalance Constant tone...

  • Page 16: Technical Specifications

    6 TECHNICAL SPECIFICATIONS Model CPS1000EILCD CPS1200EILCD CPS2200EILCD Power Rating (VA/Watt) 1000VA/680W 1200VA/780W 2200VA/1320W Input Narrow Mode: 190 - 260Vac Input Voltage Range Wide Mode: 100 - 280Vac Input Frequency 50/60Hz (Auto-sensing) Output Output Voltage 230Vac Output Frequency 50/60Hz Outlet Type...
