Cyber Power CPS5000ECH48 User Manual

All-in-one off-grid inverter
Hide thumbs
Table of Contents

Advertisement

Quick Links

All-In-One Off-Grid Inverter
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPS5000ECH48 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cyber Power CPS5000ECH48

Summary of Contents for Cyber Power CPS5000ECH48

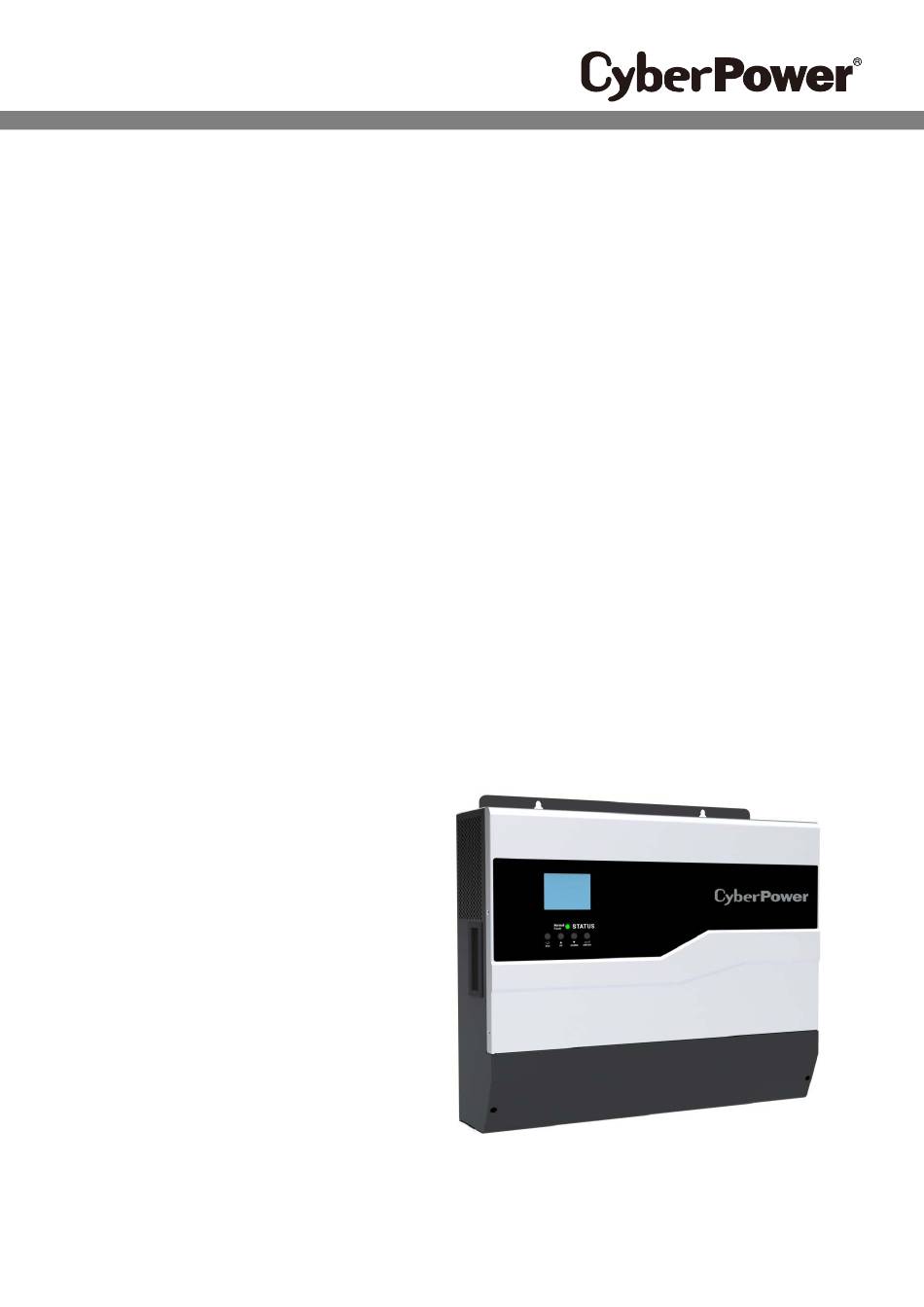

  • Page 1 All-In-One Off-Grid Inverter User’s Manual...

  • Page 3: Table Of Contents

    Contents 1 Brief Introduction ......................1 1.1 Preface ..............................1 1.2 Target Group ............................1 1.3 Product Description ..........................1 1.4 Basic System Architecture ........................2 1.5 Product Overview..........................2 2 Safety Instructions ......................4 3 Installation........................5 3.1 Unpacking and Inspection ........................5 3.2 Basic Installation Requirements ......................

  • Page 4: Brief Introduction

    1 Brief Introduction 1.1 Preface This manual describes the assembly, installation, operation and troubleshooting. Please read this manual carefully and put this manual on some place where is convenient to installation, operation, obtain. Any modifications of user’s manual, we will not notify the user. 1.2 Target Group Only qualified and trained electrical technicians are allowed to install and operate the unit.

  • Page 5: Basic System Architecture

    1.4 Basic System Architecture Solar power Generator Utility Home Appliances External Battery Packs Figure 1-1 As shown in above system diagram, the unit is used to power common house appliances including some inductive load such as light, refrigerator. Also, diesel generator and power grid can be compensation in which solar energy is insufficient as well as to charge the battery.
  • Page 6 NOTE: For parallel model installation and operation, please check separate” parallel & three phase installation guide” for the details. Only CPS5000ECH48 have the function. Table 1-1 Position Description LCD Display Status Indicator Function Buttons Power ON/OFF Switch Dry Contact RS485 Communication Port (Reserve)

  • Page 7: Safety Instructions

    2 Safety Instructions This chapter contains important safety and operating instructions. Read and keep this manual for future reference. W A R N IN G 1. Before using the unit, read all instructions and cautionary marking on the unit, the batteries and all appropriate sections of this manual.

  • Page 8: Installation

    3 Installation 3.1 Unpacking and Inspection Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You should have received the following items inside of package: The unit×1 User manual×1 Setting screws×3 3.2 Basic Installation Requirements 1.
  • Page 9 9. In order to ensure machine can run normally and easy to operate, please pay attention to provide adequate space for the inverter. Please refer to below: Figure 3-2 10. Do not install the machine near television antenna or any other antennas and antenna cables. 11.

  • Page 10: Inverter Connection

    Torque ( �������� Model Charging Wire Size Cable ���� Capacity Charge Current Value Current (mm) (mm) CPS5000ECH48 130A 200AH 2*8AWG 29.2 2-3Nm CPS3000ECH48 100A 100AH 1*6AWG 29.2 2-3Nm Note: For lead acid battery, the recommended charge current is 0.2C (C battery capacity).
  • Page 11 Please follow below steps to implement lead-acid battery connection: 1. Assemble battery ring terminal based on recommended battery cable and terminal size (same as Lead acid,see section 3.3.2 for details). 2. Insert the ring terminal of battery cable flatly into battery connector of inverter and make sure the bolts are tightened with torque of 2-3Nm.Make sure polarity at both the battery and the inverter/charge is correctly connected and ring terminals are tightly screwed to the battery terminals.

  • Page 12: Ac Input & Output Connection

    AC input connection. To reduce risk of injury, please use the proper recommended cable size as below. Suggested cable requirement for AC wires: Table 3-2 Model Wire size Torque value CPS5000ECH48 1*8AWG 1.4-1.6Nm CPS3000ECH48 1*10AWG 1.4-1.6Nm Please follow below steps to implement AC input/output connection: Before making AC input/output connection, be sure to open DC protector or disconnector first.
  • Page 13 Figure 3-8 Be sure that AC power source is disconnected before attempting to hardwire it to the unit. W A R N IN G 4. Then, insert AC output wires according to polarities indicated on terminal block and tighten terminal screws. Be sure to connect PE protective conductor first.

  • Page 14: Pv Connection

    W A R N IN G use the proper recommended cable size as below. Table 3-3 Model Max charging current per string Diameter Torque CPS5000ECH48 1*10AWG 1.2-1.6Nm CPS3000ECH48 1*10AWG 1.2-1.6Nm PV Module Selection: When selecting proper PV modules, please be sure to consider below parameters: 1.

  • Page 15: Finally Assemble

    2. Check correct polarity of connection cable from PV modules and PV input connectors. Then, connect positive pole (+) of connection cable to positive pole (+) of PV input connector. Connect negative pole (-) of connection cable to negative pole (-) of PV input connector. Figure 3-11 Figure 3-12 3.

  • Page 16: Communication Connection

    4 Communication Connection The unit is compatible with RS232 and RS485 communication. It can be monitored by RS232 port on local PC or RS485 port on data logger, and configured by RS232 port on local PC. RS485 RS232 Figure 4-1...

  • Page 17: Dry Contact

    5 Dry Contact There’s one dry contact (2A/30VDC) available on the rear panel. It could be used to deliver signal to external device when battery voltage reached warning level. Table 5-1 Dry contact port: Unit Status Condition NC & N NO &...

  • Page 18: Operation

    6 Operation 6.1 Power ON/OFF Once the unit has been properly installed and the batteries are connected well, simply press On/Off switch (located on the button of the case) to turn on the unit. Figure 6-1 6.2 Operation and Display Panel The operation and display panel, shown in below chart, are on the front panel of the inverter.
  • Page 19 Buzzer： Table 6-2 Status Description Beeps every 3 seconds Inverter is in warning state Beeps constantly Inverter is in error state Buttons： Table 6-3 Function Description To exit setting mode To go to previous selection DOWN To go to next selection ENTER To confirm the selection in setting mode or enter setting mode LCD Display：...

  • Page 20: Lcd Display Description

    6.3 LCD Display description In the first line of the LCD, it displays the warning error code & current status & setting item. The current status includes Normal, Warn, and Error. More info about error & warning code and setting item please refer to following pages. In the second line of the LCD, it displays input &...
  • Page 21 Display： Table 6-5 Item Description It presents battery capacity. Each interval indicates battery capacity level by 0-20% Load power: Each interval indicates load level by 0-25% Indicates unit connects to the mains or generator Indicates unit connects to PV modular. One PV modular icon presents one string PV modular connects to the unit Indicates the DC/DC (MPPT) circuit is working.
  • Page 22 LCD Display Description： Table 6.6 Item Description Battery powers the load. PV energy charges battery. Utility energy charges battery. PV and utility energy charge battery together. PV energy is charging battery while battery powers the load. PV energy is charging battery while utility powers the load. Utility powers the load and charges battery.
  • Page 23 LCD Description： When the power switch is turned on, pressing and holding Enter button immediately for 3 seconds, the unit will into the setting mode. Press “UP” or “DOWN” button to select setting programs. And then, press “ENTER” button to confirm the selection or ESC button to exit. Table 6-7 Main menu Submenu...
  • Page 24 Main menu Submenu Description PV first Solar energy will charge battery as first priority. (default) Utility (during utility’s charging time) will charge battery only when solar energy is not available. Charge Source PV & UTI Solar energy and utility (during utility’s charging time) charge the battery at the same time.
  • Page 25 Main menu Submenu Description Enable auto restart when temperature occurs. OverTemp Restart (default) Disable auto restart when temperature occurs. Alarm on. (default) Buzzer ON/OFF Alarm off. Lead_Acid Lead_Acid. Battery Type Custom Self-defined Lead_Acid. Lead_Acid If battery type is selected as lead acid battery, xxxA Max charge Curr this program can be set up.
  • Page 26 Error Description： Table 6-8 Error code Description Bat voltage high Battery voltage is high Over Temperature Over temperature Over Load Over load Over Current Over current MOV break MOV failed Error: 101 M3 failed to communicate with DSP Error: 102 The sample from M3 and DSP of the battery voltage is inconsistent Error: 103 Buck over current...

  • Page 27: Specifications

    7 Specifications Line Mode Specifications: Table 7-1 INVERTER MODEL CPS3000ECH48 CPS5000ECH48 Input Voltage Waveform Sinusoidal (utility or generator) Nominal Input Voltage 230VAC Low Loss Voltage 170±5VAC(UPS) 90±5VAC(APL) 180±5VAC(UPS) 100±5VAC(APL) Low Loss Return Voltage 280±5VAC High Loss Voltage 270±5VAC High Loss Return Voltage...
  • Page 28 Bat Mode Specifications: Table7-2 INVERTER MODEL CPS3000ECH48 CPS5000ECH48 Rated Output Power 3KVA/2.4KW 5KVA/4KW Output Voltage Waveform Pure Sine Wave Output Voltage Regulation 230±5%VAC/208VAC/240VAC Output Voltage Frequency 50Hz (default)/60Hz Peak Efficiency 93.5% Overload Protection 10s (110%-150%) 5s (150%-200%) Battery Type Lead_Acid Battery Voltage Range 38.4V-60V (Lead_Acid)
  • Page 29 PV Mode Specifications: Table7-3 INVERTER MODEL CPS3000ECH48 CPS5000ECH48 PVA MAX Power 1750W PVB MAX Power 1750W PVA MAX input current PVB MAX input current Total PV MAX charge current Efficiency 98.0% MAX Max. PV Array Open Circuit 145VDC Voltage PV Array MPPT Voltage Range...

  • Page 30: Trouble Shooting

    8 Trouble Shooting Table8-1 Explanation/ Problem What to do Possible cause Unit shuts down 1. Re-charge battery. automatically during The battery voltage is too low 2. Replace battery. startup process. 1. The battery voltage is far 1. Check if batteries and the No response after power too low.

  • Page 31: Manufacturer Warranty

    Warranted products This warranty is applicable solely to the following products: CyberPower CPS3000ECH48 CyberPower CPS5000ECH48 Limited Product Warranty (Applicable under normal application, installation, use and service conditions) CyberPower provides a non-transferable warranty for a period of 2 years for the above listed products.

  • Page 32: Appendix

    2700 3000 1288 1000 1500 2000 2500 CPS5000ECH48 3000 3500 4000 4500 5000 Note: Back up time depends on the quality of the battery, age of battery and type of battery. Specifications of batteries may vary depending on different manufacturer...
  • Page 33 Note...
  • Page 34 Note...
  • Page 36 www.CyberPower.com...

This manual is also suitable for:

Cps3000ech48
