Data Label Information _______________

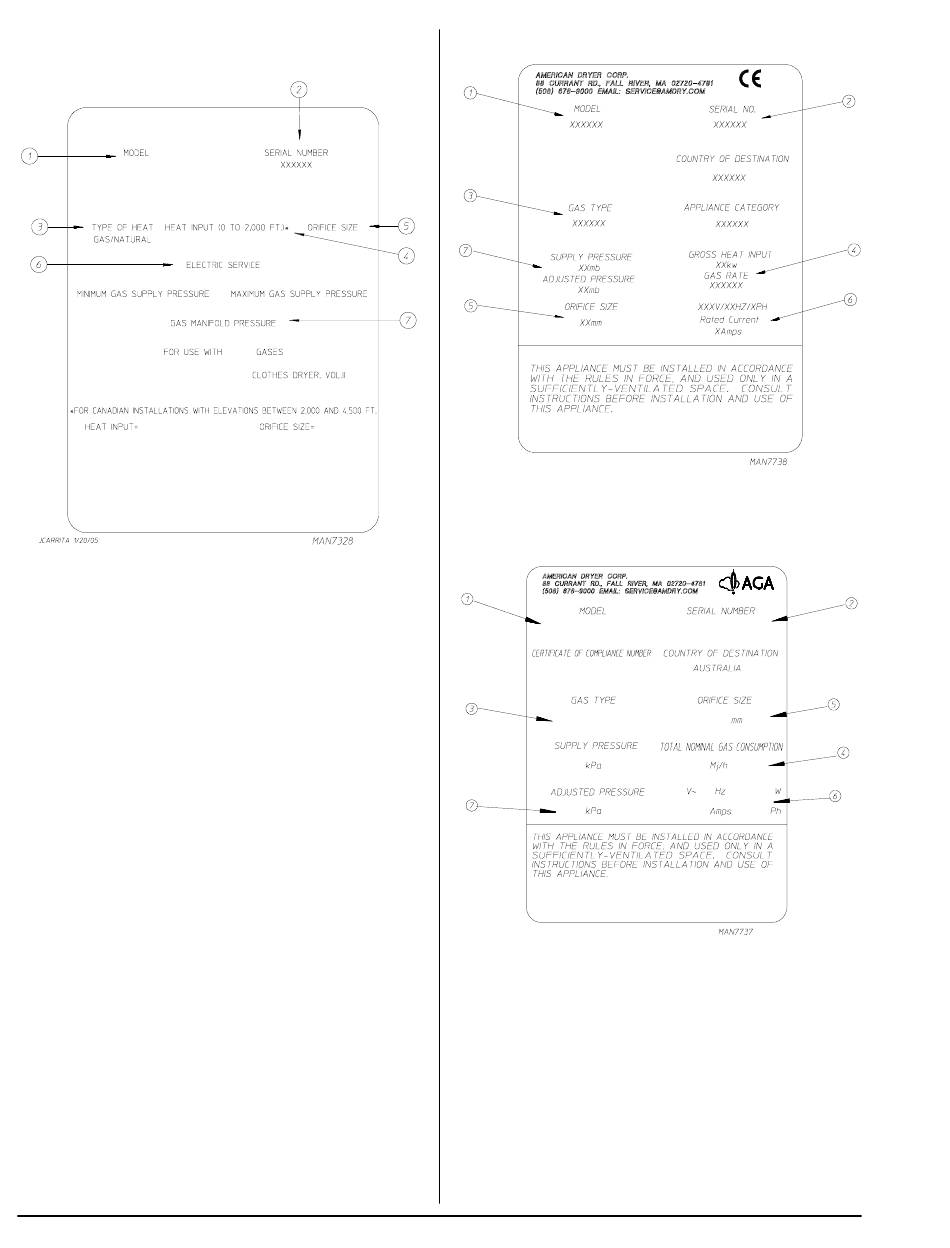

Standard Label

When contacting ADC, certain information is required to

ensure proper service/parts information from ADC. This

information is on the data label located on the left side panel

area behind the top control (access) door. When contacting

ADC, please have the model number and serial number

available.

1. Model Number – This describes the style of dryer and

type of heat (gas, electric, or steam).

2. Serial Number – Allows the manufacturer to gather

information on your particular dryer.

3. Type of Heat – This describes the type of heat for your

particular dryer, gas (either natural gas or L.P. gas), electric,

or steam.

4. Heat Input (For Gas Dryers) – This describes the heat

input in British thermal units per hour (Btu/hr) or kilowatts

(kW).

5. Orifice Size (For Gas Dryers) – Gives the number drill

size used.

6. Electric Service – This describes the voltage and

current rating for a particular model.

7. Gas Manifold Pressure (For Gas Dryers) – This

describes the manifold pressure taken at the gas valve

tap.

CE Label

AGA Label

American Dryer Corp.

113237 - 15
