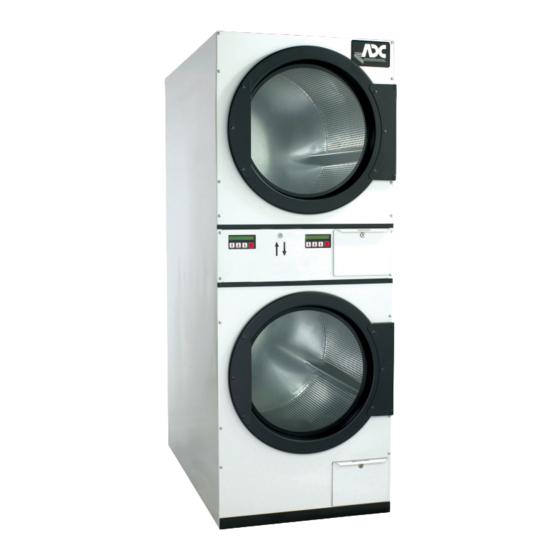

ADC AD-236 Installation Manual

Phase 7
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AD-236 Installation Manual
WARNING: For your safety the
information in this manual must be
followed to minimize the risk of fire or
explosion and to prevent property
damage, personal injury or death.
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS:
●
Do not try to light any appliance.
●
Do not touch any electrical switch;
do not use any phone in your
building.
●
Clear the room, building or area of
all occupants.
●
Immediately call your gas supplier
from a neighbor's phone. Follow
the gas supplier's instructions.
●
If you cannot reach your gas
supplier, call the fire department.
— Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
Phase 7
AVERTISSEMENT: Assurez-vous de
bien suivre les instructions données dans
cette notice pour réduire au minimum le
risque d'incendie ou d'explosion ou pour
éviter tout dommage matériel, toute
blessure ou la mort.
—Ne pas entreposer ni utiliser d'essence
ni d'autres vapeurs ou liquides
inflammables à proximité de cet
appareil ou de tout autre appareil.
—QUE FAIRE SI VOUS SENTEZ UNE
ODEUR DE GAZ:
●
Ne pas tenter d'allumer d'appareils.
●
Ne touchez à aucun interrupteur. Ne
pas vous servir des téléphones se
trouvant dans le bâtiment.
●
Évacuez la pièce, le bâtiment ou la
zone.
●
Appelez immédiatement votre
fournisseur de gaz depuis un voisin.
Suivez les instructions du fournisseur.
●
Si vous ne pouvez rejoindre le
fournisseur de gaz, appelez le service
des incendies.
—L'installation et l'entretien doivent être
assurés par un installateur ou un
service d'entretien qualifié ou par le
fournisseur de gaz.
American Dryer Corporation
Telephone: +1 (508) 678-9000 / Fax: +1 (508) 678-9447
88 Currant Road
Fall River MA 02720-4781 USA
e-mail: techsupport@amdry.com
www.adclaundry.com
ADC Part No. 113215 - 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AD-236 and is the answer not in the manual?

Questions and answers

Related Manuals for ADC AD-236

Summary of Contents for ADC AD-236

  • Page 1 American Dryer Corporation 88 Currant Road Fall River MA 02720-4781 USA Telephone: +1 (508) 678-9000 / Fax: +1 (508) 678-9447 e-mail: techsupport@amdry.com www.adclaundry.com ADC Part No. 113215 - 12...
  • Page 2 Replacement parts can be obtained from your reseller or the ADC factory. When ordering replacement parts from the factory, you can FAX your order to ADC at +1 (508) 678-9447 or telephone your order directly to the ADC Parts Department at +1 (508) 678-9000. Please specify the dryer model number and serial number in addition to the description and part number, so that your order is processed accurately and promptly.
  • Page 3 WARNING Proposition 65 Use of this product could expose you to substances from fuel combustion that contain chemicals known to the State of California to cause cancer, birth defects and other reproductive harm. In the State of Massachusetts, the following installation instructions apply: ■...
  • Page 4 FOR YOUR SAFETY DO NOT DRY MOP HEADS IN THE DRYER. DO NOT USE DRYER IN THE PRESENCE OF DRY CLEANING FUMES. WARNING UNDER NO CIRCUMSTANCES should the dryer door switches, lint drawer switch, or heat safety circuit ever be disabled. DO NOT MODIFY THIS APPLIANCE.

  • Page 5: Table Of Contents

    Table of Contents SECTION I SAFETY PRECAUTIONS ..........................2 SECTION II SPECIFICATIONS ............................5 SECTION III INSTALLATION PROCEDURES ........................ 7 A. Unpacking / Setting Up ........................7 B. Location Requirements ......................... 8 C. Dryer Enclosure Requirements ......................9 D. Fresh Air Supply Requirements ......................10 E.

  • Page 6: Safety Precautions

    5. Installation and service must be performed by a qualified installer, service agency, or gas supplier. 6. Dryer(s) must be exhausted to the outdoors. 7. Although ADC produces a very versatile dryer, there are some articles that, due to fabric composition or cleaning method, should not be dried in it.
  • Page 7 WARNING: DO NOT use heat for drying articles that contain plastic, foam, sponge rubber, or similarly textured rubberlike materials. Drying in a heated basket (tumbler) may damage plastics or rubber and may be a fire hazard. 8. The possible presence of residual quantities of aggressive or decomposed chemicals in the load may produce damage to the machine and harmful fumes.
  • Page 8 WARNING: Disconnect power before resetting the hi-limit. The hi-limit is located on the top front of the lint box. Press and release and the hi-limit will reset. CE ONLY IMPORTANT: This appliance must only be installed and operated in the country of destination indicated on the dryer’s data plate.

  • Page 9: Specifications

    (NORMAL LOAD) PER POCKET SUPPLY CONNECTION PER POCKET RETURN CONNECTION PER POCKET Shaded areas are stated in metric equivalents 1/25/11 NOTE: ADC reserves the right to make changes in specifications at any time without notice or obligation. 113215 - 12 www.adclaundry.com...
  • Page 10 SPECIFICATIONS NOTE: ADC reserves the right to make changes in specifications at any time without notice or obligation. American Dryer Corp. 113215 - 12...

  • Page 11: Installation Procedures

    Dryers are shipped with a coin box and coin box faceplate ONLY. The coin box lock is not included and must be purchased elsewhere or the lock can be ordered as a parts order from the ADC Parts Department at (508) 678-9000.

  • Page 12: Location Requirements

    B. LOCATION REQUIREMENTS Before installing the dryer, be sure the location conforms to local codes and ordinances. In the absence of such codes or ordinances the location must conform with the National Fuel Gas Code ANSI.Z223.1 LATEST EDITION, or in Canada, the installation must conform to applicable Canadian Standards: CAN/CGA-B149.1- M91 (Natural Gas) or CAN/CGA-B149.2-M91 (Liquid Propane [L.P.] Gas) or LATEST EDITION (for General Installation and Gas Plumbing).

  • Page 13: Dryer Enclosure Requirements

    C. DRYER ENCLOSURE REQUIREMENTS Bulkheads and partitions must be made of noncombustible materials and must be located a minimum of 12-inches (30.48 cm) above the dryer outer top, except along the front of the dryer which may be partially closed in if desired.

  • Page 14: Fresh Air Supply Requirements

    D. FRESH AIR SUPPLY REQUIREMENTS This appliance may only be installed in a room that meets the appropriate ventilation requirements specified in the national installation regulations. When the dryer is operating, it draws in room air, heats it, passes this air through the basket (tumbler), and exhausts it out of the building.

  • Page 15: Exhaust Requirements

    E. EXHAUST REQUIREMENTS Exhaust ductwork should be designed and installed by a qualified professional. Improperly sized ductwork will create excessive back pressure which results in slow drying, increased use of energy, overheating of the dryer, and shut down of the burner by the airflow (sail) switches, burner hi-limits, or basket (tumbler) hi-limit thermostats. The dryer must be installed with a proper exhaust duct connection to the outside.
  • Page 16 ALL ductwork should be smooth inside with no projections from sheet metal screws or other obstructions, which will collect lint. When adding ducts, the duct to be added should overlap the duct to which it is to be connected. ALL ductwork joints must be taped to prevent moisture and lint from escaping into the building.
  • Page 17 NOTE: Refer to the illustration below for examples of multiple dryer (common) venting. IMPORTANT: For extended ductwork runs, the cross-sectional area of the ductwork can only be increased to an extent. When the ductwork approaches the maximum limits as noted in this manual, a professional heating, ventilating, and air-conditioning (HVAC) firm should be consulted for proper venting information.

  • Page 18: Electrical Information

    VOID THE WARRANTY. NOTE: Component failure due to improper voltage application will VOID THE WARRANTY. NOTE: ADC reserves the right to make changes in specifications at any time without notice or obligation. American Dryer Corp.
  • Page 19 2. Electrical Service Specifications GAS MODELS ELECTRICAL SERVICE SPECIFICATIONS (PER POCKET) IMPORTANT: 208 VAC AND 240 VAC ARE NOT THE SAME. When ordering, specify exact voltage. NOTES: When fuses are used they must be dual element, time delay, current limiting, class RK1 or RK5 ONLY. Calculate/determine correct fuse value, by applying either local and/or National Electrical Codes to listed appliance amp draw data.
  • Page 20 4. Electrical Connections A wiring diagram is located inside the control box for connection data. If local codes permit, power to the dryer can be made by the use of a flexible U.L. listed power cord/pigtail (wire size must conform to rating of dryer), or the dryer can be hard wired directly to the service breaker panel.
  • Page 21 Single-Phase Electrical Lead Connections White or Red Black Green Neutral Positive Ground or L2 FOR 110V APPLICATIONS FOR 208-230/240V APPLICATIONS A ground lug is provided in the rear electrical box to connect your service ground. 113215 - 12 www.adclaundry.com...

  • Page 22: Gas Information

    5. 3-Phase (3ø) Wiring Connections The only electrical input connections to the dryer are the 3-phase (3ø) power leads (L1, L2, L3, and sometimes Neutral) and ground. Single-phase (1ø) power for the control circuits is done internally to the dryer. No single-phase (1ø) input connection is required on a 3-phase (3ø) dryer. 3-Phase (3ø) Hookup For gas dryers manufactured for operation at 3-phase (3ø), the electrical input connections are made at the terminal blocks located in the top electrical box at the rear of the dryer.
  • Page 23 The adjustment or conversion of dryers in the field for elevations over 2,000 feet (610 meters) is made by changing each burner orifice. If this conversion is necessary, contact the reseller who sold the dryer or the ADC factory. IMPORTANT: THIS GAS DRYER IS NOT PROVIDED WITH AN INTERNAL GAS SUPPLY SHUTOFF AND AN EXTERNAL GAS SUPPLY SHUTOFF MUST BE PROVIDED.
  • Page 24 2. Technical Gas Data a. Gas Specifications For Australia, refer to data plate. TYPE OF GAS NATURAL LIQUID PROPANE Manifold Pressure* 3.5 inches W.C. 8.7 mb 10.5 inches W.C. 26.1 mb 6.0 - 12.0 inches W.C. 14.92 - 29.9 mb 27.4 mb In-Line Pressure 11.0 inches W.C.
  • Page 25 3. Piping Connections ALL components/materials must conform to National Fuel Gas Code Specifications ANSI Z223.1-LATEST EDITION, or in Canada, CAN/CGA-B149.1-M91 (Natural Gas) or CAN/CGA-B149.2-M91 (Liquid Propane [L.P.] Gas) or LATEST EDITION (for General Installation and Gas Plumbing), as well as local codes and ordinances and must be done by a qualified professional.
  • Page 26 NOTE: The dryer must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure test of the gas supply system at test pressures equal to or less than 1/2 psig (3.5 kPa). American Dryer Corp.

  • Page 27: Preparation For Operation / Start-Up

    H. PREPARATION FOR OPERATION / START-UP The following items should be checked before attempting to operate the dryer: 1. Read ALL “CAUTION,” “WARNING,” and “DIRECTION” labels attached to the dryer. 2. Check incoming supply voltage to be sure that it is the same as indicated on the dryer data label. In the case of 208 VAC OR 230/240 VAC THE SUPPLY VOLTAGE MUST MATCH THE ELECTRIC SERVICE EXACTLY.
  • Page 28 NOTE: To stop dryer, open main door or press the pause key. Continuation of the cycle will resume only after the door has been closed and any of the three (3) temperature selection is pressed. f. Upon completion of the drying and cooling cycles, the tone (buzzer) will sound and the dryer will go into the Wrinkle Guard Mode for 99 minutes, or until the main door has been opened.

  • Page 29: Shutdown Instructions

    IMPORTANT: There is no regulator provided in an L.P. dryer. The water column pressure must be regulated at the source (L.P. tank) or an external regulator must be added to each dryer. 4. Make a complete operational check of ALL the operating controls to ensure that the timing is correct and that the temperatures are set properly.

  • Page 30: Service / Parts Information

    Replacement parts should be purchased from the reseller from whom the ADC equipment was purchased. If the reseller cannot be contacted or is unknown, contact the ADC Parts Department for a reseller in your area. Parts may also be purchased directly from the factory by calling the ADC Parts Department at (508) 678-9000 or you may FAX in your order at (508) 678-9447.

  • Page 31: Warranty Information

    A. RETURNING WARRANTY CARDS Before any dryer leaves the ADC factory test area, a warranty card is placed on the back side of the main door glass. These warranty cards are intended to serve the customer where we record the individual installation date and warranty information to better serve you should you file a warranty claim.
  • Page 32 IMPORTANT: No replacements, credits, or refunds will be issued for merchandise damaged in transit. 5. ALL returns should be shipped to the ADC factory in such a manner that they are ensured and a proof of delivery can be obtained by the sender.

  • Page 33: Routine Maintenance

    Maximum operating efficiency is dependent upon proper air circulation. The accumulation of lint can restrict this airflow. If the guidelines in this section are met, an ADC dryer will provide many years of efficient, trouble free, and most importantly, safe operation.

  • Page 34: Adjustments

    DO NOT have a grease fitting. Provisions are made in the bearing housing for the addition of a grease fitting, which can be obtained elsewhere, or from ADC by ordering kit P/N 882159 (includes two [2] fittings).

  • Page 35: Data Label Information

    When contacting American Dryer Corporation, certain AGA LABEL information is required to ensure proper service/parts information from ADC. This information is on the data label that is located on the left sidewall area behind the middle access (control) door. When contacting ADC please have the model number as well as the serial number readily available.

  • Page 36: Procedure For Functional Check Of Replacement Components

    SECTION VIII PROCEDURE FOR FUNCTIONAL CHECK OF REPLACEMENT COMPONENTS 1. Microprocessor Controller (Computer) Board Phase 7 Coin/Non-Coin Models a. Upon completing installation of the replacement microprocessor controller (computer) board, reestablish power to the dryer. b. Start the drying cycle by pressing any temperature selection keys (HI, MED, or LO). c.
  • Page 37 2. For Models with Direct Spark Ignition (DSI) Module (Type I) Theory of Operation: Start the drying cycle. When the gas burner ignites within the chosen trial for ignition time (6-seconds), the flame sensor detects gas burner flame and signals the DSI module to keep the gas valve open as long as there is a call for heat.

  • Page 38: Coin Programming

    SECTION IX COIN PROGRAMMING Accessing and Clearing Coin Vault Total Enter Programming Mode By Placing The Programming Switch On The Phase 7 Board Up Enter program mode by switching program switch (up) while no While No Cycle Is In Progress. cycle is in progress.

  • Page 39: Non-Coin Programming

    BURNER HIGH LIMIT FAULT – Burner temp. disk has opened. NON-COIN PROGRAMMING BURNER IGNITION CONTROL – No signal to gas valve from (DSI) module during trial for ignition time. DSI module is bad. IGNITION FAULT – Gas valve did not remain open after trial for ignition.
  • Page 40 For more information and pricing, contact: Phone 800.223.1376 www.equipmentmarketers.net 100 Melrose Avenue info@eqpmark.com Cherry Hill, NJ 08003 ADC Part No. 113215 12 - 02/13/17...
