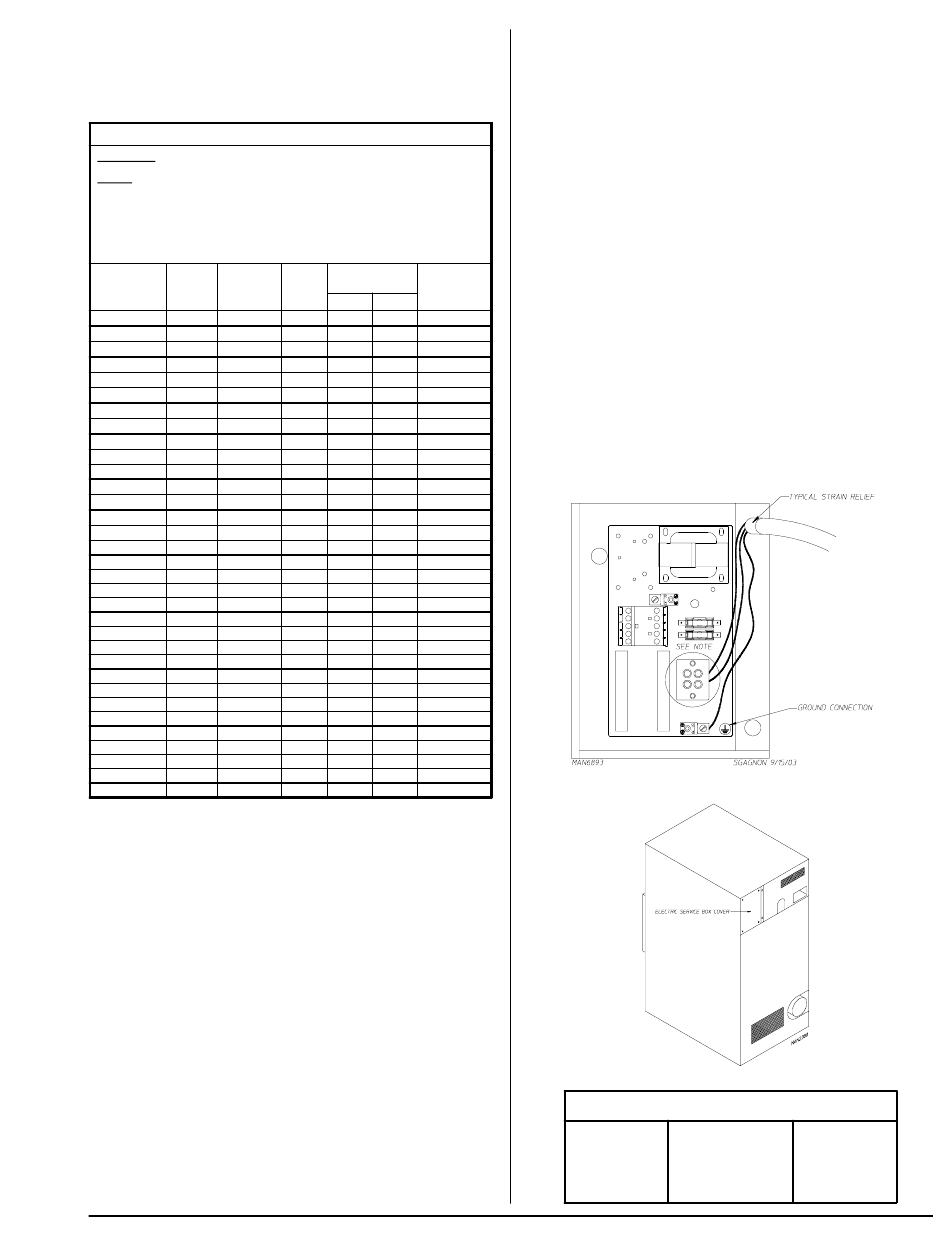

Electric Models Only
All electrically heated dryers must be connected to the electric
service shown on the dryer's data label. The connecting
wires must be properly sized to handle the rated current.
ELECTRICAL SERVICE SPECIFICATIONS
IMPORTANT: 208 VAC AND 230/240 VAC ARE NOT THE SAME. When ordering,
specify exact voltage.
NOTES: A. When fuses are used they must be dual element, time delay, current
limiting, class RK1 or RK5 ONLY . Calculate/determine correct fuse
value, by applying either local and/or National Electrical Codes to
listed appliance amp draw data.
B. Circuit breakers are thermal-magnetic (industrial) type ONLY . For
others, calculate/verify correct breaker size according to appliance
amp draw rating and type of breaker used.
C. Circuit breakers for 3-phase (3ø) dryers must be 3-pole type.
SERVICE WIRE
PHASE
VOLTAGE SERVICE
208 1ø 2
230 1ø 2
240 1ø 2
208 1ø 2
220 1ø 2
230 1ø 2
240 1ø 2
208 3ø 3
220 3ø 3
230 3ø 3
380 3ø 4
380 3ø 4
416 3ø 4
220 3ø 3
230 3ø 3
240 3ø 3
440 3ø 3
460 3ø 3
480 3ø 3
208 3ø 3
380 3ø 3
380 3ø 4 or 3
380 3ø 4
220 3ø 3
230 3ø 3
240 3ø 3
380 3ø 4 or 3
400 3ø 4 or 3
416 3ø 4 or 3
240 3ø 3
380 3ø 4 or 3
400 3ø 4 or 3
416 3ø 4 or 3
Check your national and local code for breaker and wire size
Grounding
A ground (earth) connection must be provided and installed
in accordance with state and local codes. In the absence of
these codes, grounding must conform to applicable
requirements of the National Electrical Code ANSI/NFPA NO.
70-LATEST EDITION, or in Canada, the installation must
conform to applicable Canada Standards: Canadian
Electrical Codes Parts 1 & 2 CSA C22.1-1990 or LATEST
EDITION. The ground connection may be to a proven earth
ground at the location service panel.
For added personal safety, when possible, it is suggested
that a separate ground wire (no. 18 minimum) be connected
from the ground connection of the dryer to a grounded cold
water pipe. Do not ground to a gas pipe or hot water pipe.
The grounded cold water pipe must have metal-to-metal
connection all the way to the electrical ground. If there are
any nonmetallic interruptions, such as, a meter, pump,
plastic, rubber, or other insulating connectors, they must be
jumped out with no. 4 copper wire and securely clamped to
bare metal at both ends.
113237 - 15
APPROX.
OVEN CIRCUIT
AMP DRAW
kW BREAKER
60 Hz 50 Hz
15 77 — 100
14 66 — 90
15 67 68 90
20 101 — 1.5
—
17 83 125
18.5 85 — 125
—
20 88 125
24 72 — 90
20 56 — 70
22 60 — 80
13 — 26 40
—
17 30 40
20 — 32 40
20 56 — 70
22 58 — 80
—
24 61 80
20 28 — 40
22 30 — 40
24 31 — 40
—
20 59 80
23 38 — 50
15 — 29 40
23 — 39 50
—
20 56 80
22 — 59 80
24 — 61 80
20 — 37 50
—
22 37 50
—
24 39 50
27 — 69 80
23 — 41 50
25 — 41 50
27 — 43 50
11/12/14
www.adclaundry.com
IMPORTANT: For personal safety and proper operation,
the dryer must be grounded.
Provisions are made for ground connection in each dryer at
the electrical service connection area.
Electrical Connections
A wiring diagram is located inside the control box for
connection data.
If local codes permit, power to the dryer can be made by the
use of a flexible UL listed power cord/pigtail (wire size must
conform to rating of dryer), or the dryer can be hard wired
directly to the service breaker panel. In both cases, a strain
relief must be installed where the wiring enters the dryer.
Gas and Steam Models Only
IMPORTANT: A separate protected circuit must be
provided to each dryer.
Single-Phase (1ø)
Wiring Connections / Hookup
The electrical input connections on all single-phase (1ø) gas
dryers and steam dryers are made into the rear service box
located at the upper left area of the dryer.
Single-Phase Electrical Lead Connections
White or Red
Black
+
Positive
Green
+
+
Neutral
Ground
or L2
