ADC AD-25V Installation Manual page 18

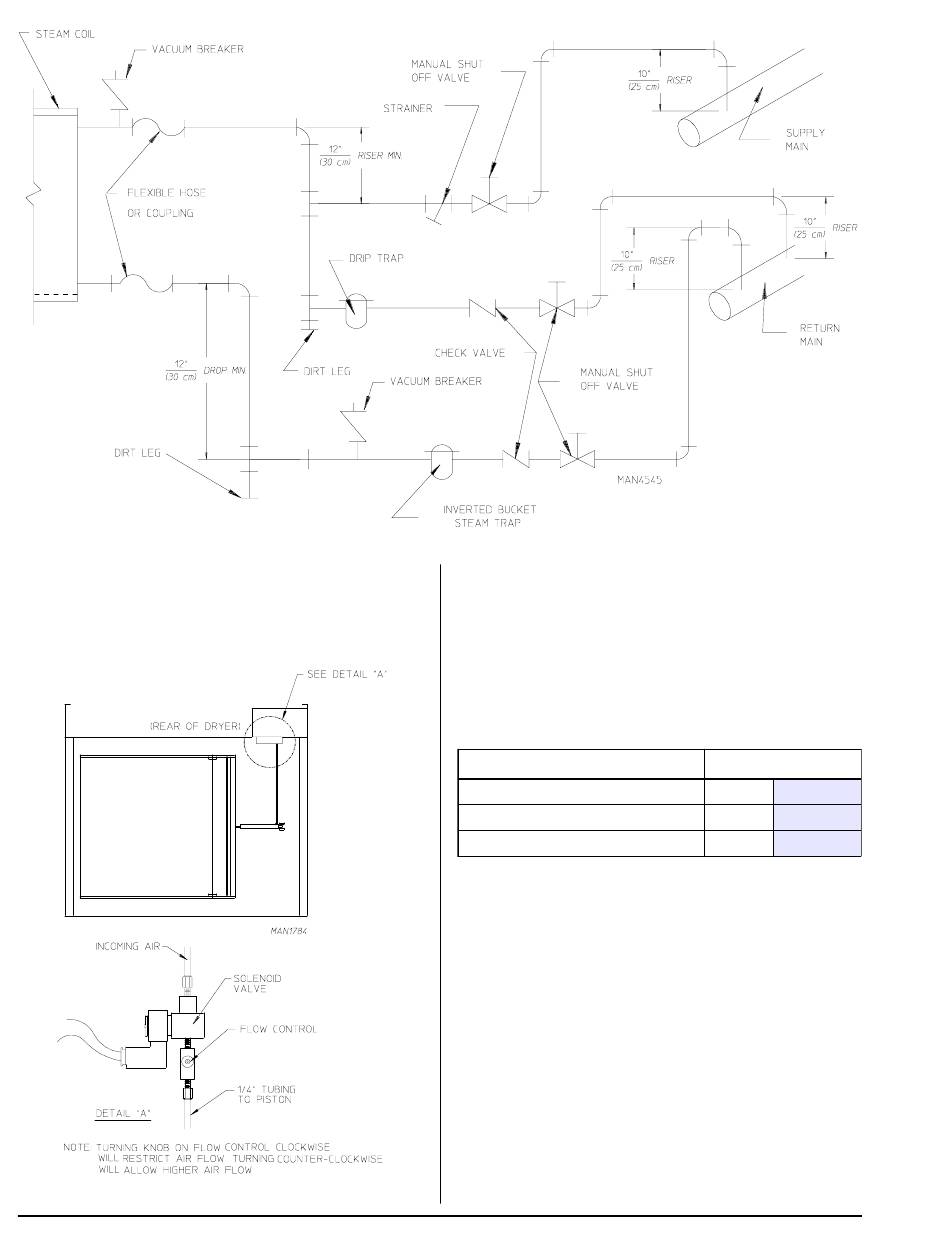

IMPORTANT: Flexible hoses/couplings must be used.
Coil failure due to hard plumbing connections will void the
warranty.
Steam Damper Air System Connections
18
This dryer is manufactured with a pneumatic (piston) damper
system, which requires an external supply of compressed
air. The air connection is made to the steam damper solenoid
valve, which is located at the rear inner top area of the dryer
just in front of the electric service relay box.
Air Requirements
There is no air requirement for dryers with the
electromechanical steam damper option.
Compressed Air Supply
Normal
Minimum Supply
Maximum Supply
Shaded areas are stated in metric equivalents
Air Connection
Air connection to system — 1/8" N.P.T.
Air Regulation
No air regulator or filtration is provided with the dryer. External
regulation/filtration of 80 psi (5.51 bar) must be provided. It
is suggested that a regulator/filter gauge arrangement be
added to the compressed air line just before the dryer
connection. This is necessary to ensure that correct and
clean air pressure is achieved.
American Dryer Corp.
Air Pressure
80 psi 5.51 bar
4.82 bar
70 psi
6.21 bar
90 psi
113237 - 15
