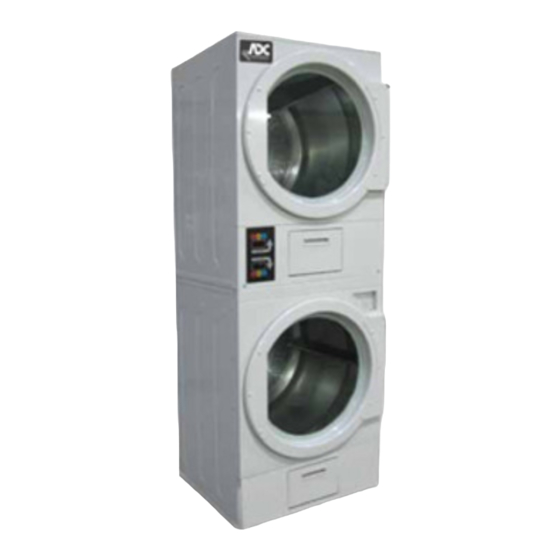

Installation/Operator Manual
WARNING: For your safety the information
in this manual must be followed to
minimize the risk of fire or explosion and
to prevent property damage, personal
injury or death.
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch any electrical switch;
do not use any phone in your
building.
Clear the room, building or area of
all occupants.
Immediately call your gas supplier
from a neighbor's phone. Follow
the gas supplier's instructions.
If you cannot reach your gas
supplier, call the fire department.
— Installation and service must be
performed by a qualified installer, service
agency or the gas supplier.
AD222
AVERTISSEMENT: Assurez-vous de bien
suivre les instructions données dans cette
notice pour réduire au minimum le risque
d'incendie ou d'explosion ou pour éviter
tout dommage matériel, toute blessure ou
la mort.
—Ne pas entreposer ni utiliser d'essence
ni d'autres vapeurs ou liquides
inflammables à proximité de cet
appareil ou de tout autre appareil.
—QUE FAIRE SI VOUS SENTEZ UNE
ODEUR DE GAZ:
Ne pas tenter d'allumer d'appareils.
Ne touchez à aucun interrupteur. Ne
pas vous servir des téléphones se
trouvant dans le bâtiment.
Évacuez la pièce, le bâtiment ou la
zone.
Appelez immédiatement votre
fournisseur de gaz depuis un voisin.
Suivez les instructions du fournisseur.
Si vous ne pouvez rejoindre le
fournisseur de gaz, appelez le service
des incendies.
—L'installation et l'entretien doivent être
assurés par un installateur ou un
service d'entretien qualifié ou par le
fournisseur de gaz.
American Dryer Corporation
Telephone: +1 (508) 678-9000 / Fax: +1 (508) 678-9447
e-mail: techsupport@amdry.com
88 Currant Road
Fall River MA 02720-4781 USA
www.adclaundry.com
ADC Part No. 112217-4
Advertisement
Table of Contents
Related Manuals for ADC AD222
Summary of Contents for ADC AD222
- Page 1 American Dryer Corporation 88 Currant Road Fall River MA 02720-4781 USA Telephone: +1 (508) 678-9000 / Fax: +1 (508) 678-9447 e-mail: techsupport@amdry.com www.adclaundry.com ADC Part No. 112217-4...
- Page 2 Replacement parts can be obtained from your reseller or the ADC factory. When ordering replacement parts from the factory, you can FAX your order to ADC at +1 (508) 678-9447 or telephone your order directly to the ADC Parts Department at +1 (508) 678-9000. Please specify the dryer model number and serial number in addition to the description and part number, so that your order is processed accurately and promptly.
-
Page 3: Table Of Contents
WARNING In the State of Massachusetts, the following installation instructions apply: Proposition 65 Installations and repairs must be performed by Use of this product could expose you to substances a qualified or licensed contractor, plumber, or from fuel combustion that contain chemicals gasfitter qualified or licensed by the State of known to the State of California to cause cancer, Massachusetts. -
Page 4: Safety Precautions
Safety Precautions ____________________ WARNING WARNING Do not use heat for drying articles that contain plastic, foam, sponge rubber, or similarly textured rubber For your safety, the information in this manual must materials. Drying in a heated tumbler may damage be followed to minimize the risk of fire or explosion plastics or rubber and also may be a fire hazard. - Page 5 IMPORTANT: The dryer must be installed in a location/ environment, which the ambient temperature remains NOTES _____________________________________________________ between 40° F (4.44° C) and 130° F (54.44° C). ____________________________________________________________ The operation of this appliance may affect the operation of other types of gas appliances, which take their air for safe ____________________________________________________________ combustion from the same room.
-
Page 6: Specifications
Specifications _____________________________________________________________________ 9.98 kg MAXIMUM CAPACITY 22 lb (DRY WEIGHT) PER POCKET TUMBLER DIAMETER 25-3/4” 65.41 cm TUMBLER DEPTH 24-3/4” 62.86 cm 212.38 L TUMBLER VOLUME 7-1/2 cu ft PER POCKET TUMBLER/DRIVE MOTOR 1/3 hp 0.25 kW PER POCKET BLOWER/FAN MOTOR BLOWER DRIVEN BY TUMBLER MOTOR PER POCKET DOOR OPENING... - Page 7 Specifications _____________________________________________________________________ NOTE: The manufacturer reserves the right to make changes in specifications at any time without notice or obligation. 112217 - 4 www.adclaundry.com...
-
Page 8: Installation Procedures
Installation Procedures ______________ Unpacking / Setting Up _______________ Installation should be performed by competent professional Remove protective shipping material (i.e., plastic wrap and in accordance with local, state, and country codes. In the optional shipping box) from the dryer. absence of these codes, the installation must conform to applicable American National Standards: ANSI Z223.1- IMPORTANT: Dryer must be transported and handled in LATEST EDITION (National Fuel Gas Code) or ANSI/NFPA... -
Page 9: Fresh Air Supply Requirements
It is not necessary to have a separate make-up air opening for each dryer. Common make-up air openings are acceptable. However, they must be set up in such a manner that the make-up air is distributed equally to all the dryers. EXAMPLE: For a bank of 4 dryers, 2 unrestricted openings measuring 11-inches by 11-inches (27.94 cm by 27.94 cm) A = 10-inches (25.4 cm) - Page 10 NOTE: When the exhaust ductwork passes through a wall, The length of the ductwork from the dryer to the outside ceiling, or roof made of combustible materials, the exhaust outlet, must not exceed 12 feet (3.66 meters). The opening must be 2-inches (5.08 cm) larger than the duct minimum diameter of this ductwork must be at least (all the way around).
-
Page 11: Electrical Information
Electrical Information ________________ CAUTION: This unit has two power cords. Connect each plug to a receptacle that is connected to an Electrical Requirements individual branch circuit. Unplug both cords before moving or servicing this appliance. All electrical connections must be made by a properly licensed and competent electrician. -
Page 12: Gas Information
Electric Models Only If local codes permit, power to the dryer can be made by the use of a flexible UL listed power cord/pigtail (wire size must All electrically heated dryers must be connected to the conform to rating of dryer), or the dryer can be hard wired electric service shown on the dryer’s data label. - Page 13 Piping / Connections IMPORTANT: Failure to comply with these codes or ordinances, and/or the requirements stipulated in this The dryer is provided with two 3/8” N.P.T. inlet pipe manual, can result in personal injury and improper connections (1 for each tumbler) at the rear of the dryer. If a operation of the dryer.
-
Page 14: Converting From One Family Of Gas To Another
LPG. The use of gas valve kit (ADC P/N 140414) disables the internal regulator of the Reinstall the burner tube onto the burner base. gas valve. Therefore, the gas supply is ungoverned and an external regulator must be provided at the source of the Use a flat screwdriver to remove the regulator vent cap. - Page 15 Repeat these steps for the other burner. * This includes one for each pocket (tumbler). ** Refer to page 14 for orifice (injector) size. Affix L.P. Conversion Label (ADC P/N 114515) to the dryer’s data label. Instructions Complete L.P. Kit Conversion Confirmation Label (ADC P/N Disconnect electrical power to the dryer.
-
Page 16: Preparation For Operation / Start-Up
Preparation for Operation / Start-Up__ Gas Pressure Adjustment Disconnect electrical power to the dryer. The following items should be checked before attempting to operate the dryer: IMPORTANT: The following procedures must be • Read all “CAUTION,” “WARNING,” and “DIRECTION” performed on both top and bottom tumblers. labels attached to the dryer. -
Page 17: Preoperational Instructions
Electrical Dryers NOTE: The dryer can be stopped at any time by opening the main door or the lint door. Check to ensure that electric oven/contactor assembly is activating. When the programmed drying time has expired, the non- coin microprocessor controller (computer) will proceed into Safety Related Circuits the Cool Down Cycle. -
Page 18: Warranty
Clean any lint accumulation in and around the motor(s) Shipping charges are not the responsibility of ADC. All casing opening. returns should be “prepaid” to the factory. Any “C.O.D.” or “COLLECT” returns will not be accepted. -
Page 19: Data Label Information
Complete an operational check of all safety devices (lint door/drawer switch, door switches, sail switch, and hi-limit thermostats). When contacting ADC, the information on the data label is required to ensure proper service/parts assistance. The Data Label Information ________________ data label is located at the upper left rear of the dryer behind the back guard. - Page 20 ADC Part No. 112217 4 - 05/05/15...
