360 Vision Predator Ultra Installation & Configuration Manual page 21

Predator Installation Manual V10_1_29_00
Ethernet connections between Predator PSU and Predator that is fitted with HMA.
The Ethernet connection uses standard CAT5e or CATS cables fitted with
Gain access to connectors in the HMA
• Ensure that the fixed part of the HMA is securely bolted to the top of the pole.
• The hinged part of the HMA (Hinged Mount Adapter) is fastened to the fixed part using three M8X2S long hex head bolts.
Use a spanner (13mm) to remove the three bolts. Each bolt is fitted with a split spring lock washer (which prevents the split
washer from damaging the fiber washer) and a fiber washer (which prevents the paint on the hinged part from being
damaged unnecessarily.
• Open the hinge taking care that the gasket i s not damaged and support the weight of the Predator. Gently open the
HMA until the lanyard is able to take the weight. If the lanyard appears to support the weight of the Predator, there is no
need to continue to support the Predator. The connection circuit board
(PCB-000-0262-
xx) Can now be seen.
Please make sure there is adequate spare cable (20cm) for when the camera is resting on the
this could damage the connector circuit board.
CATS, Ca15e, CAT6 Cable
RJ45
White with Orange Band
Pin 1
Pin2 Orange
Pin 3
White with Green Band
Pin4
Pin 5 White with Blue Band
Pin6
Pin 7 White with Brown Band
Pin 8 Brown

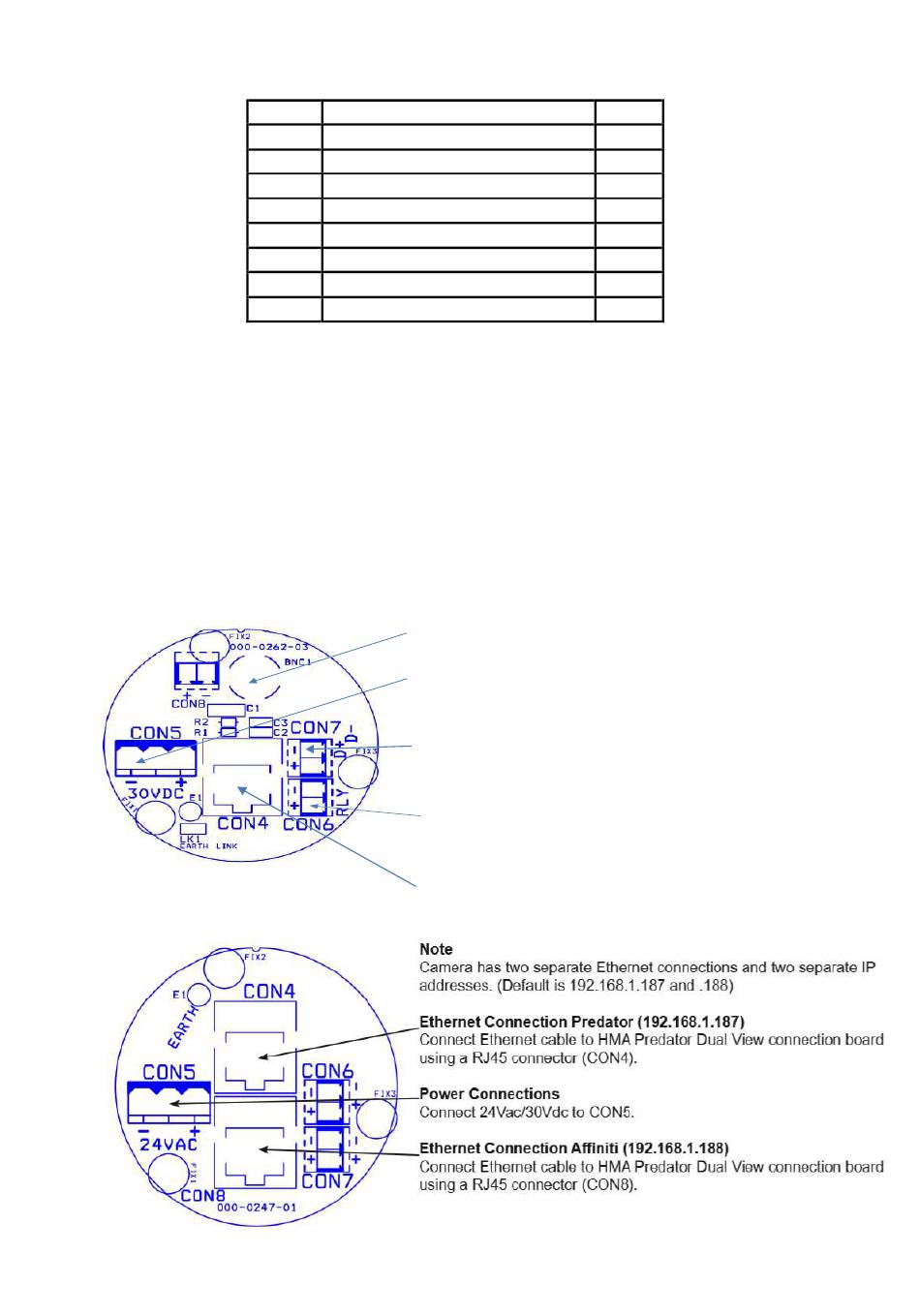

Analogue Camera output
Use BNC for analogue video output
Power Connection
Connect Power to CONS (22-28VAC - 22-36VDC)
RS485 Connection
Use CON7 to connect the RS48S twisted pair
Washer Connection
(If feature is present) Use CON6 to connect washer signal to Predator
washer PSU (PCB-000-0240-xx) CON9
Ethernet Connections
Connect Ethernet cable to HD HMA Predator connection board using
a RJ45 connector (CON4)
© 360 Vision Technology Ltd
Signal
Tx+
Tx-
Rx+
Blue
Green
Rx-
Page 21 of 56
RJ4S
connectors
data.
lanyard, failure to do
