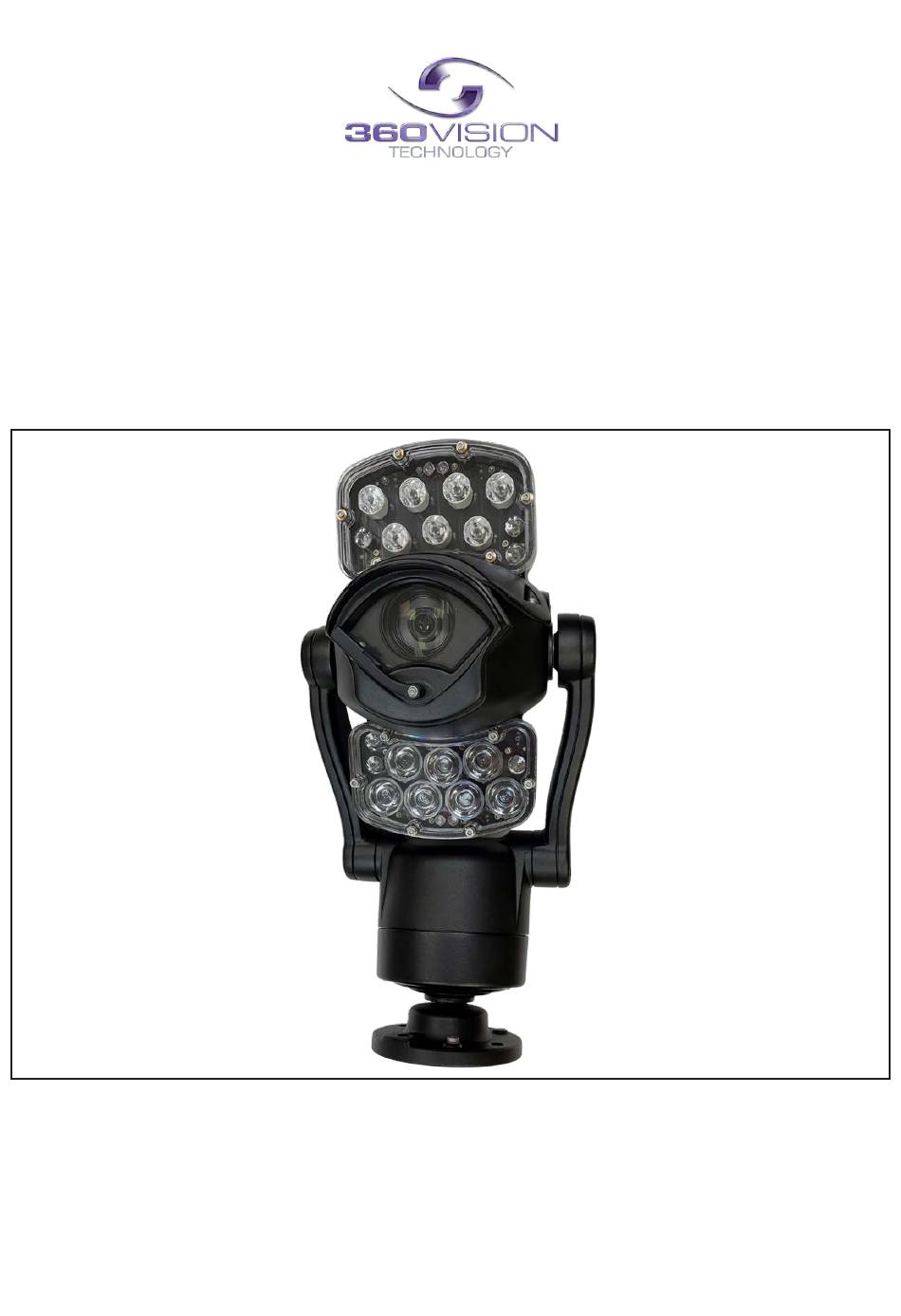

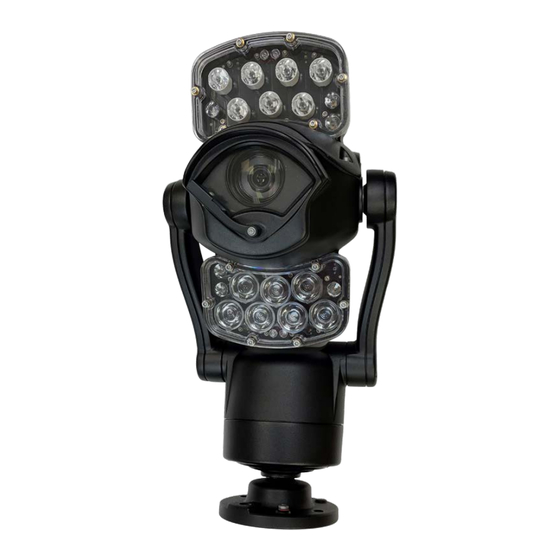

Predator Installation Manual V2.3.00.29.3
Page 1
Predator
(HD/IP & HD/IP with Analogue)
Installation/Configuration Manual
© 360 Vision Technology Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Predator and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for 360 Vision Predator

Summary of Contents for 360 Vision Predator

  • Page 1 Predator Installation Manual V2.3.00.29.3 Page 1 Predator (HD/IP & HD/IP with Analogue) Installation/Configuration Manual © 360 Vision Technology Ltd.

  • Page 2: Table Of Contents

    Predator Installation Manual V2.3.00.29.3 Page 2 Table of Contents 1 Quick Start Guide Predator ‘Coastal’ installations..................3 2 Photo-Biological Safety ..........................6 3 Quick Start Guide Secure By Default ......................7 4 Safety and Precautions ..........................10 5 Housing Dimensional Drawing ......................... 10 6 Bracket Dimensional Drawing ........................

  • Page 3: Quick Start Guide Predator 'Coastal' Installations

    Predator Installation Manual V2.3.00.29.3 Page 3 1 Quick Start Guide Predator ‘Coastal’ installations. This is meant as a quick installation guide to help the installation process, for more information For ‘Coastal’ Painted Cameras - Please Note The Following: • Where 360-Vision Technology camera units are installed at or near coastal areas •...
  • Page 4 Browser Connection possible via Safari, Firefox, MS Edge and IE – 1 second video update is standard via browsers – For real time video on setup, please use dedicated stand-alone apps • Default Predator settings set to ‘enhanced low light’ with Aperture set to 10 and Exposure Offset set to +10dB. •...
  • Page 5 Predator Installation Manual V2.3.00.29.3 Page 5 • Please Note Default ‘Night Illumination’ is set to ‘None’ if you require the IR Lamps to come on when the camera switches to mono this setting will need to be changed to ‘IR’...

  • Page 6: Photo-Biological Safety

    Predator Installation Manual V2.3.00.29.3 Page 6 2 Photo-Biological Safety Lighting options • IR, IRWL • The lighting options listed above fulfil the requirements for photo-biological safety according to IEC/EN 62471 (Risk Group 1) • Avoid prolonged eye exposure, do not stare at operating lamp Lighting option •...

  • Page 7: Quick Start Guide Secure By Default

    Predator Installation Manual V2.3.00.29.3 Page 7 3 Quick Start Guide Secure By Default Browse to the default web page 192.168.1.187 using a web browser with a cleared cache, then enter a username and an 8-digit password then repeat the password, click login:- A very weak password option will then give the option to proceed by selecting ‘NO’...
  • Page 8 Predator Installation Manual V2.3.00.29.3 Page 8 On the ‘Basic Setup’ screen put a tick in the ‘Full Setup’ box and click OK:- Then select ‘Yes’ to enable the full setup:- A full camera browser page will then load with all the tab options to the left, no live video will be displayed until the next step.
  • Page 9 ONVIF Enabled = Enables ONVIF Stream. SDK Enabled = Enables 360 SDK options. WARNING: FAILURE TO REMEMBER THE CORRECT PASSWORD WILL RESULT IN THE UNIT BEING RETURNED TO 360 VISION TECHNOLOGY TO BE RESET, INCURRING A COST. © 360 Vision Technology Ltd.

  • Page 10: Safety And Precautions

    6. 360 Vision Technology Limited accept no liability for any damage caused by incorrect or improper installation. 7. To prevent risk of injury caused by the Predator or mounting options becoming detached, fit a suitable safety chain or lanyard.
  • Page 11 9mm (x4) ON 101.6mm PCD Weight 6kg MOUNTING BASE 01 280621 FIRST ISS VIEW ON BOTTOM FACE ISS DATE REFEREN Predator HMA with large lamps SCALE: SHEET: MATERIAL: FINISH: NAME: DATE : DESCRIPTION THIS DRAWING AND ALL COPIES ARE 0.167...
  • Page 12 9mm (x4) ON 101.6mm PCD Weight 6.5kg MOUNTING BASE 01 280621 FIRST ISSUE VIEW ON BOTTOM FACE ISS DATE REFERENC Predator HMA with dual small lamps SCALE: SHEET: MATERIAL: FINISH: NAME: DATE : DESCRIPTION THIS DRAWING AND ALL COPIES ARE 0.167...
  • Page 13 Predator Installation Manual V2.3.00.29.3 Page 13 Predator with dual small lamps and a thermal core 24mm 10mm (x4) ON MOUNTING BASE 101.6mm PCD 460mm PAN SWEEP SCALE 0.3 VIEW ON BOTTOM FACE 250mm 125mm TILT SWEEP SCALE 0.3 Weight 8kg...

  • Page 14: Bracket Dimensional Drawing

    Predator Installation Manual V2.3.00.29.3 Page 14 6 Bracket Dimensional Drawing 9.5 (x4) ON 101.6 (4") PCD CAMERA BASE SCALE 0.4 M8 (x8) x 15 DEEP ON 101.6 (4") PCD M5x10 DEEP 45° (LANYARD) Weight 1kg (65) 240717 SHEET 4 ADDED...

  • Page 15: Connections

    It is important that the water should not be allowed to pool around the connector, as this will increase the risk of contamination and corrosion which may cause poor connections. The connector on the base of the Predator ULTRA is rated IP68, when it is correctly connected and the locking ring is tight.
  • Page 16 PRED-PSU-SM_HDProv5 Use pre-made cable PRED-3M, PRED-10m, PRED-25m or PRED-40m to connect to the Predator camera. This PSU is compatible with the following products: HD/IP PREDATOR NON-HMA SAFETY: Isolate mains supply while installing. FIXING: Securely fix the PSU with suitable fixings.
  • Page 17 PRED-PSU-SM_AProv5 Use pre-made cable PRED-3M, PRED-10m, PRED-25m or PRED-40m to connect to the Predator camera. This PSU is compatible with the following products: ANALOGUE PREDATOR NON-HMA SAFETY: Isolate mains supply while installing. FIXING: Securely fix the PSU with suitable fixings.
  • Page 18 0VDC (-) Enclosure Dimensions MAINS input 255 x 180 x 100mm 100 - 240VAC PRED-PSU-SM-HMA_v6 This PSU is compatible with the following products: PREDATOR with HMA MAINS FUSE MAINS FUSE = 2AT SAFETY: Isolate mains supply while installing. FIXING: Securely fix the PSU with suitable fixings.
  • Page 19 Predator. be connected. FUSES PRED-XALARM-PSU-SM-HD FUSE 1 = 4AT FUSE 2 = 1AT This PSU is compatible with the following products: HD/IP PREDATOR WITH ALARMS FUSE 3 = 2AT FUSE 4 = N/A SAFETY: Isolate mains supply while installing. FIXING: Securely fix the PSU with suitable fixings.

  • Page 20: Standalone Alarmcard Setup

    When all alarms inputs are inactive the alarm timer starts. After the timer expires, the Alarm PCB sends a command to the Predator to end the ‘alarm mode’ and the Predator will return to the status position and action that had been saved when first alarm became active.
  • Page 21 Predator Installation Manual V2.3.00.29.3 Page 21 Dil Switch Settings Address 1 to 128 range See below Dil Switch Settings Normally Open Contacts Normally Closed Contacts (un-used inputs must be connected to common) RS485 Address Settings Switch is shown as white.
  • Page 22 Predator Installation Manual V2.3.00.29.3 Page 22 CON4 Settings CON4 Protocol Settings 360 Vision Off Off Off Off Pelco D 9600 baud On Off Off Off Pelco D 4800 baud Off On Off Off Pelco D 2400 baud On On Off Off...
  • Page 23 Use pre-made cable 100 - 240VAC PRED-3M, PRED-10m, PRED-25m or PRED-40m to connect to Predator. This PSU is compatible with the following products: HD/IP PREDATOR NON-HMA WITH WASHER SAFETY: Isolate mains supply while installing. FIXING: Securely fix the PSU with suitable fixings.
  • Page 24 255 x 180 x 100mm MAINS input 100 - 240VAC MAINS FUSE = 2.5AF PRED-POE-PSU_V5 This PSU is compatible with the following products: POE HD/IP PREDATOR SAFETY: Isolate mains supply while installing. FIXING: Securely fix the PSU with suitable fixings.

  • Page 25: Predator Washer/Nozzle Bracket

    The PVC tube should weave through the two slots in the bracket to provide strain relief. Cable ties can be used to secure the tube so that it is clear of the Predator’s rotating body. Take care that the cable ties do not cause excessive restriction of the tube.

  • Page 26: Connections To Predator With Hma

    Page 26 9 Connections to Predator with HMA When the HMA (Hinged Mount Adaptor) is fitted to the Predator, the ‘Predator Composite Cable’ is not used. Connections between the power supply and Predator use conventional cables as detailed below. 36VDC Power connections between Predator PSU and Predator that is fitted with HMA...

  • Page 27: Ethernet Connection

    Note: No longer supports AC power. RS485 Connection (If fitted). Use CON7 to connect the RS485 twisted pair data. Washer Connection. Use CON6 to connect washer signal to Predator washer PSU (PCB-000-0240-xx) CON 9 Ethernet Connections Connect Ethernet cable to HD HMA Predator connection board using a RJ45 connector (CON4).
  • Page 28 Predator Installation Manual V2.3.00.29.3 Page 28 Predator Analogue Installation/Configuration Section © 360 Vision Technology Ltd.

  • Page 29: Basic Twisted Pair/Rs485 Data Wiring

    Install the software (Predator-issued-120521-1-installer.exe) on the laptop being used. Connect the RS485 end of the cable fitted with a 3 way connector to the Predator RS485. Run the utility on the laptop and then connect the USB end of the cable into the laptop. The utility will then search for new comms ports and then will look for the camera across all baud rates used.

  • Page 30: Predator Osd

    Predator Installation Manual V2.3.00.29.3 Page 30...

  • Page 31: Osd Operation/Navigation

    Define Tour A tour of presets is stored in the Predator as a list of tour points. Each tour point consists of a preset number, the dwell time for which the Predator will pause and the speed parameter that will be used to seek the preset.
  • Page 32 • White When Alarm - Set if white lights are to be used if an alarm is triggered. This feature works with 360 Standalone alarm-card or 360 Vision Matrix only. • White Timeout - Use if a white light timer is required. Default is on.
  • Page 33 Predator Installation Manual V2.3.00.29.3 Page 33 Set-Up • Auto Flip - Use this option to set how the camera behaves when full tilt down is reached. Semi - Requires a second tilt down command when at full tilt down to spin camera 180°.
  • Page 34 Factory Reset - This will reboot the camera and all the settings will be lost. • Predator Software Version - This shows the software version of the camera. Privacy Zone Menu Can be used to obscure a scene within an image e.g. private residence. Move the camera to the position required for the privacy zone before going into the camera OSD.
  • Page 35 Predator Installation Manual V2.3.00.29.3 Page 35 Predator HD/IP Installation/Configuration Section © 360 Vision Technology Ltd.

  • Page 36: Locating The Predator On Your Network

    360 Event 9001 TCP 15 Connecting to the Predator Type in the IP address of the Predator into the address bar of a web browser. The web page of the camera will then appear. Predator Web Page Login screen See Secure By Design setup (See page 7 for initial set-up).
  • Page 37 Predator Installation Manual V2.3.00.29.3 Page 37 If you select the box ‘Remember Password’ it could compromise the security of the Predator HD camera. Select Login The web page will show MJPEG images (See Browser - page 57). © 360 Vision Technology Ltd.

  • Page 38: Live View

    Predator Installation Manual V2.3.00.29.3 Page 38 There are six main tabs on the left of the web page/screen. 1 Live View 2 Settings 3 Add/Edit Users 4 Maintenance 5 Browser 6 Logout 15.1 Live View 15.1.1 Live Video The Live Video page offers options to:- •...

  • Page 39: Status

    Predator Installation Manual V2.3.00.29.3 Page 39 15.1.2 Status Status page shows information relating to the camera status. Status page, top section. Status page, bottom section. © 360 Vision Technology Ltd.

  • Page 40: Recording Browser

    15.1.3 Recording Browser Only available on Edge Recording Predator Recording browser web page offers access to files loaded onto the storage device. This includes recordings which can be filtered to show specific requirements.

  • Page 41: Settings

    Predator Installation Manual V2.3.00.29.3 Page 41 15.2 Settings 15.2.1 Video The Video page,offers options to setup:- • Camera - Add or edit the camera name. • CODEC - Choose which compression format, the stream will use. • Resolution - Set what resolution the stream will use.

  • Page 42: Video Advanced

    Concurrent Uni/Multicast - Enable to allow concurrent unicast/multicast streams. RTSP protocols allow ‘multicast’ or ‘unicast’ transmission. In addition to the ‘multicast’ feature being available on the Predator, the ‘multicast’ feature must also be available on the receiving device. © 360 Vision Technology Ltd.
  • Page 43 If the receivers of the video streams are suitable for using ‘multicast’ and the video streams will all have the same format, then it may be possible to use ‘multicast’. In this mode, the CODEC in the Predator chooses a ‘new UDP address’...

  • Page 44: Advanced Features

    Predator Installation Manual V2.3.00.29.3 Page 44 15.2.3 Advanced Features The Advanced Features page, offers options to:- • Camera - Cannot be edited, shows label/name given to the camera. (See section Video - Camera - page 41). A ‘Preset’ is a stored view. When a preset is defined, it will store the pan, tilt, zoom, focus and iris positions. Use the up, down left and right buttons to move the camera to the desired position and then use the zoom buttons to set the image as required.
  • Page 45 Preset Tour A tour of presets is stored in the Predator as a list of tour points. Each tour point consists of a preset number, the dwell time for which the Predator will pause and the speed parameter that will be used to seek the preset.

  • Page 46: Camera

    Auto Focus/Iris on PTZ - Auto focus/iris will activate when PTZ is used, can be switched off. Default is • Fast Shutter - Select fast shutter if using the Predator camera on a ANPR system. Default is off. (See page 59 for table of options).
  • Page 47 Predator . The maximum amount of picture stability is achieved for all zoom settings. The part of the picture that is wasted reduces the resolution of the viewed picture when the camera is set to 1080P and steady shot is selected.

  • Page 48: Date/Time

    Auto Dimming - When selected the camera will reduce the lamp power, when looking in scenes where there is to much light. OK to program the new settings into the Predator . Cancel to abandon the changes to the settings.

  • Page 49: Network

    • Time Zone Time Zone - Select time zone to suit the location of the camera/system. • OK to program the new settings into the Predator . Cancel to abandon the changes to the settings. 15.2.6 Network • Camera - Cannot be edited, shows label/name given to the camera.
  • Page 50 Authentication - Tick to enable 802.1x. Options to choose MD5 or TLS and add username/password. SNMP • Enabled - Enable SNMP OK to apply the new settings into the Predator. Cancel to abandon the changes to the network settings. © 360 Vision Technology Ltd.

  • Page 51: Interfaces

    Predator Installation Manual V2.3.00.29.3 Page 51 15.2.7 Interfaces Camera - Cannot be edited, shows label/name given to the camera. • (See section Video - Camera - page 41). Auxiliary Functions Allows the camera to be configured to use ONVIF Auxiliary commands.

  • Page 52: Recording

    Media Version - Media 1 – Media 2 with Media 1 profiles – Media 2. • Relay Output Control - Disabled – Force Night Mode. OK to apply the new settings into the Predator . Cancel to abandon the changes to the settings. 15.2.8 Recording Only available on Edge Recording ©...
  • Page 53 (See Recording browser - page 40). Lifetime - Recording schedule will stop after this period. • Schedule Screen Schedule Screen OK to apply the new settings into the Predator. Cancel to abandon the changes to the recording settings. © 360 Vision Technology Ltd.

  • Page 54: Audio

    Select - Used to select all the files or none from the list. • Delete - Used to delete the selected file. OK to apply the new settings into the Predator. Cancel to abandon the changes to the audio settings. © 360 Vision Technology Ltd.

  • Page 55: Add/Edit Users

    Care must be taken, when changing the admin password. Under Secure by Default specification, there is no facility to reset a forgotten admin password. If password is forgotten, the only solution is return to 360 Vision Technology. Please remember password used.
  • Page 56 The Predator camera will re-boot once the update has been performed. DO NOT interfere with this process as it may stop the camera from working. Contact 360 Vision Technical Support for the link to the update application & codec update files. Update Screen OK to apply the new settings into the Predator.

  • Page 57: Browser

    Predator from the network and control it locally using a network connection to a laptop so that the IP address can be set to a suitable setting before the Predator is reconnected to the main network.

  • Page 58: Special Presets

    When the Predator is installed in areas where there is a high risk of damage from birds or their droppings, additional precautions and measures should be used to keep the birds away from the Predator e.g. fit anti-bird spikes.

  • Page 59: Storage And Handling

    Predator should be handled with care and must not be dropped. When Predator are inside the transit packaging which is used for despatch from the factory, they should not be stacked to a height of more than two Predator. When Predator are being stored before installation they should be kept in the transit packaging and located in a dry indoor environment preferably between 1°C and 35°C which is dry and dust free.
  • Page 60 Predator Installation Manual V2.3.00.29.3 Page 60 © 360 Vision Technology Ltd.
