Connections - 360 Vision Predator Ultra Installation & Configuration Manual

Predator Installation Manual V10_1_29_00

3 Connections

PRED-PSU-SM

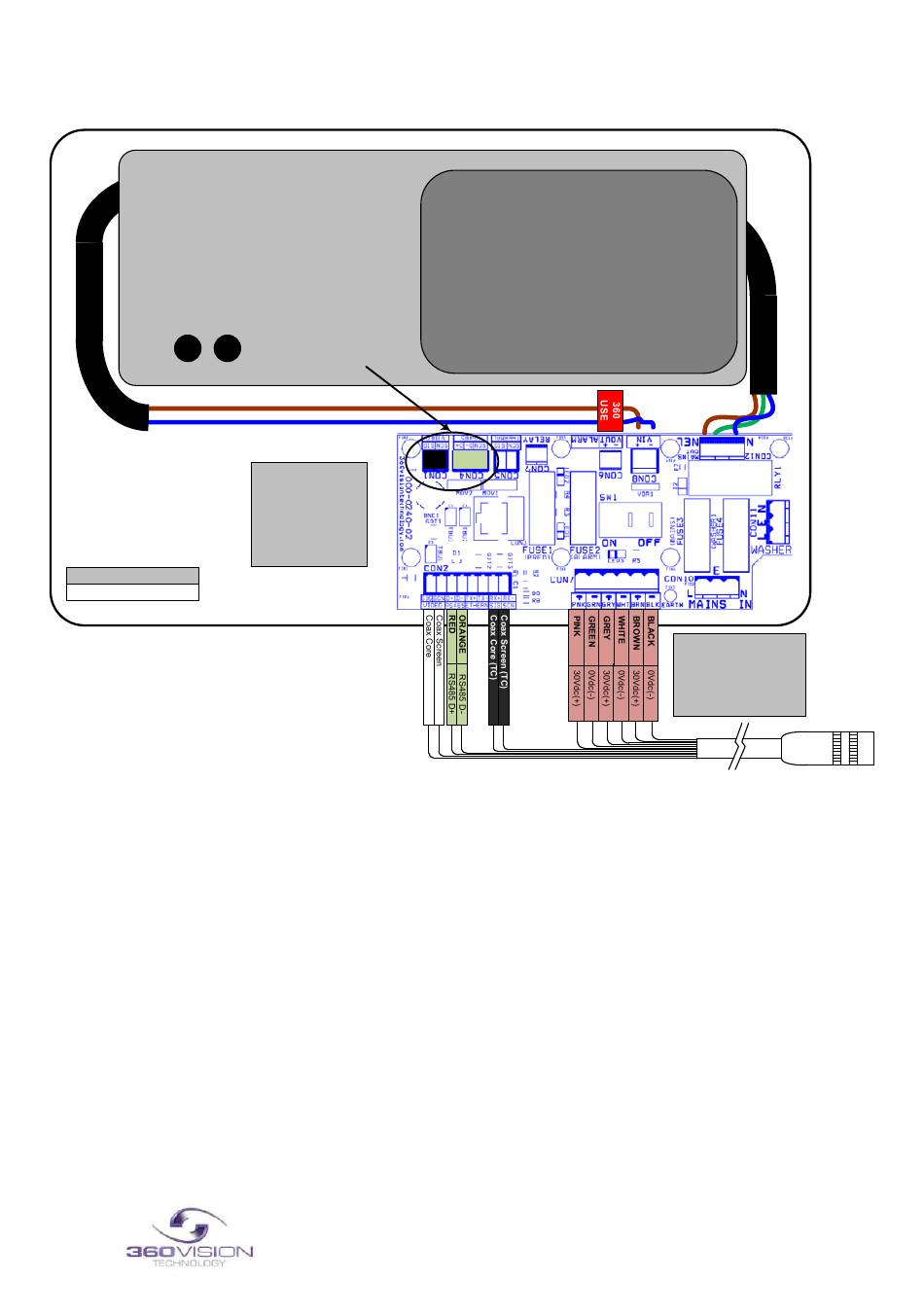

Analogue Version Wiring
Io
Adj
Enclosure Dimensions
255 x 180 x 100mm
This PSU is compatible with the following products: ANALOGUE PREDATOR NON-HMA
SAFETY: Isolate mains supply while installing.
FIXING: Securely fix the PSU with suitable fixings.
GLANDS: Face downwards, unused glands must be sealed.
ELECTRICAL CONNECTIONS:
MAINS INPUT 100-240Vac
L=LIVE (BROWN) 100-240Vac 50/60Hz
E=EARTH (GREEN/YELLOW)
N=NEUTRAL (BLUE)
SAFETY: ENSURE MAINS INPUT AND EARTH CONNECTIONS ARE SECURELY CONNECTED AND STRAIN
RELIEVED.
FUSE PROTECTION: Mains input fuse 2AF.
360Vision Technology, 7 Seymour Court Manor Park, Runcorn, Cheshire, WA7 1SY, Tel +44 (0)1928 570000.
PRED-PSU-SM Safety and Installation Sheet
Vo
Adj
To Analogue
Controller
OUTPUT FUSE
PRED-PSU-SM
FUSE 1 = 6.3AT
FUSE 2 = 1AT
FUSE 4 = N/A
Use pre-made cable PRED-3M,
PRED-10m, PRED-25m or
PRED-40m to connect to the
Predator camera.
Connecting the mains power.
www.360visiontechnology.com
© 360 Vision Technology Ltd
Model Number: PRED-PSU-SM-HMA
Serial Number: yymmndd-xxxx
Input Voltage: 100 – 240V AC 50/60Hz
Input Current: 2.1A
Output Voltage: 30V DC
Output Current: 6.2A
360Vision Technology, 7 Seymour Court Manor Park, Runcorn,
Cheshire, WA7 1SY, Tel +44 (0)1928 570000.
www.360visiontechnology.com
Page 11 of 56
MAINS FUSE
PRED-PSU-SM
MAINS FUSE 3 = 2AF
